9SNJ | pdb_00009snj

Mus musculus acetylcholinesterase in complex with N-(2-methoxybenzyl)-2-(1-methyl-1H-indol-3-yl)ethan-1-amine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:
    0.203 (Depositor), 0.207 (DCC)
  • R-Value Work:
    0.179 (Depositor), 0.181 (DCC)
  • R-Value Observed:
    0.180 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9SNJ

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Potent and selective indole-based inhibitors targeting disease-transmitting mosquitoes.

Rajeshwari, R.Duvauchelle, V.Lindgren, C.Stangner, K.Knutsson, S.Forsgren, N.Ekstrom, F.Kamau, L.Linusson, A.

(2026) RSC Med Chem 17: 1166-1186

  • DOI: https://doi.org/10.1039/d5md00797f
  • Primary Citation Related Structures:
    9SND, 9SNJ

  • PubMed Abstract:

    Vector control with insecticides is an important preventive measure against mosquito-borne infectious diseases, such as malaria and dengue. The intensive usage of few insecticides has resulted in emerging resistance in mosquitoes, and unwanted off-target toxic effects. Therefore, there is great interest in alternative active ingredients. Here, we explore indole-based compounds as selective inhibitors against acetylcholinesterase 1 (AChE1) from the disease-transmitting mosquitoes Anopheles gambiae ( An. gambiae , Ag AChE1) and Aedes aegypti ( Ae. aegypti , Ae AChE1) as potential candidates for future insecticides used in vector control. Three sets of compounds were designed to explore their structure-activity relationship, and investigate their potentials regarding potency and selectivity. 26 indole-based compounds were synthesized and biochemically evaluated for inhibition against Ag AChE1, Ae AChE1, and human AChE ( h AChE). The compounds were shown to be potent inhibitors against AChE1, and selective for AChE1 over h AChE. N -Methylation of the indole moiety clearly increased the inhibition potency, and a bulkier benzyl moiety improved the selectivity. X-ray crystallography shows that the inhibitors bind at the bottom of the active site gorge of mouse AChE ( m AChE), while molecular dynamics simulations revealed different binding poses in m AChE and Ag AChE1. Four potent and selective inhibitors were subjected to in vivo mosquito testing. Topical application showed strong insecticidal effects on An. gambiae and Ae. aegypti , highlighting this compound class as an interesting alternative for future insecticide research.


  • Organizational Affiliation
    • Department of Chemistry, Umeå University Sweden anna.linusson@umu.se.

Macromolecule Content

  • Total Structure Weight: 121.59 kDa
  • Atom Count: 8,866
  • Modeled Residue Count: 1,068
  • Deposited Residue Count: 1,086
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

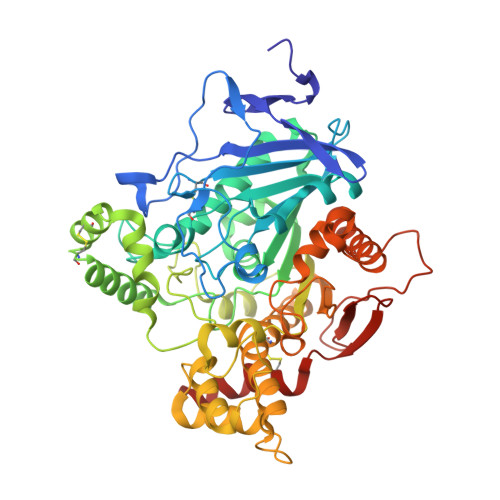

Acetylcholinesterase
A, B
543Mus musculusMutation(s): 0
Gene Names: Ache
EC: 3.1.1.7
UniProt & NIH Common Fund Data Resources
Find proteins for P21836 (Mus musculus)
Explore P21836
Go to UniProtKB:  P21836
IMPC:  MGI:87876
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21836
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:  0.203 (Depositor), 0.207 (DCC)
  • R-Value Work:  0.179 (Depositor), 0.181 (DCC)
  • R-Value Observed: 0.180 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.493α = 90
b = 112.581β = 90
c = 227.811γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
Aimlessdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swedish Research CouncilSweden2017-00664

Revision History  (Full details and data files)

  • Version 1.0: 2026-01-28
    Type: Initial release
  • Version 1.1: 2026-03-11
    Changes: Database references
