9SNE | pdb_00009sne

CTLH-CRA domain of murine RanBP9

PDB DOI: https://doi.org/10.2210/pdb9SNE/pdb

Classification: LIGASE
Organism(s): Mus musculus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-09-10 Released: 2026-03-18
Deposition Author(s): van gen Hassend, P.M., Schindelin, H.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.81 Å
R-Value Free:
0.240 (Depositor), 0.234 (DCC)
R-Value Work:
0.201 (Depositor), 0.200 (DCC)
R-Value Observed:
0.202 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9SNE

This is version 1.0 of the entry. See complete history.

Literature

Engineering CTLH-CRA domains with swapped binding specificity

van gen Hassend, P.M., Schindelin, H.

To be published.

Macromolecule Content

Total Structure Weight: 38.34 kDa
Atom Count: 2,287
Modeled Residue Count: 284
Deposited Residue Count: 344
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

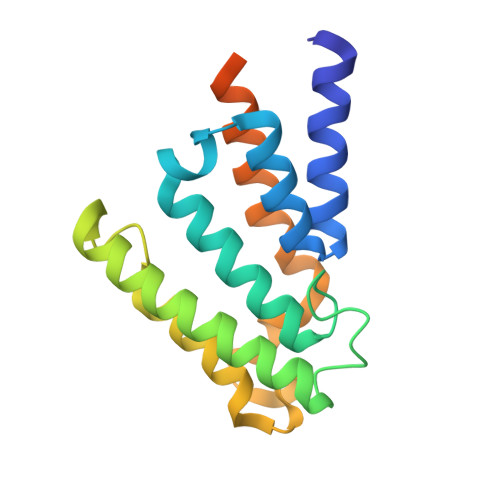

Ran-binding protein 9	A, B	172	Mus musculus	Mutation(s): 0 Gene Names: Ranbp9, Ranbpm
UniProt
Find proteins for P69566 (Mus musculus) Explore P69566 Go to UniProtKB: P69566
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P69566
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] SDF format, chain E [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] MOL2 format, chain E [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B] mmCIF format, chain E [auth B]	C [auth A], D [auth B], E [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Focus chain D [auth B] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B] Focus chain E [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.81 Å
R-Value Free: 0.240 (Depositor), 0.234 (DCC)
R-Value Work: 0.201 (Depositor), 0.200 (DCC)
R-Value Observed: 0.202 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 41.277	α = 90
b = 80.32	β = 101.608
c = 45.017	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
STARANISO	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-18

Deposition Author(s):

van gen Hassend, P.M.

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	GRK2243

Revision History (Full details and data files)

Version 1.0: 2026-03-18
Type: Initial release
