9S2H | pdb_00009s2h

CgCdr1 in complex with ATP and ADP

PDB DOI: https://doi.org/10.2210/pdb9S2H/pdb
EM Map EMD-54500: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Nakaseomyces glabratus
Expression System: Saccharomyces cerevisiae
Mutation(s): No

Deposited: 2025-07-21 Released: 2026-07-29
Deposition Author(s): Pata, J., Zarkadas, E., Schoehn, G., Chaptal, V., Falson, P.
Funding Organization(s): Agence Nationale de la Recherche (ANR)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9S2H

This is version 1.0 of the entry. See complete history.

Literature

CgCdr1 in complex with ATP, ADP-VO4

Pata, J., Zarkadas, E., Schoehn, G., Chaptal, V., Falson, P.

To be published.

Macromolecule Content

Total Structure Weight: 175.92 kDa
Atom Count: 11,263
Modeled Residue Count: 1,358
Deposited Residue Count: 1,508
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

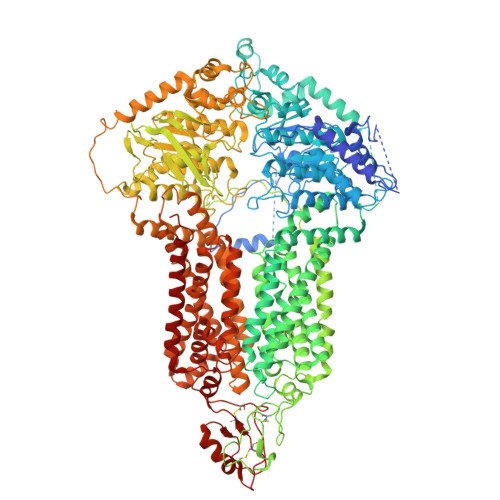

Pleiotropic ABC efflux transporter of multiple drugs CDR1	A	1,508	Nakaseomyces glabratus	Mutation(s): 0 Gene Names: CDR1, CAGL0M01760g
UniProt
Find proteins for Q6FK23 (Candida glabrata (strain ATCC 2001 / BCRC 20586 / JCM 3761 / NBRC 0622 / NRRL Y-65 / CBS 138)) Explore Q6FK23 Go to UniProtKB: Q6FK23
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q6FK23
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
ERG (Subject of Investigation/LOI) Query on ERG Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A]	E [auth A] F [auth A] G [auth A] H [auth A] I [auth A] E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A]	ERGOSTEROL C₂₈ H₄₄ O DNVPQKQSNYMLRS-APGDWVJJSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21_5207
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Agence Nationale de la Recherche (ANR)	France	ANR-24-CE44-xxxx-xx

Revision History (Full details and data files)

Version 1.0: 2026-07-29
Type: Initial release
