9S0P | pdb_00009s0p

VHH10 in complex with human C5a des-Arg

PDB DOI: https://doi.org/10.2210/pdb9S0P/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Vicugna pacos
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-07-16 Released: 2026-10-28
Deposition Author(s): Fernandez, F.J., Vega, M.C.
Funding Organization(s): Ministerio de Ciencia e Innovacion (MCIN), Comunidad de Madrid, European Commission

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free:
0.208 (Depositor), 0.207 (DCC)
R-Value Work:
0.162 (Depositor), 0.162 (DCC)
R-Value Observed:
0.164 (Depositor)

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

VHH10 in complex with human C5a des-Arg

Vega, M.C., Fernandez, F.J.

To be published.

Macromolecule Content

Total Structure Weight: 45.22 kDa
Atom Count: 3,253
Modeled Residue Count: 385
Deposited Residue Count: 392
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

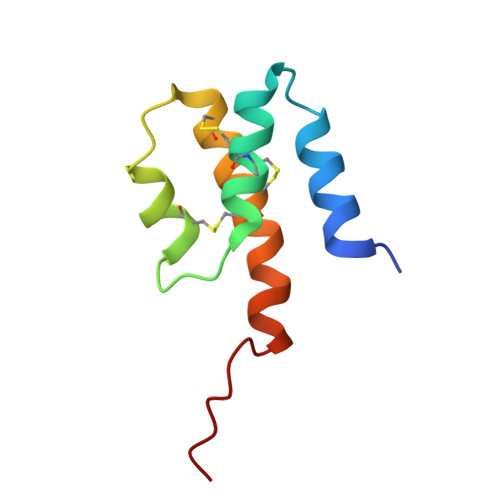

C5a anaphylatoxin	A, C	77	Homo sapiens	Mutation(s): 0 Gene Names: C5, CPAMD4
UniProt & NIH Common Fund Data Resources
Find proteins for P01031 (Homo sapiens) Explore P01031 Go to UniProtKB: P01031
PHAROS: P01031 GTEx: ENSG00000106804
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P01031
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

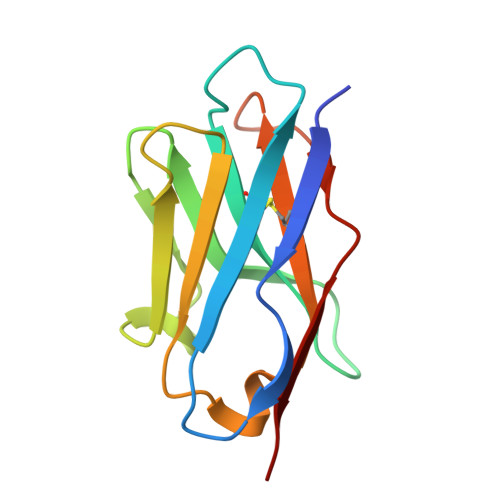

Single-domain antibody VHH10	B, D	119	Vicugna pacos	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
IOD (Subject of Investigation/LOI) Query on IOD Download:Ideal Coordinates CCD File SDF format, chain Z [auth D] SDF format, chain Y [auth D] SDF format, chain X [auth D] SDF format, chain W [auth D] SDF format, chain U [auth C] SDF format, chain T [auth C] SDF format, chain Q [auth B] SDF format, chain P [auth B] SDF format, chain O [auth B] SDF format, chain N [auth B] SDF format, chain M [auth B] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain AA [auth D] MOL2 format, chain Z [auth D] MOL2 format, chain Y [auth D] MOL2 format, chain X [auth D] MOL2 format, chain W [auth D] MOL2 format, chain U [auth C] MOL2 format, chain T [auth C] MOL2 format, chain Q [auth B] MOL2 format, chain P [auth B] MOL2 format, chain O [auth B] MOL2 format, chain N [auth B] MOL2 format, chain M [auth B] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain AA [auth D] mmCIF format, chain Z [auth D] mmCIF format, chain Y [auth D] mmCIF format, chain X [auth D] mmCIF format, chain W [auth D] mmCIF format, chain U [auth C] mmCIF format, chain T [auth C] mmCIF format, chain Q [auth B] mmCIF format, chain P [auth B] mmCIF format, chain O [auth B] mmCIF format, chain N [auth B] mmCIF format, chain M [auth B] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain AA [auth D]	AA [auth D] F [auth A] G [auth A] H [auth A] I [auth A] AA [auth D], F [auth A], G [auth A], H [auth A], I [auth A], M [auth B], N [auth B], O [auth B], P [auth B], Q [auth B], T [auth C], U [auth C], W [auth D], X [auth D], Y [auth D], Z [auth D]	IODIDE ION I XMBWDFGMSWQBCA-UHFFFAOYSA-M		Interactions Focus chain AA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain Q [auth B] Focus chain T [auth C] Focus chain U [auth C] Focus chain W [auth D] Focus chain X [auth D] Focus chain Y [auth D] Focus chain Z [auth D] Interactions & Density Focus chain AA [auth D] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain P [auth B] Focus chain Q [auth B] Focus chain T [auth C] Focus chain U [auth C] Focus chain W [auth D] Focus chain X [auth D] Focus chain Y [auth D] Focus chain Z [auth D]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain V [auth D] SDF format, chain S [auth C] SDF format, chain R [auth C] SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain J [auth B] SDF format, chain E [auth A] MOL2 format, chain V [auth D] MOL2 format, chain S [auth C] MOL2 format, chain R [auth C] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain J [auth B] MOL2 format, chain E [auth A] mmCIF format, chain V [auth D] mmCIF format, chain S [auth C] mmCIF format, chain R [auth C] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain J [auth B] mmCIF format, chain E [auth A]	E [auth A] J [auth B] K [auth B] L [auth B] R [auth C] E [auth A], J [auth B], K [auth B], L [auth B], R [auth C], S [auth C], V [auth D]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain R [auth C] Focus chain S [auth C] Focus chain V [auth D] Interactions & Density Focus chain E [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain R [auth C] Focus chain S [auth C] Focus chain V [auth D]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.99 Å
R-Value Free: 0.208 (Depositor), 0.207 (DCC)
R-Value Work: 0.162 (Depositor), 0.162 (DCC)
R-Value Observed: 0.164 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 38.321	α = 90
b = 57.668	β = 91.091
c = 76.57	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data reduction
autoPROC	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-28

Deposition Author(s):

Fernandez, F.J.

Vega, M.C.

Funding Organization	Location	Grant Number
Ministerio de Ciencia e Innovacion (MCIN)	Spain	FIS-ISCIII PI24/00925
Ministerio de Ciencia e Innovacion (MCIN)	Spain	RTI2018-102242-B-I00
Ministerio de Ciencia e Innovacion (MCIN)	Spain	PDC2022-133713-I00
Ministerio de Ciencia e Innovacion (MCIN)	Spain	CPP2022-009838
Comunidad de Madrid	Spain	S2017/BMD-3673
Comunidad de Madrid	Spain	S2022/BMD-7278
European Commission	European Union	SGL2103020
Ministerio de Ciencia e Innovacion (MCIN)	Spain	RED2022-134750-T
