9RHA | pdb_00009rha

Cryo-EM structure of the inward-facing apo NhaA with flexible N-terminus at pH 5.5

PDB DOI: https://doi.org/10.2210/pdb9RHA/pdb
EM Map EMD-53963: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Escherichia coli, Mus musculus
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-06-08 Released: 2026-06-17
Deposition Author(s): Weng, T.-H., Safarian, S., Michel, H.
Funding Organization(s): Max Planck Society

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.50 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9RHA

This is version 1.0 of the entry. See complete history.

Literature

Conformational ensemble reveals pH-dependent activation and substrate recognition of the Na+/H+ antiporter NhaA

Weng, T.-H., Fabian, B., Olkhova, E., Welsch, S., Schmidt, S.L., Danieli, T., Keren, Y., Abraham, R., Safarian, S., Hummer, G., Padan, E., Michel, H.

To be published.

Macromolecule Content

Total Structure Weight: 70.71 kDa
Atom Count: 4,550
Modeled Residue Count: 602
Deposited Residue Count: 653
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Na(+)/H(+) antiporter NhaA	A	407	Escherichia coli	Mutation(s): 0 Gene Names: nhaA, ant, b0019, JW0018
UniProt
Find proteins for P13738 (Escherichia coli (strain K12)) Explore P13738 Go to UniProtKB: P13738
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P13738
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Fv6F9 heavy chain	B	127	Mus musculus	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

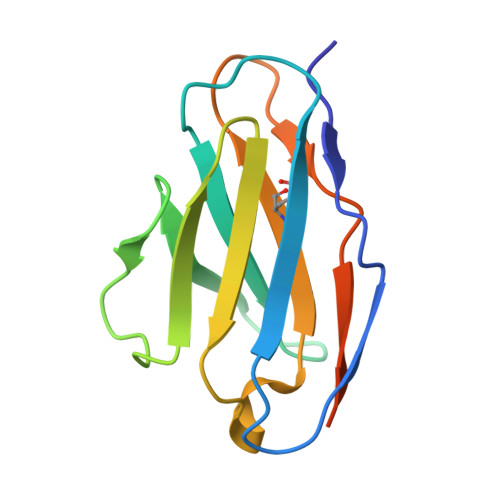

Fv6F9 light chain	C	119	Mus musculus	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.50 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	RELION	4
MODEL REFINEMENT	PHENIX	1.20.1_4487:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-06-17

Deposition Author(s):

Funding Organization	Location	Grant Number
Max Planck Society	Germany	--

Revision History (Full details and data files)

Version 1.0: 2026-06-17
Type: Initial release
