9RD1 | pdb_00009rd1

OppA from E. coli in complex with GSisoK


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:
    0.259 (Depositor), 0.268 (DCC)
  • R-Value Work:
    0.229 (Depositor), 0.241 (DCC)
  • R-Value Observed:
    0.231 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9RD1

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Hijacking a bacterial ABC transporter for genetic code expansion.

Iype, T.Fottner, M.Bohm, P.Piedrafita, C.Moller, Y.Groll, M.Lang, K.

(2025) Nature 647: 1045-1053

  • DOI: https://doi.org/10.1038/s41586-025-09576-w
  • Primary Citation Related Structures:
    9RD1

  • PubMed Abstract:

    The site-specific encoding of non-canonical amino acids (ncAAs) provides a powerful tool for expanding the functional repertoire of proteins 1-4 . Its widespread use for basic research and biotechnological applications is, however, hampered by the low efficiencies of current ncAA incorporation strategies. Here we reveal poor cellular ncAA uptake as a main obstacle to efficient genetic code expansion and overcome this bottleneck by hijacking a bacterial ATP-binding cassette (ABC) transporter 5 to actively import easily synthesizable isopeptide-linked tripeptides that are processed into ncAAs within the cell. Using this approach, we enable efficient encoding of a variety of previously inaccessible ncAAs, decorating proteins with bioorthogonal 6 and crosslinker 7 moieties, post-translational modifications 8,9 and functionalities for chemoenzymatic conjugation. We then devise a high-throughput directed evolution platform to engineer tailored transporter systems for the import of ncAAs that were historically refractory to efficient uptake. Customized Escherichia coli strains expressing these evolved transporters facilitate single and multi-site ncAA incorporation with wild-type efficiencies. Additionally, we adapt the tripeptide scaffolds for the co-transport of two different ncAAs, enabling their efficient dual incorporation. Collectively, our study demonstrates that engineering of uptake systems is a powerful strategy for programmable import of chemically diverse building blocks.


  • Organizational Affiliation
    • Department of Chemistry and Applied Biosciences (D-CHAB), ETH Zurich, Zurich, Switzerland.

Macromolecule Content

  • Total Structure Weight: 238 kDa
  • Atom Count: 16,697
  • Modeled Residue Count: 2,068
  • Deposited Residue Count: 2,088
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

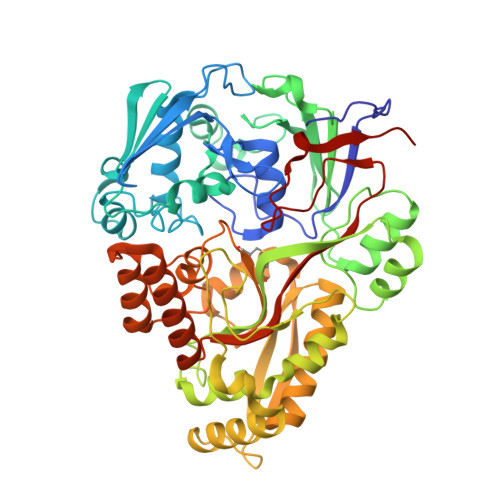

Periplasmic oligopeptide-binding protein OppA
A, B, C, D
522Escherichia coliMutation(s): 0
Gene Names: oppAb1243JW1235
UniProt
Find proteins for P23843 (Escherichia coli (strain K12))
Explore P23843
Go to UniProtKB:  P23843
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP23843
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1JHR

Query on A1JHR



Download:Ideal Coordinates CCD File
E [auth A],
G [auth B],
J [auth C],
M [auth D]
Gly-Ser-epsilon-Lys
C11 H22 N4 O5
OXZXXPSZOGBIGZ-YUMQZZPRSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
K [auth D]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
BU3

Query on BU3



Download:Ideal Coordinates CCD File
F [auth B](R,R)-2,3-BUTANEDIOL
C4 H10 O2
OWBTYPJTUOEWEK-QWWZWVQMSA-N
EDO

Query on EDO



Download:Ideal Coordinates CCD File
H [auth C],
I [auth C],
L [auth D]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:  0.259 (Depositor), 0.268 (DCC)
  • R-Value Work:  0.229 (Depositor), 0.241 (DCC)
  • R-Value Observed: 0.231 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.99α = 90
b = 200.69β = 95.73
c = 103.38γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanySFB1309

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-13
    Type: Initial release
  • Version 1.1: 2025-10-29
    Changes: Database references
  • Version 1.2: 2025-12-10
    Changes: Database references
