9R8R | pdb_00009r8r

Factor Xa bound to BAY 3389934


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free:
    0.266 (Depositor), 0.274 (DCC)
  • R-Value Work:
    0.227 (Depositor), 0.232 (DCC)
  • R-Value Observed:
    0.229 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9R8R

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Discovery of BAY 3389934 Hydrochloride: A Potent and Selective Small-Molecule Dual Factor IIa/Xa Inhibitor with Short Half-Life for the Acute Treatment of Sepsis-Induced Coagulopathy.

Beck, H.Mesch, S.Zimmermann, S.Vakalopoulos, A.Lehmann, L.Gericke, K.M.Sussmeier, F.Baerfacker, L.Hillisch, A.Meier, K.Tersteegen, A.Buchmuller, A.Gerdes, C.Dietze-Torres, J.Kersten, E.Partikel, K.Brohl, A.Levilain, G.Heitmeier, S.Pfaff, N.Follmann, M.

(2025) J Med Chem 68: 12687-12707

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c00538
  • Primary Citation Related Structures:
    9R8Q, 9R8R

  • PubMed Abstract:

    Sepsis-induced coagulopathy (SIC) is a severe and frequent complication of sepsis, which is associated with high mortality in patients. So far, attempts have failed to establish a global standard of care in this difficult-to-treat indication. Anticoagulation with a dual inhibitor of the coagulation factors IIa (FIIa, thrombin) and Xa (FXa) has the potential to improve the treatment of life-threatening acute coagulation disorders, such as SIC. Herein, we describe the discovery of BAY 3389934 hydrochloride ( 31 ), a potent and highly selective, direct dual FIIa/Xa inhibitor, with high solubility suited for i.v. application. This small molecule acts as a metabolically soft active pharmaceutical ingredient (API) due to a labile carboxylic ester group, which is responsible for the desired short pharmacokinetic and pharmacological half-life ( t 1/2 ), resulting in a high controllability of the pharmacological action.


  • Organizational Affiliation
    • Bayer AG, Pharmaceuticals, Research & Development, 42113 Wuppertal, Germany.

Macromolecule Content

  • Total Structure Weight: 33 kDa
  • Atom Count: 2,360
  • Modeled Residue Count: 284
  • Deposited Residue Count: 284
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure

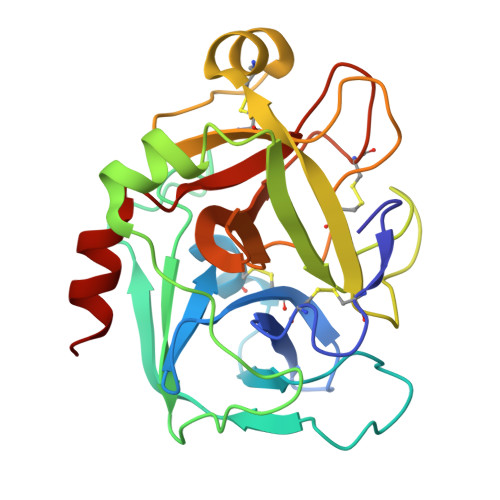

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Coagulation factor X234Homo sapiensMutation(s): 0
EC: 3.4.21.6
UniProt & NIH Common Fund Data Resources
Find proteins for P00742 (Homo sapiens)
Explore P00742
Go to UniProtKB:  P00742
PHAROS:  P00742
GTEx:  ENSG00000126218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00742
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

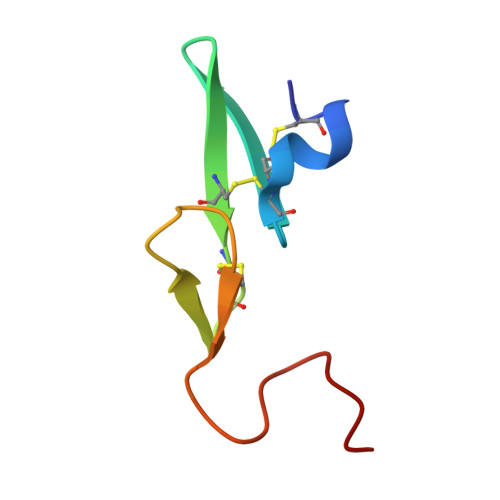

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Coagulation factor X50Homo sapiensMutation(s): 0
EC: 3.4.21.6
UniProt & NIH Common Fund Data Resources
Find proteins for P00742 (Homo sapiens)
Explore P00742
Go to UniProtKB:  P00742
PHAROS:  P00742
GTEx:  ENSG00000126218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00742
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1JDJ
(Subject of Investigation/LOI)

Query on A1JDJ



Download:Ideal Coordinates CCD File
D [auth A]2-(1-methylimidazol-2-yl)ethyl (2~{S})-3-[(5-chloranylthiophen-2-yl)carbonylamino]-2-[[2-ethyl-3-[(3~{S})-3-oxidanyl-2-oxidanylidene-pyrrolidin-1-yl]phenyl]sulfonylamino]propanoate
C26 H30 Cl N5 O7 S2
UHRIYOJEACOYON-HKUYNNGSSA-N
PE8

Query on PE8



Download:Ideal Coordinates CCD File
F [auth A]3,6,9,12,15,18,21-HEPTAOXATRICOSANE-1,23-DIOL
C16 H34 O9
GLZWNFNQMJAZGY-UHFFFAOYSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
E [auth A],
G [auth A]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
CA

Query on CA



Download:Ideal Coordinates CCD File
C [auth A]CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.04 Å
  • R-Value Free:  0.266 (Depositor), 0.274 (DCC)
  • R-Value Work:  0.227 (Depositor), 0.232 (DCC)
  • R-Value Observed: 0.229 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 55.678α = 90
b = 71.105β = 90
c = 79.748γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-18
    Type: Initial release
  • Version 1.1: 2025-07-09
    Changes: Database references
