9QHQ | pdb_00009qhq

Cryo-EM structure of mouse TRPM3 alpha 2 in with agonists CIM-0216 and Pregnenolone sulfate (PregS)

PDB DOI: https://doi.org/10.2210/pdb9QHQ/pdb
EM Map EMD-53177: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Mus musculus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-03-16 Released: 2026-02-11
Deposition Author(s): Shkumatov, A.V., Schenck, S., Brunner, J.D.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.07 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9QHQ

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of mouse TRPM3 alpha 2 in complex with agonists CIM-0216 and Pregnenolone sulfate (PregS)

Shkumatov, A.V., Schenck, S., Brunner, J.D.

To be published.

Macromolecule Content

Total Structure Weight: 652.38 kDa
Atom Count: 31,308
Modeled Residue Count: 3,824
Deposited Residue Count: 5,636
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

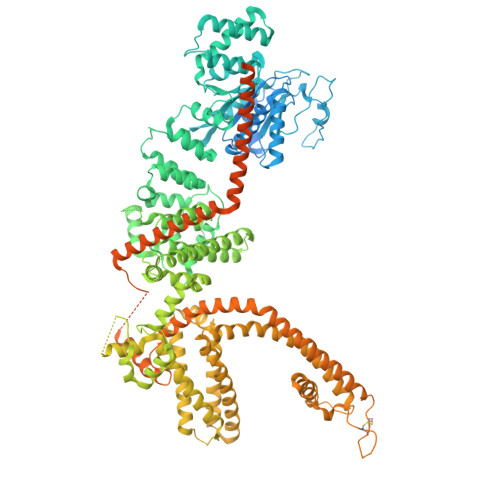

MKIAA1616 protein	A, B, C, D	1,409	Mus musculus	Mutation(s): 0 Gene Names: Trpm3, mKIAA1616
UniProt & NIH Common Fund Data Resources
Find proteins for Q69ZE8 (Mus musculus) Explore Q69ZE8 Go to UniProtKB: Q69ZE8
IMPC: MGI:2443101
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q69ZE8
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A8W (Subject of Investigation/LOI) Query on A8W Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain I [auth B] SDF format, chain M [auth C] SDF format, chain O [auth D] MOL2 format, chain F [auth A] MOL2 format, chain I [auth B] MOL2 format, chain M [auth C] MOL2 format, chain O [auth D] mmCIF format, chain F [auth A] mmCIF format, chain I [auth B] mmCIF format, chain M [auth C] mmCIF format, chain O [auth D]	F [auth A], I [auth B], M [auth C], O [auth D]	Pregnenolone sulfate C₂₁ H₃₂ O₅ S DIJBBUIOWGGQOP-QGVNFLHTSA-N		Interactions Focus chain F [auth A] Focus chain I [auth B] Focus chain M [auth C] Focus chain O [auth D] Interactions & Density Focus chain F [auth A] Focus chain I [auth B] Focus chain M [auth C] Focus chain O [auth D]
CLR Query on CLR Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain K [auth C] SDF format, chain N [auth D] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain K [auth C] MOL2 format, chain N [auth D] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain K [auth C] mmCIF format, chain N [auth D]	G [auth A], H [auth A], K [auth C], N [auth D]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth C] Focus chain N [auth D] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain K [auth C] Focus chain N [auth D]
A1I8P (Subject of Investigation/LOI) Query on A1I8P Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain J [auth B] SDF format, chain L [auth C] SDF format, chain P [auth D] MOL2 format, chain E [auth A] MOL2 format, chain J [auth B] MOL2 format, chain L [auth C] MOL2 format, chain P [auth D] mmCIF format, chain E [auth A] mmCIF format, chain J [auth B] mmCIF format, chain L [auth C] mmCIF format, chain P [auth D]	E [auth A], J [auth B], L [auth C], P [auth D]	(2~{R})-2-(3,4-dihydro-2~{H}-quinolin-1-yl)-~{N}-(5-methyl-1,2-oxazol-3-yl)-2-phenyl-ethanamide C₂₁ H₂₁ N₃ O₂ KSEXDSJYVSEVGF-HXUWFJFHSA-N		Interactions Focus chain E [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain P [auth D] Interactions & Density Focus chain E [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain P [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.07 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21-5207

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-02-11

Deposition Author(s):

Shkumatov, A.V.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-02-11
Type: Initial release
