9Q3L | pdb_00009q3l

CryoEM structure of beta2-adrenergic receptor dimer mediated by a biased allosteric modulator in lipid nanodisc

PDB DOI: https://doi.org/10.2210/pdb9Q3L/pdb
EM Map EMD-72202: EMDB EMDataResource

Classification: SIGNALING PROTEIN
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-08-18 Released: 2026-08-19
Deposition Author(s): Shen, J., Kobilka, B.K.
Funding Organization(s): National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), American Heart Association

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.50 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9Q3L

This is version 1.0 of the entry. See complete history.

Literature

A biased allosteric modulator is a molecular glue for Beta2AR dimerization

Shen, J., Peddada, T.N., Jun, X., Kobilka, B.K.

To be published.

Macromolecule Content

Total Structure Weight: 106.1 kDa
Atom Count: 4,790
Modeled Residue Count: 574
Deposited Residue Count: 920
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

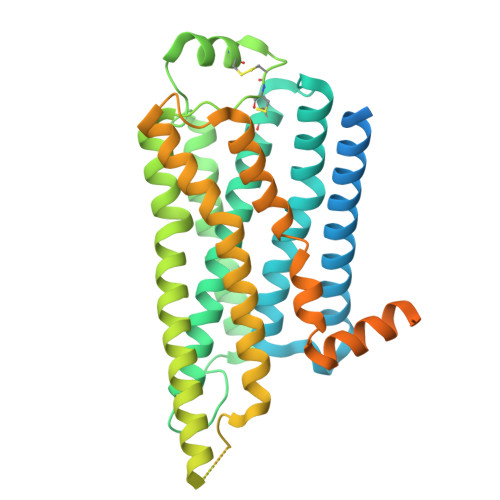

Beta-2 adrenergic receptor	A, B	460	Homo sapiens	Mutation(s): 0 Gene Names: ADRB2, ADRB2R, B2AR
UniProt & NIH Common Fund Data Resources
Find proteins for P07550 (Homo sapiens) Explore P07550 Go to UniProtKB: P07550
GTEx: ENSG00000169252
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P07550
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1CNS Query on A1CNS Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain J [auth B] MOL2 format, chain F [auth A] MOL2 format, chain J [auth B] mmCIF format, chain F [auth A] mmCIF format, chain J [auth B]	F [auth A], J [auth B]	6-bromo-N~4~-cyclohexyl-N~2~-(3,4-difluorophenyl)quinazoline-2,4-diamine C₂₀ H₁₉ Br F₂ N₄ XPSOVAYWMLKDBS-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain J [auth B] Interactions & Density Focus chain F [auth A] Focus chain J [auth B]
P0G Query on P0G Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain I [auth B] MOL2 format, chain E [auth A] MOL2 format, chain I [auth B] mmCIF format, chain E [auth A] mmCIF format, chain I [auth B]	E [auth A], I [auth B]	8-[(1R)-2-{[1,1-dimethyl-2-(2-methylphenyl)ethyl]amino}-1-hydroxyethyl]-5-hydroxy-2H-1,4-benzoxazin-3(4H)-one C₂₁ H₂₆ N₂ O₄ NWQXBEWHTDRJIP-KRWDZBQOSA-N		Interactions Focus chain E [auth A] Focus chain I [auth B] Interactions & Density Focus chain E [auth A] Focus chain I [auth B]
LFA Query on LFA Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain H [auth B] MOL2 format, chain D [auth A] MOL2 format, chain H [auth B] mmCIF format, chain D [auth A] mmCIF format, chain H [auth B]	D [auth A], H [auth B]	EICOSANE C₂₀ H₄₂ CBFCDTFDPHXCNY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain H [auth B] Interactions & Density Focus chain D [auth A] Focus chain H [auth B]
C14 Query on C14 Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain G [auth B] MOL2 format, chain C [auth A] MOL2 format, chain G [auth B] mmCIF format, chain C [auth A] mmCIF format, chain G [auth B]	C [auth A], G [auth B]	TETRADECANE C₁₄ H₃₀ BGHCVCJVXZWKCC-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain G [auth B] Interactions & Density Focus chain C [auth A] Focus chain G [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.50 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-19

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	R35 NS137408
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01 GM083118
American Heart Association	United States	25POST1411512

Revision History (Full details and data files)

Version 1.0: 2026-08-19
Type: Initial release
