9PY9 | pdb_00009py9

Menin mutant - M327I in complex with Ziftomenib

PDB DOI: https://doi.org/10.2210/pdb9PY9/pdb

Classification: PROTEIN BINDING
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2025-08-07 Released: 2026-10-28
Deposition Author(s): Clegg, B.D., Ray, J.M., Cierpicki, T., Grembecka, J.
Funding Organization(s): National Institutes of Health/National Cancer Institute (NIH/NCI)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free:
0.189 (Depositor), 0.190 (DCC)
R-Value Work:
0.149 (Depositor), 0.149 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Menin mutant - M327I in complex with Ziftomenib

Clegg, B.D., Ray, J.M., Cierpicki, T., Grembecka, J.

To be published.

Macromolecule Content

Total Structure Weight: 55.95 kDa
Atom Count: 4,391
Modeled Residue Count: 472
Deposited Residue Count: 489
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1

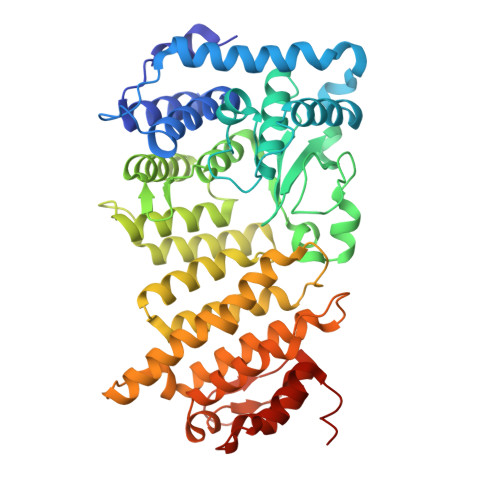

Molecule	Chains	Sequence Length	Organism	Details	Image
Menin	A	489	Homo sapiens	Mutation(s): 1 Gene Names: MEN1, SCG2
UniProt & NIH Common Fund Data Resources
Find proteins for O00255 (Homo sapiens) Explore O00255 Go to UniProtKB: O00255
PHAROS: O00255 GTEx: ENSG00000133895
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O00255
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
K5O (Subject of Investigation/LOI) Query on K5O Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	Ziftomenib C₃₃ H₄₂ F₃ N₉ O₂ S₂ BGGALFIXXQOTPY-NRFANRHFSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
PG4 Query on PG4 Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	TETRAETHYLENE GLYCOL C₈ H₁₈ O₅ UWHCKJMYHZGTIT-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain H [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain H [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain H [auth A]	C [auth A], D [auth A], H [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain H [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain H [auth A]
DMS Query on DMS Download:Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A]	F [auth A], G [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A]
