9PUF | pdb_00009puf

Crystal Structure of N-Phenylalanine Peptoid-modified Collagen Triple Helix (GPX)

PDB DOI: https://doi.org/10.2210/pdb9PUF/pdb

Classification: STRUCTURAL PROTEIN
Organism(s): Homo sapiens
Mutation(s): No

Deposited: 2025-07-30 Released: 2026-04-08
Deposition Author(s): Whitby, F.G., Ratnitilakanabhuket, P.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.30 Å
R-Value Free:
0.168 (Depositor), 0.173 (DCC)
R-Value Work:
0.147 (Depositor), 0.154 (DCC)
R-Value Observed:
0.149 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 9PUF

This is version 1.0 of the entry. See complete history.

Literature

Structure of collagen-like peptides with N-linked peptoid substitutions

Whitby, F.G., Ratnatilakanabhuket, P.

To be published.

Macromolecule Content

Total Structure Weight: 5.84 kDa
Atom Count: 515
Modeled Residue Count: 67
Deposited Residue Count: 69
Unique protein chains: 1

Macromolecules

Find similar proteins by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

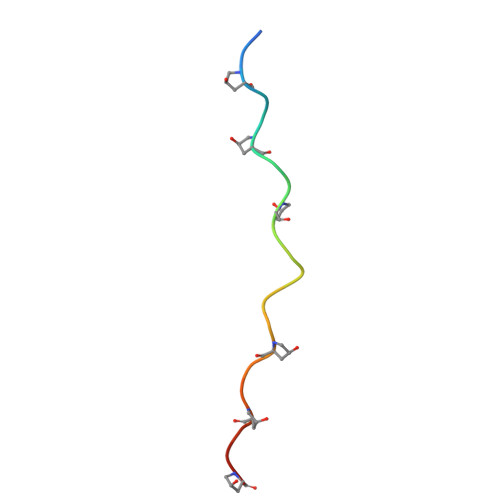

N-Phenylalanine Peptoid-modified Collagen	A [auth D], B [auth E], C [auth F]	23	Homo sapiens	Mutation(s): 0

Small Molecules

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
04Q Query on 04Q	A [auth D], B [auth E], C [auth F]	PEPTIDE LINKING	C₉ H₁₁ N O₂		--
HYP Query on HYP	A [auth D], B [auth E], C [auth F]	L-PEPTIDE LINKING	C₅ H₉ N O₃		PRO

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.30 Å
R-Value Free: 0.168 (Depositor), 0.173 (DCC)
R-Value Work: 0.147 (Depositor), 0.154 (DCC)
R-Value Observed: 0.149 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 113.541	α = 90
b = 24.081	β = 94.5
c = 15.029	γ = 90

Software Package:

Software Name	Purpose
XDS	data reduction
Aimless	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-08

Deposition Author(s):

Ratnitilakanabhuket, P.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01AR071358
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	S10OD021527

Revision History (Full details and data files)

Version 1.0: 2026-04-08
Type: Initial release
