9PMK | pdb_00009pmk

PhuZ Tubulin Tetramer from phage Goslar


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.84 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

Validation slider image for 9PMK

This is version 1.1 of the entry. See complete history

Literature

A bacteriophage tubulin forms microtubule-like assemblies with nine protofilaments.

Basu, D.Chen, S.Li, Y.X.Klusch, N.Inlow, K.Pogliano, J.Villa, E.Corbett, K.D.

(2026) Structure 34: 394-403.e3

  • DOI: https://doi.org/10.1016/j.str.2025.12.002
  • Primary Citation Related Structures:
    9PM9, 9PMK

  • PubMed Abstract:

    Tubulin family proteins play central roles in the organization and dynamics of cytoskeletal systems across the Tree of Life. In one family of bacteriophages (phages), tubulin-like proteins called PhuZ (Phage tubulin/FtsZ) form dynamic filaments that position and rotate an intracellular compartment, the "phage nucleus," in which the phage genome is replicated. PhuZ filaments also mediate trafficking of nascent capsids from the cell periphery to the phage nucleus for genome packaging. PhuZ from the Pseudomonas-infecting phages 201Phi2-1 and PhiKZ form assemblies with three protofilaments. Here, we determine a 2.8 Å resolution structure of PhuZ from the E. coli-infecting phage Goslar, which forms an elaborate "cytoskeletal vortex" in infected cells. We find that in vitro-assembled Goslar PhuZ forms rigid tubes with nine nearly-straight protofilaments. The lateral interactions mediating this assembly are fundamentally different from eukaryotic tubulin, leading to a distinctive overall architecture for Goslar PhuZ filaments.


  • Organizational Affiliation
    • Department of Chemistry & Biochemistry, University of California, San Diego, La Jolla, CA 92093, USA.

Macromolecule Content

  • Total Structure Weight: 144.74 kDa
  • Atom Count: 10,060
  • Modeled Residue Count: 1,304
  • Deposited Residue Count: 1,312
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

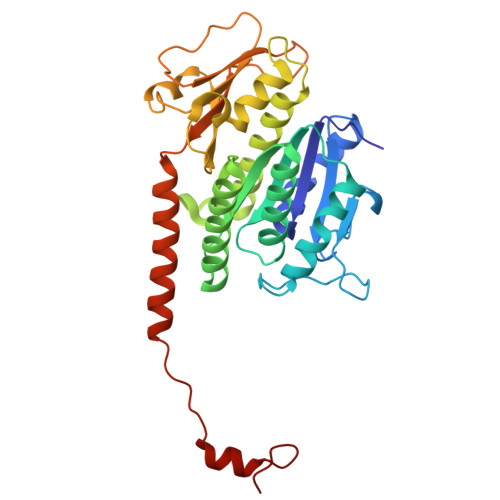

Tubulin/FtsZ GTPase domain-containing proteinA [auth C],
B,
C [auth A],
D
328GoslarvirusMutation(s): 0
Gene Names: Goslar_00201
UniProt
Find proteins for A0A482GH76 (Escherichia phage vB_EcoM_Goslar)
Explore A0A482GH76
Go to UniProtKB:  A0A482GH76
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A482GH76
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.84 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: HELICAL
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United StatesEmerging Pathogens Initiative

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-07-08
    Changes: Data collection, Database references
