9PKH | pdb_00009pkh

Phenylalanine ammonia-lyase from Joinvillea ascendens

PDB DOI: https://doi.org/10.2210/pdb9PKH/pdb

Classification: LYASE
Organism(s): Joinvillea ascendens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-07-14 Released: 2026-08-19
Deposition Author(s): Morris, J.S., Jez, J.M., Havranek, W.
Funding Organization(s): United States Department of Agriculture (USDA)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free:
0.243 (Depositor), 0.243 (DCC)
R-Value Work:
0.204 (Depositor), 0.204 (DCC)
R-Value Observed:
0.206 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9PKH

This is version 1.0 of the entry. See complete history.

Literature

Genomes of Poaceae sisters reveal key metabolic innovations preceding the evolution of grasses

Takeda-Kimura, Y., Moore, B., Holden, S., Morris, J.S., Deb, S.K., Sanders, C., El-Azaz, J., Barrett, M., Lorence, D., de Oliveira, M.V.V., Havranek, W.M., Grimwood, J., Williams, M., Boston, L.B., Jenkins, J., Plott, C., Shu, S., Barry, K., Goodstein, D.M., Schmutz, J., Jez, J.M., Moscou, M.J., McKain, M.R., Leebens-Mack, J.H., Maeda, H.A.

To be published.

Macromolecule Content

Total Structure Weight: 77.51 kDa
Atom Count: 5,113
Modeled Residue Count: 668
Deposited Residue Count: 718
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

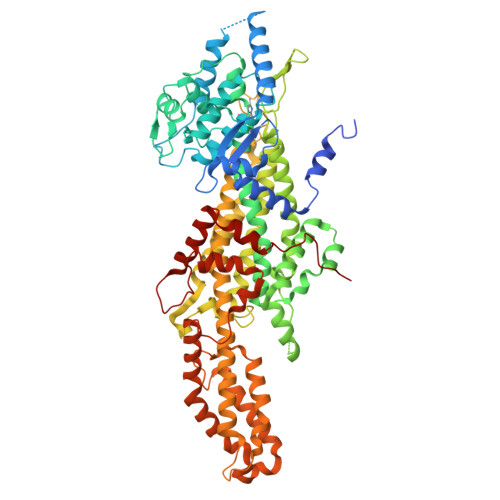

Phenylalanine ammonia-lyase	A	718	Joinvillea ascendens	Mutation(s): 0 EC: 4.3.1.24
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MDO Query on MDO	A	L-PEPTIDE LINKING	C₈ H₁₁ N₃ O₃		ALA, SER, GLY

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.90 Å
R-Value Free: 0.243 (Depositor), 0.243 (DCC)
R-Value Work: 0.204 (Depositor), 0.204 (DCC)
R-Value Observed: 0.206 (Depositor)

Space Group: P 6₂ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 210.28	α = 90
b = 210.28	β = 90
c = 110.865	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
autoPROC	data processing
XDS	data reduction
pointless	data scaling
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-19

Deposition Author(s):

Funding Organization	Location	Grant Number
United States Department of Agriculture (USDA)	United States	NIFA-2024-67013-42518

Revision History (Full details and data files)

Version 1.0: 2026-08-19
Type: Initial release
