9PI3 | pdb_00009pi3

Single stranded DNA-binding protein (ICP8) from Herpes simplex virus-1, apo form. Mutations: C254S, C455S, K769A, E770A


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:
    0.263 (Depositor), 0.264 (DCC)
  • R-Value Work:
    0.184 (Depositor), 0.189 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9PI3

This is version 1.0 of the entry. See complete history

Literature

The crystal structure of the herpes virus ICP8 protein in complex with single-stranded DNA reveals the molecular determinants of nucleotide recognition.

Erlandsen, H.Krucinska, J.Wilderman, P.R.Makkay, A.M.Szczepaniak, R.Wright, L.R.Weller, S.K.Wright, D.L.

(2026) J Biological Chem : 111366-111366

  • DOI: https://doi.org/10.1016/j.jbc.2026.111366
  • Primary Citation Related Structures:
    9PI3, 9PI4, 9PI5, 9PI6

  • PubMed Abstract:

    The HSV-1 single-strand annealing protein ICP8 (UL29) is essential for viral DNA replication and recombination. Although its overall architecture has been described, the molecular basis of single-stranded DNA (ssDNA) recognition was unknown. We report crystal structures of C-terminally truncated ICP8 (ICP8Δ60) bound to poly(dT)25 or poly(dA)25 ssDNA at 3.0-3.1 Å resolution, along with higher-resolution apo structures of surface-entropy-reduction variants. ssDNA binds within the neck region between the head and shoulder domains, contacting conserved OB-fold residues via base-specific hydrogen bonds, π-stacking and phosphate backbone interactions. In the poly(dT)25 complex, coordination of a Zn 2+ ion stabilizes the zinc finger motif; whereas, in the poly(dA)25 complex, Zn 2+ displacement promotes disulfide bond formation that effectively locks the protein into an altered conformation. Microscale thermophoresis and label-free differential scanning fluorimetry reveal a strong preference for pyrimidine-rich sequences, with nanomolar affinity for poly(dT)25 and micromolar for poly(dA)25. Structural modeling identified Y543, R576, R772, R793, Y988, and F998 as key DNA-contact residues. Alanine substitutions caused severe replication defects, particularly for R772A, Y988A, and F998A. ssDNA binding induces ∼26 Å displacement and ∼35 degree rotation of the C-terminal domain and ordering of flexible loops, suggesting a mechanism for cooperative filament assembly. These structures define the molecular determinants of ICP8-ssDNA recognition, reveal thymidine bias and provide a framework for targeting ICP8-mediated functions in herpesvirus replication.


  • Organizational Affiliation
    • University of Connecticut School of Pharmacy, Storrs, CT, USA, 06269.

Macromolecule Content

  • Total Structure Weight: 244.36 kDa
  • Atom Count: 16,258
  • Modeled Residue Count: 2,110
  • Deposited Residue Count: 2,272
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

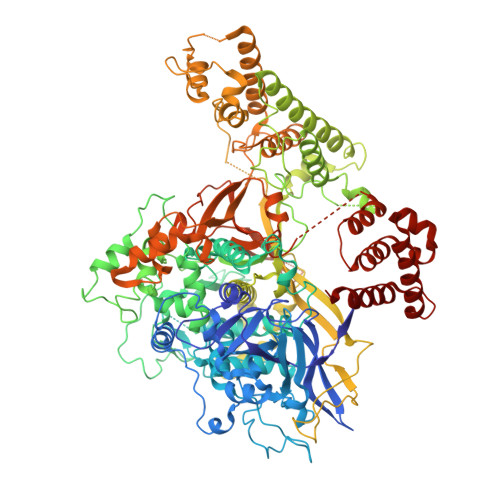

Major DNA-binding protein
A, B
1,136Human alphaherpesvirus 1Mutation(s): 4
Gene Names: DBPICP8UL29
UniProt
Find proteins for P17470 (Human herpesvirus 1 (strain KOS))
Explore P17470
Go to UniProtKB:  P17470
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP17470
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free:  0.263 (Depositor), 0.264 (DCC)
  • R-Value Work:  0.184 (Depositor), 0.189 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 89.99α = 90
b = 140.2β = 111.06
c = 98.8γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
PDB_EXTRACTdata extraction
autoPROCdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States5R01AI021747-38

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-15
    Type: Initial release
