9OWE | pdb_00009owe

CryoEM structure of stabilized dengue 3 virus envelope glycoprotein in complex with Fab of F25.S02


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.16 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OWE

This is version 1.2 of the entry. See complete history

Literature

Structural basis for antibody cross-neutralization of Dengue and Zika viruses.

Hurlburt, N.K.Lubow, J.Goo, L.Pancera, M.

(2026) Commun Biol 9

  • DOI: https://doi.org/10.1038/s42003-026-09805-6
  • Primary Citation Related Structures:
    9OWE, 9OWF

  • PubMed Abstract:

    Safe and effective vaccines against co-circulating mosquito-borne orthoflaviviruses such as Zika virus (ZikV) and the four serotypes of Dengue virus (DenV1-4) must elicit broadly neutralizing antibodies (bnAbs) to prevent the risk of enhancement of infection by non-neutralizing antibodies. We recently discovered new orthoflavivirus-directed bnAbs, including F25.S02, which neutralizes DenV1-4 and ZikV with comparable or superior potency to the previously characterized E dimer epitope (EDE) bnAbs. Here, we used cryoEM and X-ray crystallography to understand the basis of cross-neutralization of F25.S02 at the molecular level. We obtained a ~ 4.2 Å cryoEM structure of F25.S02 Fab bound to a stabilized DenV3 soluble E protein dimer and a 2.3 Å crystal structure of F25.S02 Fab bound to ZikV soluble E protein dimer. Like previously described EDE1 bnAbs, the structural epitope of F25.S02 is at the E dimer interface, encompassing predominantly conserved regions in domain II, including the fusion loop. However, unlike EDE1 bnAbs, F25.S02 binding is almost entirely dependent on the heavy chain and is shifted slightly away from the dimer symmetry axis. Our findings emphasize the importance of this cross-neutralizing site of vulnerability for DenV and ZikV that can facilitate rational design of vaccines and therapeutics.


  • Organizational Affiliation
    • Vaccine and Infectious Disease Division, Fred Hutchinson Cancer Center, Seattle, Washington, USA.

Macromolecule Content

  • Total Structure Weight: 188.82 kDa
  • Atom Count: 9,706
  • Modeled Residue Count: 1,252
  • Deposited Residue Count: 1,722
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

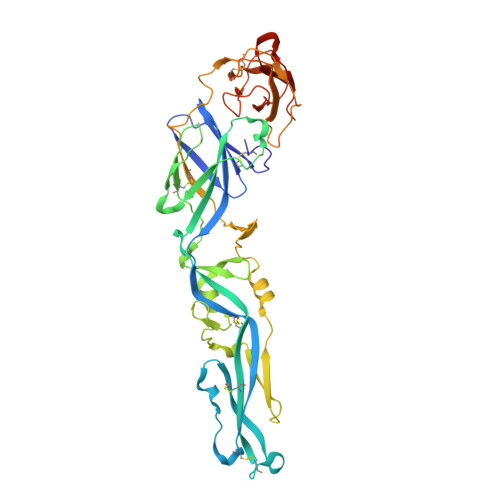

Genome polyprotein
A, B
406dengue virus type 3Mutation(s): 0
UniProt
Find proteins for Q07019 (Dengue virus type 3)
Explore Q07019
Go to UniProtKB:  Q07019
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ07019
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

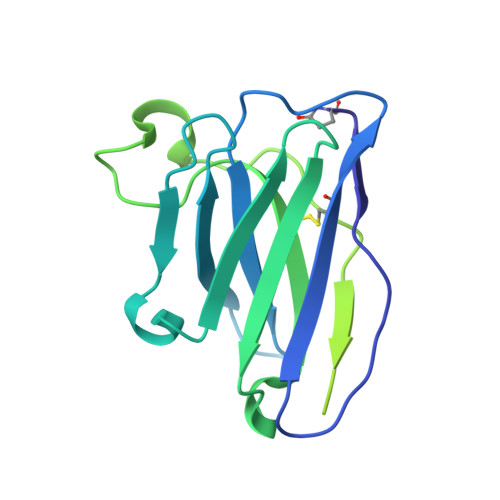

F25.S02 Heavy chainC,
E [auth H]
238Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

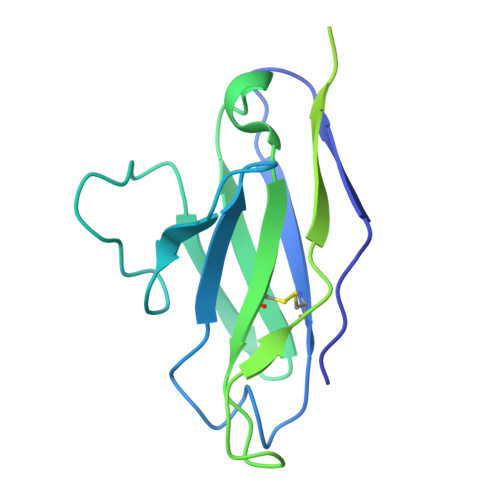

F25.S02 Light chainD,
F [auth L]
217Homo sapiensMutation(s): 0

Oligosaccharides

Help
Entity ID: 4
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseG [auth E],
H [auth F]
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE

Small Molecules

Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
PCA
Query on PCA
C,
E [auth H]
L-PEPTIDE LINKINGC5 H7 N O3GLN

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.16 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other privateFred Hutchinson Cancer Center

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-04
    Type: Initial release
  • Version 1.1: 2026-03-25
    Changes: Data collection, Database references
  • Version 1.2: 2026-05-06
    Changes: Data collection, Database references
