9OAT | pdb_00009oat

TNA polymerase, 5-270, binary complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.56 Å
  • R-Value Free:
    0.268 (Depositor), 0.268 (DCC)
  • R-Value Work:
    0.218 (Depositor), 0.218 (DCC)
  • R-Value Observed:
    0.221 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9OAT

This is version 1.2 of the entry. See complete history

Literature

Directed evolution of a TNA polymerase identifies independent paths to fidelity and catalysis.

Hajjar, M.Maola, V.A.Lee, J.J.Holguin, M.J.Quijano, R.N.Nguyen, K.K.Ho, K.L.Medina, J.V.Botello-Cornejo, E.Barpuzary, B.Chim, N.Chaput, J.C.

(2025) Nat Commun 17: 925-925

  • DOI: https://doi.org/10.1038/s41467-025-67652-1
  • Primary Citation Related Structures:
    9OAT, 9OAU, 9OAV, 9OAW, 9OAX, 9OAY

  • PubMed Abstract:

    Directed evolution facilitates functional adaptations through stepwise changes in sequence that alter protein structure. While most campaigns yield solutions that maintain the framework of a rigid protein architecture, a few have produced enzymes with more notable structural differences. One example is a polymerase that was evolved to synthesize threose nucleic acid (TNA) with near-natural activity. Understanding how this enzyme arose provides a model for studying pathways that guide enzymes toward more productive regions of the fitness landscape. Here, we trace the evolutionary trajectory of an unnatural polymerase by solving crystal structures of key intermediates along the pathway and evaluating their biochemical activity. Contrary to the view that fidelity is a product of increased catalytic efficiency, we find that accuracy and catalysis are decoupled activities guided by separate ground-state and transition-state discrimination events. Together, these results offer a glimpse into the forces responsible for shaping the emergence of new enzyme functions.


  • Organizational Affiliation
    • Department of Pharmaceutical Sciences, University of California, Irvine, CA, USA.

Macromolecule Content

  • Total Structure Weight: 100 kDa
  • Atom Count: 6,897
  • Modeled Residue Count: 790
  • Deposited Residue Count: 806
  • Unique protein chains: 1
  • Unique nucleic acid chains: 2

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

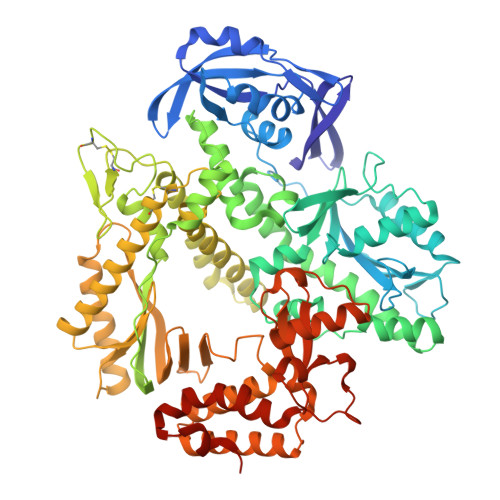

5-270, TNA polymerase775Thermococcus kodakarensisMutation(s): 0
EC: 2.7.7.7
UniProt
Find proteins for D0VWU9 (Thermococcus kodakarensis (strain ATCC BAA-918 / JCM 12380 / KOD1))
Explore D0VWU9
Go to UniProtKB:  D0VWU9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupD0VWU9
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 2
MoleculeChains LengthOrganismImage

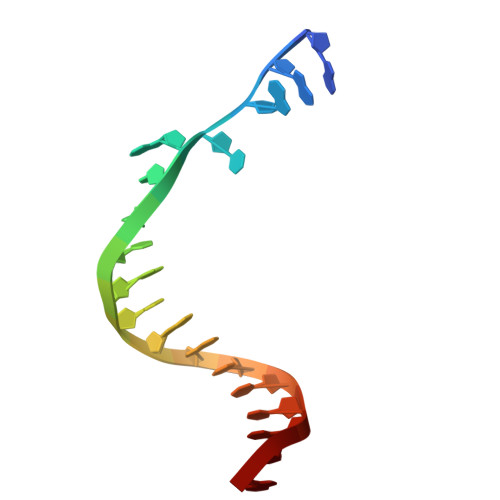

TemplateB [auth T]18synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 3
MoleculeChains LengthOrganismImage

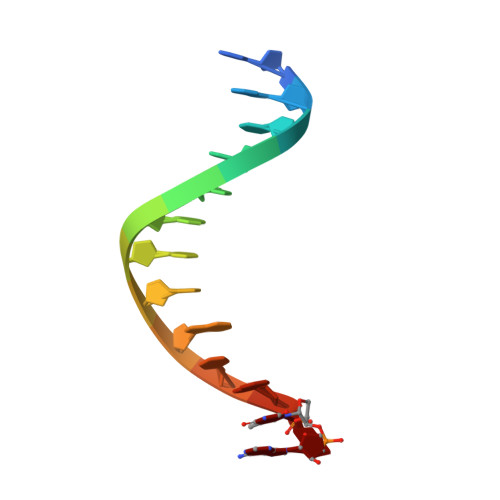

PrimerC [auth P]13synthetic construct
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
MES

Query on MES



Download:Ideal Coordinates CCD File
J [auth P]2-(N-MORPHOLINO)-ETHANESULFONIC ACID
C6 H13 N O4 S
SXGZJKUKBWWHRA-UHFFFAOYSA-N
CA

Query on CA



Download:Ideal Coordinates CCD File
D [auth A],
E [auth A],
F [auth A]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
MG

Query on MG



Download:Ideal Coordinates CCD File
G [auth A],
H [auth A],
I [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.56 Å
  • R-Value Free:  0.268 (Depositor), 0.268 (DCC)
  • R-Value Work:  0.218 (Depositor), 0.218 (DCC)
  • R-Value Observed: 0.221 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.796α = 90
b = 110.455β = 90
c = 124.308γ = 90
Software Package:
Software NamePurpose
Blu-Icedata collection
XDSdata reduction
pointlessdata scaling
Aimlessdata scaling
PHASERphasing
PHENIXrefinement
Cootmodel building

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Science Foundation (NSF, United States)United StatesMCB 1946312

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-10
    Type: Initial release
  • Version 1.1: 2025-12-31
    Changes: Database references
  • Version 1.2: 2026-02-04
    Changes: Database references
