Cryo-EM structure of rhesus antibody CH35-Apex1.08 in complex with HIV Env trimer Q23-APEX-GT2

PDB DOI: https://doi.org/10.2210/pdb9NVW/pdb
EM Map EMD-49866: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): Macaca mulatta, Human immunodeficiency virus 1
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-03-21 Released: 2026-04-01
Deposition Author(s): Roark, R.S., Shapiro, L.S., Kwong, P.D.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Germline-targeting HIV immunogen induces cross-neutralizing antibodies in outbred macaques.

Mishra, N., Liang, B., Roark, R.S., Ghosh, A.R., Callaghan, S., Lee, W.H., Li, X., Vo, A.L., Avillion, G., Chowdhury, R.R., Habib, R., Bibollet-Ruche, F., Giese, G., Oberoi, P., Amereh, K., Somanathan, A., Zhu, Y., Zhang, Y., Kassab, M., Tjio, L., Andrabi, S., Reyes, R.A., Allen, J.D., James, N.E., Randall Jr., K.N., van der Maas, L., Ben-Akiva, E., Kacmarek-Michaels, K., Plante, S., Martella, C.L., Skelly, A.N., Singh, A., Hurtado, J., Dueker, K., Capozzola, T., Nedellec, R., Ozorowski, G., Lewis, M.G., Falcone, S., Carfi, A., Himansu, S., Shapiro, L., Crispin, M., Hahn, B.H., Briney, B., Irvine, D.J., Burton, D.R., Ward, A.B., Batista, F.D., Kwong, P.D., Shaw, G.M., Andrabi, R.

(2026) Immunity 59: 1140-1160.e11

PubMed: 41985438 Search on PubMed
DOI: https://doi.org/10.1016/j.immuni.2026.03.012
Primary Citation Related Structures:
9NVV, 9NVW, 9NVX, 9NVY, 9NVZ, 9NW0, 9NW1

PubMed Abstract:
Germline targeting (GT) is a promising strategy to activate rare broadly neutralizing antibody (bnAb)-producing B cells against HIV, but induction of such responses in outbred animals has not been achieved. Using antibody-guided structure-based design, we engineered a GT HIV trimer immunogen, Q23-APEX-GT2, which primes diverse V2-apex bnAb precursors. Q23-APEX-GT2 efficiently activated rare V2-apex-specific B cells in humanized knockin mice and consistently elicited immunofocused antibody responses in outbred rhesus macaques, priming multiple long heavy-chain complementarity-determining region 3 (CDRH3)-loop bnAb-B cell lineages. Monoclonal antibodies isolated from immunized macaques showed broad heterologous HIV trimer recognition and modest cross-neutralization of diverse tier-2 viruses. Cryoelectron microscopy (cryo-EM) structural studies confirmed precise epitope targeting and revealed CDRH3-mediated binding modes that mirrored those of human V2-apex bnAbs. Together, these findings establish proof of principle for priming and early maturation of authentic V2-apex bnAb precursors in outbred macaques and highlight the promise of V2-apex-targeted HIV vaccines.

Organizational Affiliation

Department of Immunology and Microbiology, The Scripps Research Institute, La Jolla, CA 92037, USA; Consortium for HIV/AIDS Vaccine Development (CHAVD), The Scripps Research Institute, La Jolla, CA 92037, USA.

Department of Medicine, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA.

Aaron Diamond AIDS Research Center, Columbia University Vagelos College of Physicians and Surgeons, New York, NY 10032, USA; Department of Biochemistry and Molecular Biophysics, Columbia University, New York, NY 10027, USA; Zuckerman Mind Brain Behavior Institute, Columbia University, New York, NY 10027, USA.

Ragon Institute of Massachusetts General Hospital, Massachusetts Institute of Technology, and Department of Immunology, Harvard Medical School, Harvard University, Cambridge, MA 02114, USA.

Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, CA 92037, USA.

Department of Medicine, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA; Department of Microbiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA.

School of Biological Sciences, University of Southampton, Southampton SO17 1BJ, UK.

Koch Institute for Integrative Cancer Research, Massachusetts Institute of Technology, Cambridge, MA 02139, USA.

Bioqual, Inc., Rockville, MD, USA.

Moderna, Inc., Cambridge, MA 02139, USA.

Department of Biochemistry and Molecular Biophysics, Columbia University, New York, NY 10027, USA; Zuckerman Mind Brain Behavior Institute, Columbia University, New York, NY 10027, USA.

Department of Immunology and Microbiology, The Scripps Research Institute, La Jolla, CA 92037, USA; Consortium for HIV/AIDS Vaccine Development (CHAVD), The Scripps Research Institute, La Jolla, CA 92037, USA; Ragon Institute of Massachusetts General Hospital, Massachusetts Institute of Technology, and Department of Immunology, Harvard Medical School, Harvard University, Cambridge, MA 02114, USA; IAVI Neutralizing Antibody Center, The Scripps Research Institute, La Jolla, CA 92037, USA.

Consortium for HIV/AIDS Vaccine Development (CHAVD), The Scripps Research Institute, La Jolla, CA 92037, USA; Department of Integrative Structural and Computational Biology, The Scripps Research Institute, La Jolla, CA 92037, USA; IAVI Neutralizing Antibody Center, The Scripps Research Institute, La Jolla, CA 92037, USA.

Ragon Institute of Massachusetts General Hospital, Massachusetts Institute of Technology, and Department of Immunology, Harvard Medical School, Harvard University, Cambridge, MA 02114, USA; Department of Biology, Massachusetts Institute of Technology, Cambridge, MA 02139, USA. Electronic address: fbatista1@mgh.harvard.edu.

Department of Immunology and Microbiology, The Scripps Research Institute, La Jolla, CA 92037, USA; Consortium for HIV/AIDS Vaccine Development (CHAVD), The Scripps Research Institute, La Jolla, CA 92037, USA; Department of Medicine, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA; Department of Microbiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104, USA. Electronic address: raiees.andrabi@pennmedicine.upenn.edu.

Macromolecule Content

Total Structure Weight: 288.14 kDa
Atom Count: 17,222
Modeled Residue Count: 1,955
Deposited Residue Count: 2,353
Unique protein chains: 4

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

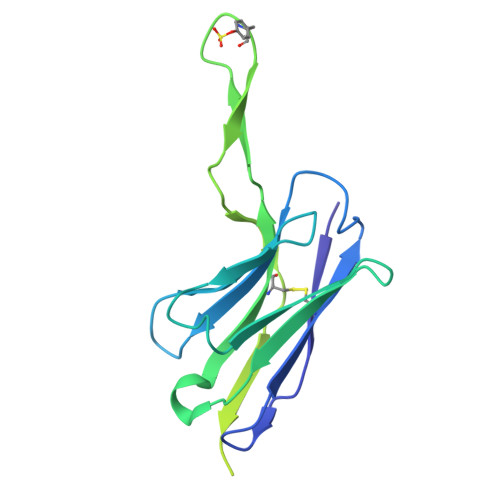

CH35-Apex1.08 heavy chain	A [auth H]	246	Macaca mulatta	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

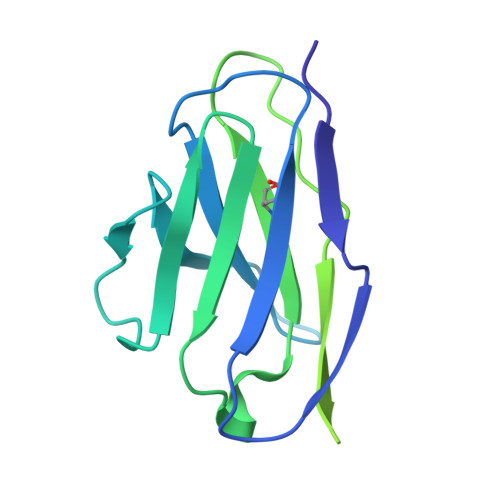

CH35-Apex1.08 kappa chain	B [auth L]	214	Macaca mulatta	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

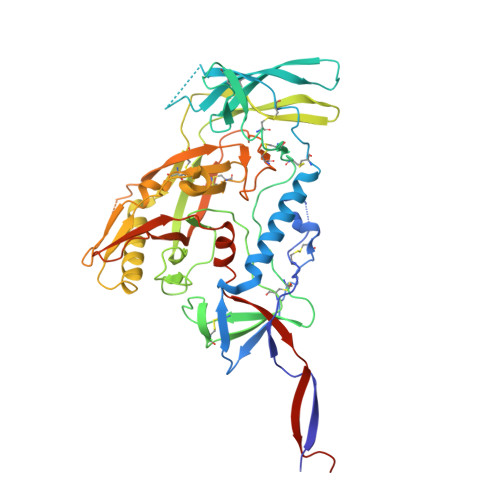

HIV envelope gp120	C [auth b], E [auth d], G [auth f]	478	Human immunodeficiency virus 1	Mutation(s): 0 Gene Names: env
UniProt
Find proteins for O55774 (Human immunodeficiency virus type 1) Explore O55774 Go to UniProtKB: O55774
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O55774
Glycosylation
Glycosylation Sites: 20	Glycosylation Focus chain C [auth b] Focus chain E [auth d] Focus chain G [auth f]
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

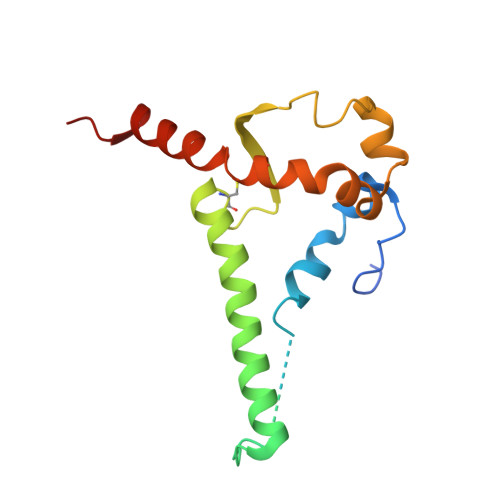

HIV envelope gp41 ectodomain	D [auth c], F [auth e], H [auth g]	153	Human immunodeficiency virus 1	Mutation(s): 0 Gene Names: env
