9NUC | pdb_00009nuc

CryoEM analysis of Phosphoglucose isomerase from P. aeruginosa reveals potential clinically relevant features

PDB DOI: https://doi.org/10.2210/pdb9NUC/pdb
EM Map EMD-49800: EMDB EMDataResource

Classification: STRUCTURAL PROTEIN
Organism(s): Pseudomonas aeruginosa PAO1
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2025-03-19 Released: 2026-04-01
Deposition Author(s): Sharma, K., Borgnia, J.M.
Funding Organization(s): National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 1.45 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9NUC

This is version 1.0 of the entry. See complete history.

Literature

CryoEM analysis of Phosphoglucose isomerase from P. aeruginosa reveals potential clinically relevant features

Sharma, K., Borgnia, J.M.

To be published.

Macromolecule Content

Total Structure Weight: 625.52 kDa
Atom Count: 51,370
Modeled Residue Count: 5,570
Deposited Residue Count: 5,570
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

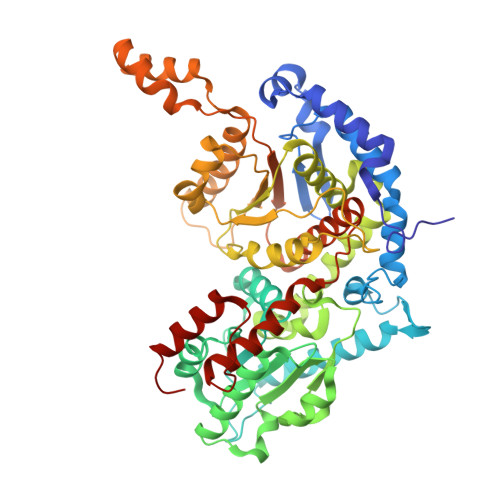

Glucose-6-phosphate isomerase	A, B, C, D, E A, B, C, D, E, F, G, H, I, J	557	Pseudomonas aeruginosa PAO1	Mutation(s): 0 Gene Names: pgi, PA4732 EC: 5.3.1.9
UniProt
Find proteins for Q9HV67 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore Q9HV67 Go to UniProtKB: Q9HV67
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HV67
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
6PG (Subject of Investigation/LOI) Query on 6PG Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth B] SDF format, chain M [auth C] SDF format, chain N [auth D] SDF format, chain O [auth E] SDF format, chain P [auth F] SDF format, chain Q [auth G] SDF format, chain R [auth H] SDF format, chain S [auth I] SDF format, chain T [auth J] MOL2 format, chain K [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth C] MOL2 format, chain N [auth D] MOL2 format, chain O [auth E] MOL2 format, chain P [auth F] MOL2 format, chain Q [auth G] MOL2 format, chain R [auth H] MOL2 format, chain S [auth I] MOL2 format, chain T [auth J] mmCIF format, chain K [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth C] mmCIF format, chain N [auth D] mmCIF format, chain O [auth E] mmCIF format, chain P [auth F] mmCIF format, chain Q [auth G] mmCIF format, chain R [auth H] mmCIF format, chain S [auth I] mmCIF format, chain T [auth J]	K [auth A] L [auth B] M [auth C] N [auth D] O [auth E] K [auth A], L [auth B], M [auth C], N [auth D], O [auth E], P [auth F], Q [auth G], R [auth H], S [auth I], T [auth J]	6-PHOSPHOGLUCONIC ACID C₆ H₁₃ O₁₀ P BIRSGZKFKXLSJQ-SQOUGZDYSA-N		Interactions Focus chain K [auth A] Focus chain L [auth B] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth E] Focus chain P [auth F] Focus chain Q [auth G] Focus chain R [auth H] Focus chain S [auth I] Focus chain T [auth J] Interactions & Density Focus chain K [auth A] Focus chain L [auth B] Focus chain M [auth C] Focus chain N [auth D] Focus chain O [auth E] Focus chain P [auth F] Focus chain Q [auth G] Focus chain R [auth H] Focus chain S [auth I] Focus chain T [auth J]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 1.45 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	v4.5.3

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of Environmental Health Sciences (NIH/NIEHS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
