9NK7 | pdb_00009nk7

Thermothelomyces thermophilus SAM complex open conformation


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.84 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9NK7

This is version 1.1 of the entry. See complete history

Literature

The dynamic lateral gate of the mitochondrial beta-barrel biogenesis machinery is blocked by darobactin A.

Diederichs, K.A.Botos, I.Hayashi, S.Gutishvili, G.Kotov, V.Kuo, K.Iinishi, A.Cooper, G.Schwarz, B.Celia, H.Marlovits, T.C.Lewis, K.Gumbart, J.C.Mindell, J.A.Buchanan, S.K.

(2025) Nat Commun 16: 11349-11349

  • DOI: https://doi.org/10.1038/s41467-025-66417-0
  • Primary Citation Related Structures:
    9NK6, 9NK7, 9NK8

  • PubMed Abstract:

    The folding and insertion of β-barrel proteins into the mitochondrial outer membrane is facilitated by the sorting and assembly machinery (SAM) complex. Here we report two 2.8 Å cryo-EM structures of the Thermothelomyces thermophilus SAM complex in the absence of substrate in which the Sam50 lateral gate adopts two different conformations: the first is a closed lateral gate as observed in previously published structures, while the second contains a Sam50 with the first four β-strands rotated outwards by approximately 45°, resulting in an open lateral gate. The observed monomeric open conformation contrasts our previous work where the open conformation was adopted by non-physiological up-down dimers. To understand how these lateral gate dynamics are influenced by substrate, we studied the interaction of the SAM complex with a β-signal peptide mimic, darobactin A. Darobactin A binds to the SAM complex with nanomolar affinity and inhibits the import and assembly of mitochondrial β-barrel proteins in vitro. Lastly, we solved a 3.0 Å cryo-EM structure of the Thermothelomyces thermophilus SAM complex bound to darobactin A, which reveals that darobactin A stabilizes the Sam50 lateral gate similar to the open conformation by binding to strand β1, therefore blocking β-barrel biogenesis.


  • Organizational Affiliation
    • Laboratory of Molecular Biology, National Institute of Diabetes & Digestive & Kidney Diseases, National Institutes of Health, Bethesda, MD, USA.

Macromolecule Content

  • Total Structure Weight: 147.64 kDa
  • Atom Count: 8,970
  • Modeled Residue Count: 1,142
  • Deposited Residue Count: 1,350
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure

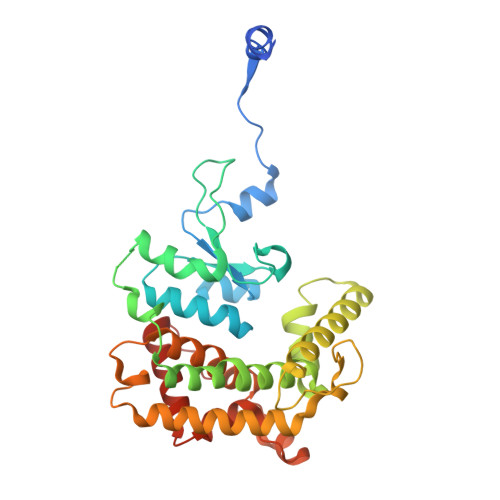

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Sam35334Thermothelomyces thermophilusMutation(s): 0
Gene Names: MYCTH_2142789
UniProt
Find proteins for G2QAT9 (Thermothelomyces thermophilus (strain ATCC 42464 / BCRC 31852 / DSM 1799))
Explore G2QAT9
Go to UniProtKB:  G2QAT9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2QAT9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

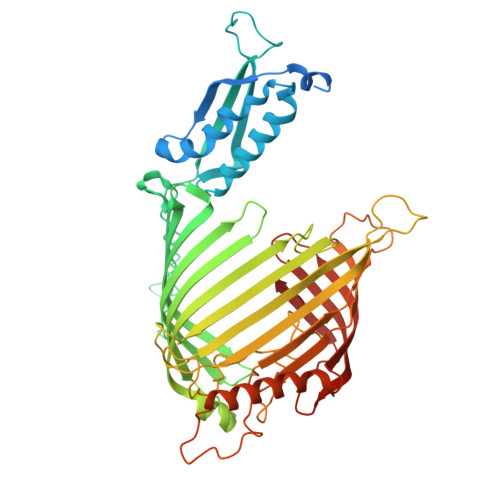

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Sam50532Thermothelomyces thermophilusMutation(s): 0
Gene Names: MYCTH_2094326
UniProt
Find proteins for G2QFF9 (Thermothelomyces thermophilus (strain ATCC 42464 / BCRC 31852 / DSM 1799))
Explore G2QFF9
Go to UniProtKB:  G2QFF9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2QFF9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Sam37484Thermothelomyces thermophilusMutation(s): 0
Gene Names: MYCTH_2293977
UniProt
Find proteins for G2Q6R7 (Thermothelomyces thermophilus (strain ATCC 42464 / BCRC 31852 / DSM 1799))
Explore G2Q6R7
Go to UniProtKB:  G2Q6R7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupG2Q6R7
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ERG

Query on ERG



Download:Ideal Coordinates CCD File
D [auth A]
E [auth B]
F [auth B]
G [auth B]
H [auth B]
D [auth A],
E [auth B],
F [auth B],
G [auth B],
H [auth B],
I [auth B],
J [auth B],
K [auth B],
L [auth C],
M [auth C],
N [auth C],
O [auth C]
ERGOSTEROL
C28 H44 O
DNVPQKQSNYMLRS-APGDWVJJSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.84 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21rc1_5084

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Diabetes and Digestive and Kidney Disease (NIH/NIDDK)United StatesZIA DK036139

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-03
    Type: Initial release
  • Version 1.1: 2026-01-07
    Changes: Data collection, Database references
