9MRF | pdb_00009mrf

De novo designed apolar residue motif transmembrane helix

PDB DOI: https://doi.org/10.2210/pdb9MRF/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-01-07 Released: 2025-01-22
Deposition Author(s): Mravic, M., Zhang, M., Anderson, C.T.
Funding Organization(s): Other private

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.252 (Depositor), 0.252 (DCC)
R-Value Work:
0.214 (Depositor), 0.213 (DCC)
R-Value Observed:
0.216 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MRF

This is version 1.0 of the entry. See complete history.

Literature

De novo designed apolar residue motif transmembrane helix

Mravic, M., Zhang, M., Anderson, C.T.

To be published.

Macromolecule Content

Total Structure Weight: 7.04 kDa
Atom Count: 513
Modeled Residue Count: 62
Deposited Residue Count: 62
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

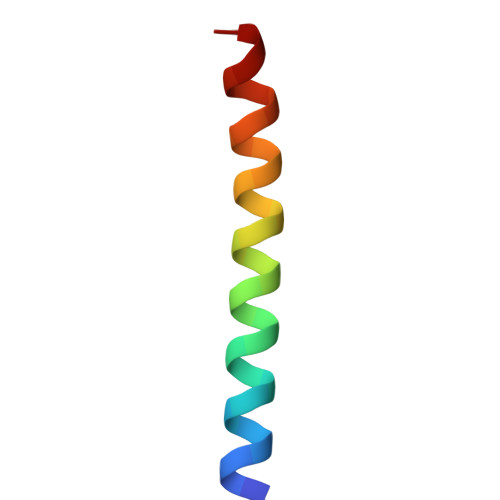

ApolarResidue_denovo_design_46727_KFYK	A, B	31	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free: 0.252 (Depositor), 0.252 (DCC)
R-Value Work: 0.214 (Depositor), 0.213 (DCC)
R-Value Observed: 0.216 (Depositor)

Space Group: P 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 39.599	α = 90
b = 48.745	β = 90
c = 29.756	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data reduction
SCALEPACK	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-01-22

Deposition Author(s):

Funding Organization	Location	Grant Number
Other private		--

Revision History (Full details and data files)

Version 1.0: 2025-01-22
Type: Initial release
