9MMY | pdb_00009mmy

E. coli GroEL bound with ATP and PBZ1587 inhibitor

PDB DOI: https://doi.org/10.2210/pdb9MMY/pdb
EM Map EMD-48407: EMDB EMDataResource

Classification: CHAPERONE
Organism(s): Escherichia coli
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-12-20 Released: 2026-01-21
Deposition Author(s): Johnson, S.M., Chen, Q.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9MMY

This is version 1.0 of the entry. See complete history.

Literature

Deciphering the unique mechanism whereby bis-sulfonamido-2-phenylbenzoxazole (PBZ) GroEL/ES inhibitors modulate chaperonin ATPase and client protein folding functions.

Stevens, M., Doud, E.H., Norambuena, J., Tepper, K., Trindl, C.A., Carpenter, R., Chapman, E., Boyd, J.M., Wells, C., Chen, Q., Johnson, S.M.

To be published.

Macromolecule Content

Total Structure Weight: 816.05 kDa
Atom Count: 54,831
Modeled Residue Count: 7,350
Deposited Residue Count: 7,672
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

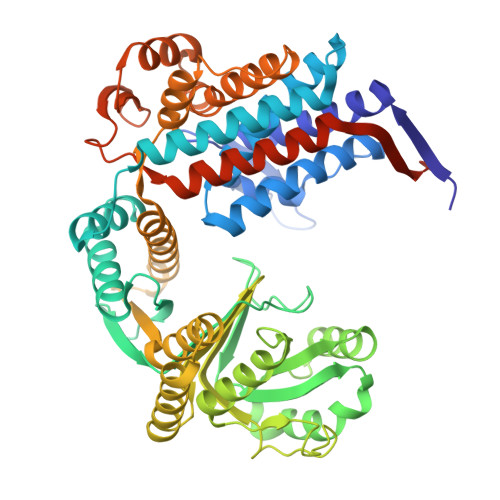

60 kDa chaperonin	A, B, C, D, E A, B, C, D, E, F, G, H, I, J, K, L, M, N	548	Escherichia coli	Mutation(s): 0 Gene Names: groEL, groL, mopA, BN17_41231, BU34_16740, ECs5124, LF82_0923 EC: 5.6.1.7
UniProt
Find proteins for P0A6F5 (Escherichia coli (strain K12)) Explore P0A6F5 Go to UniProtKB: P0A6F5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A6F5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1AS6 (Subject of Investigation/LOI) Query on A1AS6 Download:Ideal Coordinates CCD File SDF format, chain X [auth B] SDF format, chain WA [auth G] SDF format, chain S [auth A] SDF format, chain RA [auth F] SDF format, chain MA [auth E] SDF format, chain HA [auth D] SDF format, chain CA [auth C] MOL2 format, chain X [auth B] MOL2 format, chain WA [auth G] MOL2 format, chain S [auth A] MOL2 format, chain RA [auth F] MOL2 format, chain MA [auth E] MOL2 format, chain HA [auth D] MOL2 format, chain CA [auth C] mmCIF format, chain X [auth B] mmCIF format, chain WA [auth G] mmCIF format, chain S [auth A] mmCIF format, chain RA [auth F] mmCIF format, chain MA [auth E] mmCIF format, chain HA [auth D] mmCIF format, chain CA [auth C]	CA [auth C] HA [auth D] MA [auth E] RA [auth F] S [auth A] CA [auth C], HA [auth D], MA [auth E], RA [auth F], S [auth A], WA [auth G], X [auth B]	N-(2-{4-[4-(aminomethyl)benzene-1-sulfonamido]phenyl}-1,3-benzoxazol-5-yl)-5-chlorothiophene-2-sulfonamide C₂₄ H₁₉ Cl N₄ O₅ S₃ VBUCAAQVTLWTNJ-UHFFFAOYSA-N		Interactions Focus chain CA [auth C] Focus chain HA [auth D] Focus chain MA [auth E] Focus chain RA [auth F] Focus chain S [auth A] Focus chain WA [auth G] Focus chain X [auth B] Interactions & Density Focus chain CA [auth C] Focus chain HA [auth D] Focus chain MA [auth E] Focus chain RA [auth F] Focus chain S [auth A] Focus chain WA [auth G] Focus chain X [auth B]
ATP Query on ATP Download:Ideal Coordinates CCD File SDF format, chain Z [auth C] SDF format, chain YA [auth H] SDF format, chain WB [auth N] SDF format, chain U [auth B] SDF format, chain TA [auth G] SDF format, chain SB [auth M] SDF format, chain P [auth A] SDF format, chain OB [auth L] SDF format, chain OA [auth F] SDF format, chain KB [auth K] SDF format, chain JA [auth E] SDF format, chain GB [auth J] SDF format, chain EA [auth D] SDF format, chain CB [auth I] MOL2 format, chain Z [auth C] MOL2 format, chain YA [auth H] MOL2 format, chain WB [auth N] MOL2 format, chain U [auth B] MOL2 format, chain TA [auth G] MOL2 format, chain SB [auth M] MOL2 format, chain P [auth A] MOL2 format, chain OB [auth L] MOL2 format, chain OA [auth F] MOL2 format, chain KB [auth K] MOL2 format, chain JA [auth E] MOL2 format, chain GB [auth J] MOL2 format, chain EA [auth D] MOL2 format, chain CB [auth I] mmCIF format, chain Z [auth C] mmCIF format, chain YA [auth H] mmCIF format, chain WB [auth N] mmCIF format, chain U [auth B] mmCIF format, chain TA [auth G] mmCIF format, chain SB [auth M] mmCIF format, chain P [auth A] mmCIF format, chain OB [auth L] mmCIF format, chain OA [auth F] mmCIF format, chain KB [auth K] mmCIF format, chain JA [auth E] mmCIF format, chain GB [auth J] mmCIF format, chain EA [auth D] mmCIF format, chain CB [auth I]	CB [auth I] EA [auth D] GB [auth J] JA [auth E] KB [auth K] CB [auth I], EA [auth D], GB [auth J], JA [auth E], KB [auth K], OA [auth F], OB [auth L], P [auth A], SB [auth M], TA [auth G], U [auth B], WB [auth N], YA [auth H], Z [auth C]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain CB [auth I] Focus chain EA [auth D] Focus chain GB [auth J] Focus chain JA [auth E] Focus chain KB [auth K] Focus chain OA [auth F] Focus chain OB [auth L] Focus chain P [auth A] Focus chain SB [auth M] Focus chain TA [auth G] Focus chain U [auth B] Focus chain WB [auth N] Focus chain YA [auth H] Focus chain Z [auth C] Interactions & Density Focus chain CB [auth I] Focus chain EA [auth D] Focus chain GB [auth J] Focus chain JA [auth E] Focus chain KB [auth K] Focus chain OA [auth F] Focus chain OB [auth L] Focus chain P [auth A] Focus chain SB [auth M] Focus chain TA [auth G] Focus chain U [auth B] Focus chain WB [auth N] Focus chain YA [auth H] Focus chain Z [auth C]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain ZA [auth H] SDF format, chain YB [auth N] SDF format, chain XB [auth N] SDF format, chain W [auth B] SDF format, chain VA [auth G] SDF format, chain V [auth B] SDF format, chain UB [auth M] SDF format, chain UA [auth G] SDF format, chain TB [auth M] SDF format, chain R [auth A] SDF format, chain QB [auth L] SDF format, chain QA [auth F] SDF format, chain Q [auth A] SDF format, chain PB [auth L] SDF format, chain PA [auth F] SDF format, chain MB [auth K] SDF format, chain LB [auth K] SDF format, chain LA [auth E] SDF format, chain KA [auth E] SDF format, chain IB [auth J] SDF format, chain HB [auth J] SDF format, chain GA [auth D] SDF format, chain FA [auth D] SDF format, chain EB [auth I] SDF format, chain DB [auth I] SDF format, chain BA [auth C] SDF format, chain AB [auth H] SDF format, chain AA [auth C] MOL2 format, chain ZA [auth H] MOL2 format, chain YB [auth N] MOL2 format, chain XB [auth N] MOL2 format, chain W [auth B] MOL2 format, chain VA [auth G] MOL2 format, chain V [auth B] MOL2 format, chain UB [auth M] MOL2 format, chain UA [auth G] MOL2 format, chain TB [auth M] MOL2 format, chain R [auth A] MOL2 format, chain QB [auth L] MOL2 format, chain QA [auth F] MOL2 format, chain Q [auth A] MOL2 format, chain PB [auth L] MOL2 format, chain PA [auth F] MOL2 format, chain MB [auth K] MOL2 format, chain LB [auth K] MOL2 format, chain LA [auth E] MOL2 format, chain KA [auth E] MOL2 format, chain IB [auth J] MOL2 format, chain HB [auth J] MOL2 format, chain GA [auth D] MOL2 format, chain FA [auth D] MOL2 format, chain EB [auth I] MOL2 format, chain DB [auth I] MOL2 format, chain BA [auth C] MOL2 format, chain AB [auth H] MOL2 format, chain AA [auth C] mmCIF format, chain ZA [auth H] mmCIF format, chain YB [auth N] mmCIF format, chain XB [auth N] mmCIF format, chain W [auth B] mmCIF format, chain VA [auth G] mmCIF format, chain V [auth B] mmCIF format, chain UB [auth M] mmCIF format, chain UA [auth G] mmCIF format, chain TB [auth M] mmCIF format, chain R [auth A] mmCIF format, chain QB [auth L] mmCIF format, chain QA [auth F] mmCIF format, chain Q [auth A] mmCIF format, chain PB [auth L] mmCIF format, chain PA [auth F] mmCIF format, chain MB [auth K] mmCIF format, chain LB [auth K] mmCIF format, chain LA [auth E] mmCIF format, chain KA [auth E] mmCIF format, chain IB [auth J] mmCIF format, chain HB [auth J] mmCIF format, chain GA [auth D] mmCIF format, chain FA [auth D] mmCIF format, chain EB [auth I] mmCIF format, chain DB [auth I] mmCIF format, chain BA [auth C] mmCIF format, chain AB [auth H] mmCIF format, chain AA [auth C]	AA [auth C] AB [auth H] BA [auth C] DB [auth I] EB [auth I] AA [auth C], AB [auth H], BA [auth C], DB [auth I], EB [auth I], FA [auth D], GA [auth D], HB [auth J], IB [auth J], KA [auth E], LA [auth E], LB [auth K], MB [auth K], PA [auth F], PB [auth L], Q [auth A], QA [auth F], QB [auth L], R [auth A], TB [auth M], UA [auth G], UB [auth M], V [auth B], VA [auth G], W [auth B], XB [auth N], YB [auth N], ZA [auth H]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain AA [auth C] Focus chain AB [auth H] Focus chain BA [auth C] Focus chain DB [auth I] Focus chain EB [auth I] Focus chain FA [auth D] Focus chain GA [auth D] Focus chain HB [auth J] Focus chain IB [auth J] Focus chain KA [auth E] Focus chain LA [auth E] Focus chain LB [auth K] Focus chain MB [auth K] Focus chain PA [auth F] Focus chain PB [auth L] Focus chain Q [auth A] Focus chain QA [auth F] Focus chain QB [auth L] Focus chain R [auth A] Focus chain TB [auth M] Focus chain UA [auth G] Focus chain UB [auth M] Focus chain V [auth B] Focus chain VA [auth G] Focus chain W [auth B] Focus chain XB [auth N] Focus chain YB [auth N] Focus chain ZA [auth H] Interactions & Density Focus chain AA [auth C] Focus chain AB [auth H] Focus chain BA [auth C] Focus chain DB [auth I] Focus chain EB [auth I] Focus chain FA [auth D] Focus chain GA [auth D] Focus chain HB [auth J] Focus chain IB [auth J] Focus chain KA [auth E] Focus chain LA [auth E] Focus chain LB [auth K] Focus chain MB [auth K] Focus chain PA [auth F] Focus chain PB [auth L] Focus chain Q [auth A] Focus chain QA [auth F] Focus chain QB [auth L] Focus chain R [auth A] Focus chain TB [auth M] Focus chain UA [auth G] Focus chain UB [auth M] Focus chain V [auth B] Focus chain VA [auth G] Focus chain W [auth B] Focus chain XB [auth N] Focus chain YB [auth N] Focus chain ZA [auth H]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain Y [auth C] SDF format, chain XA [auth H] SDF format, chain VB [auth N] SDF format, chain T [auth B] SDF format, chain SA [auth G] SDF format, chain RB [auth M] SDF format, chain O [auth A] SDF format, chain NB [auth L] SDF format, chain NA [auth F] SDF format, chain JB [auth K] SDF format, chain IA [auth E] SDF format, chain FB [auth J] SDF format, chain DA [auth D] SDF format, chain BB [auth I] MOL2 format, chain Y [auth C] MOL2 format, chain XA [auth H] MOL2 format, chain VB [auth N] MOL2 format, chain T [auth B] MOL2 format, chain SA [auth G] MOL2 format, chain RB [auth M] MOL2 format, chain O [auth A] MOL2 format, chain NB [auth L] MOL2 format, chain NA [auth F] MOL2 format, chain JB [auth K] MOL2 format, chain IA [auth E] MOL2 format, chain FB [auth J] MOL2 format, chain DA [auth D] MOL2 format, chain BB [auth I] mmCIF format, chain Y [auth C] mmCIF format, chain XA [auth H] mmCIF format, chain VB [auth N] mmCIF format, chain T [auth B] mmCIF format, chain SA [auth G] mmCIF format, chain RB [auth M] mmCIF format, chain O [auth A] mmCIF format, chain NB [auth L] mmCIF format, chain NA [auth F] mmCIF format, chain JB [auth K] mmCIF format, chain IA [auth E] mmCIF format, chain FB [auth J] mmCIF format, chain DA [auth D] mmCIF format, chain BB [auth I]	BB [auth I] DA [auth D] FB [auth J] IA [auth E] JB [auth K] BB [auth I], DA [auth D], FB [auth J], IA [auth E], JB [auth K], NA [auth F], NB [auth L], O [auth A], RB [auth M], SA [auth G], T [auth B], VB [auth N], XA [auth H], Y [auth C]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain BB [auth I] Focus chain DA [auth D] Focus chain FB [auth J] Focus chain IA [auth E] Focus chain JB [auth K] Focus chain NA [auth F] Focus chain NB [auth L] Focus chain O [auth A] Focus chain RB [auth M] Focus chain SA [auth G] Focus chain T [auth B] Focus chain VB [auth N] Focus chain XA [auth H] Focus chain Y [auth C] Interactions & Density Focus chain BB [auth I] Focus chain DA [auth D] Focus chain FB [auth J] Focus chain IA [auth E] Focus chain JB [auth K] Focus chain NA [auth F] Focus chain NB [auth L] Focus chain O [auth A] Focus chain RB [auth M] Focus chain SA [auth G] Focus chain T [auth B] Focus chain VB [auth N] Focus chain XA [auth H] Focus chain Y [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-21

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM120350

Revision History (Full details and data files)

Version 1.0: 2026-01-21
Type: Initial release
