9MGF | pdb_00009mgf

beta-barrel assembly machine from Escherichia coli in a middle state of substrate assembly


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9MGF

This is version 1.2 of the entry. See complete history

Literature

Structures of folding intermediates on BAM show diverse substrates fold by a conserved mechanism.

Thomson, B.D.Marquez, M.D.Rawson, S.Dos Santos, T.M.A.Harrison, S.C.Kahne, D.

(2026) Proc Natl Acad Sci U S A 123: e2534936123-e2534936123

  • DOI: https://doi.org/10.1073/pnas.2534936123
  • Primary Citation Related Structures:
    9MGE, 9MGF, 9MGG, 9P1U

  • PubMed Abstract:

    The outer membranes of mitochondria, chloroplasts, and Gram-negative bacteria contain β-barrel membrane proteins that are assembled by conserved multisubunit machines. In bacteria, the β-barrel assembly machine (BAM) folds over a hundred compositionally different substrates into barrels that vary greatly in size. Some larger barrels require globular proteins to plug the barrel lumen. How a single machine can assemble such different barrels is unknown. Here we report three structures representing progressively folded stages of a 16-stranded barrel engaged with BAM, as well as the structure of a late-stage folding intermediate of a 26-stranded substrate folding around its soluble lipoprotein plug on BAM. We find that BAM catalyzes folding of these substrates by a uniform mechanism in which BAM undergoes major distortions to accommodate the nascent barrel.


  • Organizational Affiliation
    • Department of Chemistry and Chemical Biology, Harvard University, Cambridge, MA 02138.

Macromolecule Content

  • Total Structure Weight: 263.76 kDa
  • Atom Count: 12,080
  • Modeled Residue Count: 1,626
  • Deposited Residue Count: 2,389
  • Unique protein chains: 6
  • Unique nucleic acid chains: 1

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Outer membrane protein assembly factor BamA790Escherichia coli K-12Mutation(s): 1
Gene Names: bamAyaeTyzzNyzzYb0177JW0172
UniProt
Find proteins for P0A940 (Escherichia coli (strain K12))
Explore P0A940
Go to UniProtKB:  P0A940
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A940
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

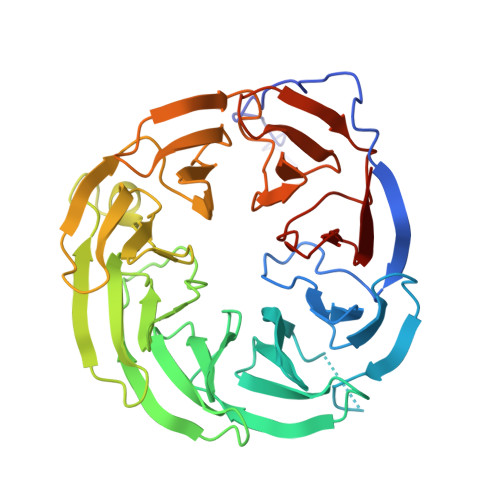

Outer membrane protein assembly factor BamB373Escherichia coli K-12Mutation(s): 0
Gene Names: bamByfgLb2512JW2496
UniProt
Find proteins for P77774 (Escherichia coli (strain K12))
Explore P77774
Go to UniProtKB:  P77774
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP77774
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

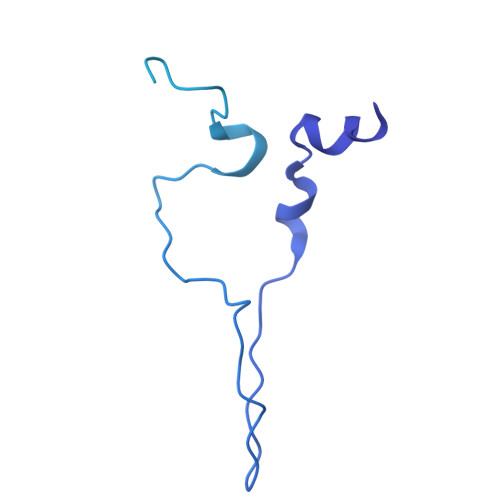

Outer membrane protein assembly factor BamC320Escherichia coli K-12Mutation(s): 0
Gene Names: bamCdapXnlpBb2477JW2462
UniProt
Find proteins for P0A903 (Escherichia coli (strain K12))
Explore P0A903
Go to UniProtKB:  P0A903
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A903
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

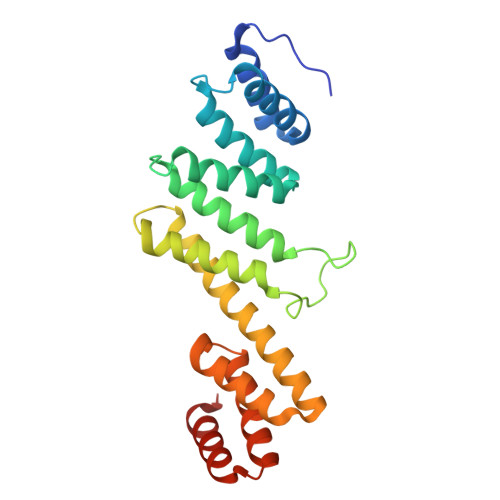

Outer membrane protein assembly factor BamD226Escherichia coli K-12Mutation(s): 0
Gene Names: bamDyfiOb2595JW2577
UniProt
Find proteins for P0AC02 (Escherichia coli (strain K12))
Explore P0AC02
Go to UniProtKB:  P0AC02
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AC02
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

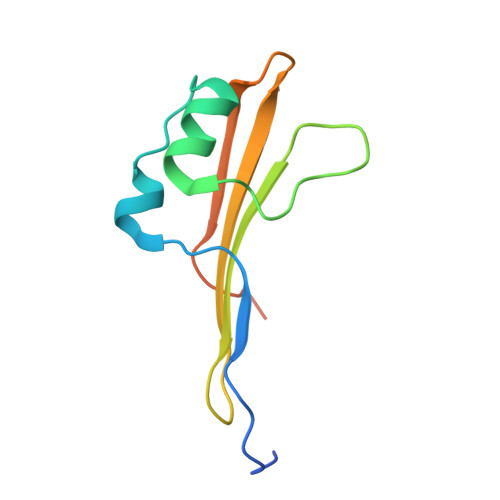

Outer membrane protein assembly factor BamE104Escherichia coli K-12Mutation(s): 0
Gene Names: bamEsmpAb2617JW2598
UniProt
Find proteins for P0A937 (Escherichia coli (strain K12))
Explore P0A937
Go to UniProtKB:  P0A937
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A937
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

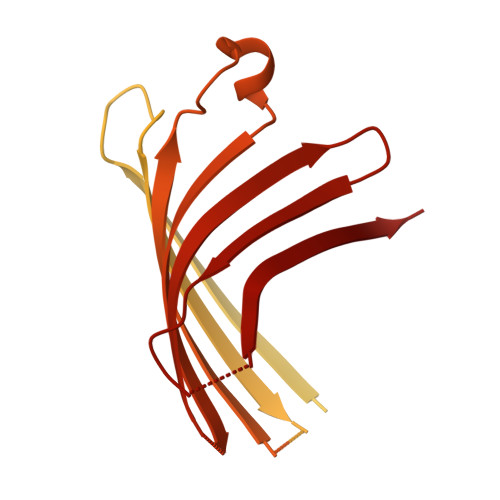

Outer membrane protein assembly factor BamA568Escherichia coli K-12Mutation(s): 1
Gene Names: bamAyaeTyzzNyzzYb0177JW0172
UniProt
Find proteins for P0A940 (Escherichia coli (strain K12))
Explore P0A940
Go to UniProtKB:  P0A940
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A940
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 7
MoleculeChains LengthOrganismImage

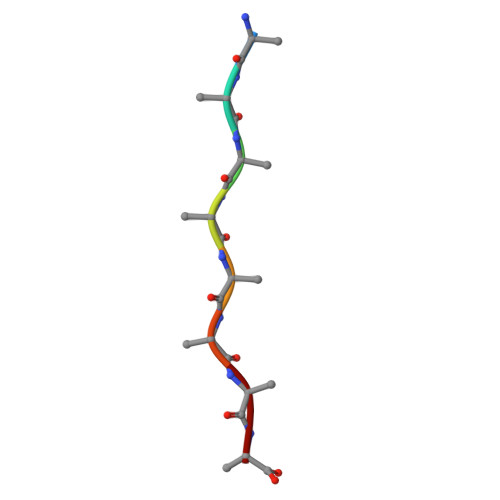

Unknown peptide8Escherichia coli K-12
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
MODEL REFINEMENTCoot
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR01AI081059
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesU19AI158028

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-17
    Type: Initial release
  • Version 1.1: 2025-12-24
    Changes: Data collection, Database references
  • Version 1.2: 2026-04-15
    Changes: Data collection, Database references
