9MC8 | pdb_00009mc8

Cryo-EM structure of human OAT1 in complex with PAH

PDB DOI: https://doi.org/10.2210/pdb9MC8/pdb
EM Map EMD-63792: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No
Membrane Protein: Yes MemProtMD

Deposited: 2025-03-17 Released: 2025-06-18
Deposition Author(s): Zhang, W., Zhang, Y.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.31 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9MC8

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of human OAT1 in complex with PAH

Zhang, W., Zhang, Y.

To be published.

Macromolecule Content

Total Structure Weight: 63.31 kDa
Atom Count: 3,721
Modeled Residue Count: 489
Deposited Residue Count: 572
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

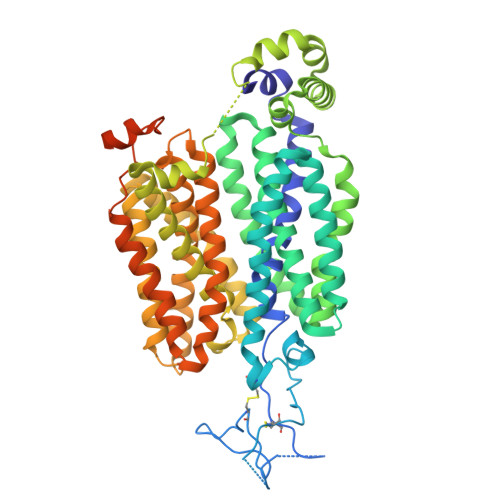

Molecule	Chains	Sequence Length	Organism	Details	Image
Isoform 2 of Solute carrier family 22 member 6	A	572	Homo sapiens	Mutation(s): 0 Gene Names: SLC22A6, OAT1, PAHT Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for Q4U2R8 (Homo sapiens) Explore Q4U2R8 Go to UniProtKB: Q4U2R8
PHAROS: Q4U2R8 GTEx: ENSG00000197901
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q4U2R8
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZWD (Subject of Investigation/LOI) Query on ZWD Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	N-(4-aminobenzoyl)glycine C₉ H₁₀ N₂ O₃ HSMNQINEKMPTIC-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.31 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-06-18

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-06-18
Type: Initial release
