9M2X | pdb_00009m2x

Decamer Msp1 from S.cerevisiae(with a catalytic dead mutation) in complex with an unknown peptide substrate

PDB DOI: https://doi.org/10.2210/pdb9M2X/pdb
EM Map EMD-63593: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Saccharomyces cerevisiae S288C, Escherichia coli BL21(DE3)
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2025-02-28 Released: 2026-03-04
Deposition Author(s): Chengdong, H., Simin, W., Xuan, C.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.27 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9M2X

This is version 1.0 of the entry. See complete history.

Literature

Decamer Msp1 from S.cerevisiae(with a catalytic dead mutation) in complex with an unknown peptide substrate

Chengdong, H., Simin, W., Xuan, C.

To be published.

Macromolecule Content

Total Structure Weight: 375.08 kDa
Atom Count: 23,937
Modeled Residue Count: 2,999
Deposited Residue Count: 3,322
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

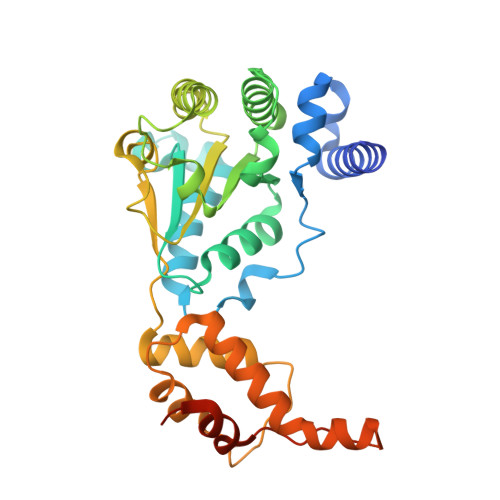

Outer mitochondrial transmembrane helix translocase	A [auth J] B [auth I] C [auth H] D [auth G] E [auth F] A [auth J], B [auth I], C [auth H], D [auth G], E [auth F], F [auth E], G [auth D], H [auth C], I [auth B], J [auth A]	330	Saccharomyces cerevisiae S288C	Mutation(s): 1 Gene Names: MSP1, YTA4, YGR028W EC: 7.4.2
UniProt
Find proteins for P28737 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P28737 Go to UniProtKB: P28737
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P28737
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

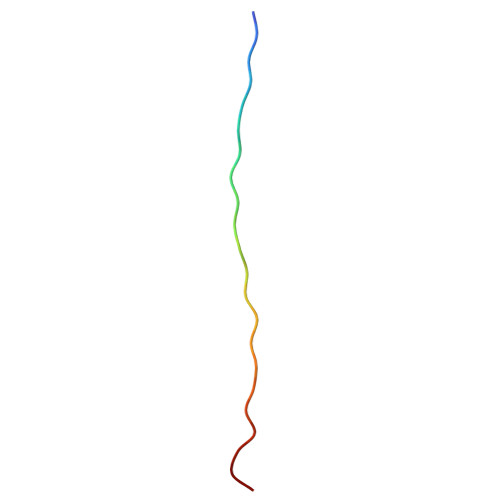

An unknown peptide substrate	K	22	Escherichia coli BL21(DE3)	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain BA [auth B] SDF format, chain DA [auth A] SDF format, chain L [auth J] SDF format, chain N [auth I] SDF format, chain P [auth H] SDF format, chain R [auth G] SDF format, chain T [auth F] SDF format, chain V [auth E] SDF format, chain X [auth D] SDF format, chain Z [auth C] MOL2 format, chain BA [auth B] MOL2 format, chain DA [auth A] MOL2 format, chain L [auth J] MOL2 format, chain N [auth I] MOL2 format, chain P [auth H] MOL2 format, chain R [auth G] MOL2 format, chain T [auth F] MOL2 format, chain V [auth E] MOL2 format, chain X [auth D] MOL2 format, chain Z [auth C] mmCIF format, chain BA [auth B] mmCIF format, chain DA [auth A] mmCIF format, chain L [auth J] mmCIF format, chain N [auth I] mmCIF format, chain P [auth H] mmCIF format, chain R [auth G] mmCIF format, chain T [auth F] mmCIF format, chain V [auth E] mmCIF format, chain X [auth D] mmCIF format, chain Z [auth C]	BA [auth B] DA [auth A] L [auth J] N [auth I] P [auth H] BA [auth B], DA [auth A], L [auth J], N [auth I], P [auth H], R [auth G], T [auth F], V [auth E], X [auth D], Z [auth C]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain BA [auth B] Focus chain DA [auth A] Focus chain L [auth J] Focus chain N [auth I] Focus chain P [auth H] Focus chain R [auth G] Focus chain T [auth F] Focus chain V [auth E] Focus chain X [auth D] Focus chain Z [auth C] Interactions & Density Focus chain BA [auth B] Focus chain DA [auth A] Focus chain L [auth J] Focus chain N [auth I] Focus chain P [auth H] Focus chain R [auth G] Focus chain T [auth F] Focus chain V [auth E] Focus chain X [auth D] Focus chain Z [auth C]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain AA [auth C] SDF format, chain CA [auth B] SDF format, chain EA [auth A] SDF format, chain M [auth J] SDF format, chain O [auth I] SDF format, chain Q [auth H] SDF format, chain S [auth G] SDF format, chain U [auth F] SDF format, chain W [auth E] SDF format, chain Y [auth D] MOL2 format, chain AA [auth C] MOL2 format, chain CA [auth B] MOL2 format, chain EA [auth A] MOL2 format, chain M [auth J] MOL2 format, chain O [auth I] MOL2 format, chain Q [auth H] MOL2 format, chain S [auth G] MOL2 format, chain U [auth F] MOL2 format, chain W [auth E] MOL2 format, chain Y [auth D] mmCIF format, chain AA [auth C] mmCIF format, chain CA [auth B] mmCIF format, chain EA [auth A] mmCIF format, chain M [auth J] mmCIF format, chain O [auth I] mmCIF format, chain Q [auth H] mmCIF format, chain S [auth G] mmCIF format, chain U [auth F] mmCIF format, chain W [auth E] mmCIF format, chain Y [auth D]	AA [auth C] CA [auth B] EA [auth A] M [auth J] O [auth I] AA [auth C], CA [auth B], EA [auth A], M [auth J], O [auth I], Q [auth H], S [auth G], U [auth F], W [auth E], Y [auth D]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AA [auth C] Focus chain CA [auth B] Focus chain EA [auth A] Focus chain M [auth J] Focus chain O [auth I] Focus chain Q [auth H] Focus chain S [auth G] Focus chain U [auth F] Focus chain W [auth E] Focus chain Y [auth D] Interactions & Density Focus chain AA [auth C] Focus chain CA [auth B] Focus chain EA [auth A] Focus chain M [auth J] Focus chain O [auth I] Focus chain Q [auth H] Focus chain S [auth G] Focus chain U [auth F] Focus chain W [auth E] Focus chain Y [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.27 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
