9LZQ | pdb_00009lzq

Crystal structure of SARS main protease in complex with Ibuzatrelvir Pomotrelvir

PDB DOI: https://doi.org/10.2210/pdb9LZQ/pdb

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome-related coronavirus
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-02-22 Released: 2026-03-04
Deposition Author(s): Li, W.W., Zhang, J., Li, J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free:
0.248 (Depositor), 0.248 (DCC)
R-Value Work:
0.219 (Depositor), 0.219 (DCC)
R-Value Observed:
0.220 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LZQ

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of SARS main protease in complex with Ibuzatrelvir Pomotrelvir

Li, W.W., Zhang, J., Li, J.

To be published.

Macromolecule Content

Total Structure Weight: 67.26 kDa
Atom Count: 4,736
Modeled Residue Count: 598
Deposited Residue Count: 598
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

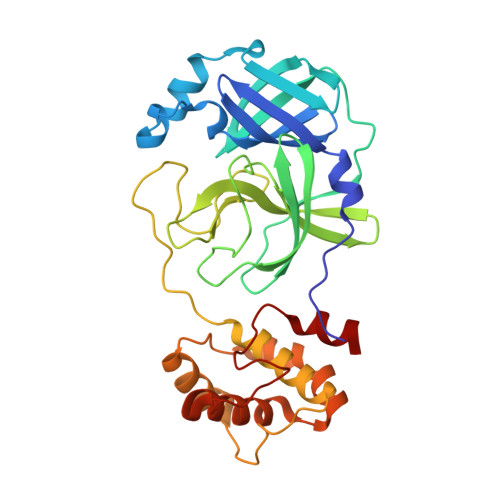

3C-like proteinase nsp5	A, B	299	Severe acute respiratory syndrome-related coronavirus	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0C6X7 (Severe acute respiratory syndrome coronavirus) Explore P0C6X7 Go to UniProtKB: P0C6X7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0C6X7
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZQB (Subject of Investigation/LOI) Query on ZQB Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	Pomotrelvir bound form C₂₃ H₂₈ Cl N₅ O₃ IOEBZYOQTDUOBG-UZWGZPNFSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free: 0.248 (Depositor), 0.248 (DCC)
R-Value Work: 0.219 (Depositor), 0.219 (DCC)
R-Value Observed: 0.220 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 55.115	α = 93.136
b = 60.358	β = 102.503
c = 68.168	γ = 108.54

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
