9LYU | pdb_00009lyu

Crystal structure of glycerol kinase from Entamoeba histolytica (Ligand-free form)

• PDB DOI: https://doi.org/10.2210/pdb9LYU/pdb

• Classification: TRANSFERASE
• Organism(s): Entamoeba histolytica
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-02-21 Released: 2026-02-25
• Deposition Author(s): Balogun, E.O., Jeelani, G., Hane, E., Kondo, H., Hasegawa, Y., Kojima, C., Chishima, T., Harada, S., Kishikawa, J., Nozaki, T., Shiba, T.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:
  0.239 (Depositor), 0.243 (DCC)
• R-Value Work:
  0.182 (Depositor), 0.192 (DCC)
• R-Value Observed:
  0.185 (Depositor)

Starting Model: experimental

Literature

Crystal structure of glycerol kinase from Entamoeba histolytica (Ligand-free form)

Balogun, E.O., Jeelani, G., Hane, E., Kondo, H., Hasegawa, Y., Kojima, C., Chishima, T., Harada, S., Kishikawa, J., Nozaki, T., Shiba, T.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 108.16 kDa
• Atom Count: 7,769
• Modeled Residue Count: 972
• Deposited Residue Count: 972
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
glycerol kinase	A	487	Entamoeba histolytica	Mutation(s): 0  Gene Names: CL6EHI_164850 EC: 2.7.1.30
UniProt
Find proteins for A0A5K1V6Z1 (Entamoeba histolytica) Explore A0A5K1V6Z1  Go to UniProtKB:  A0A5K1V6Z1

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

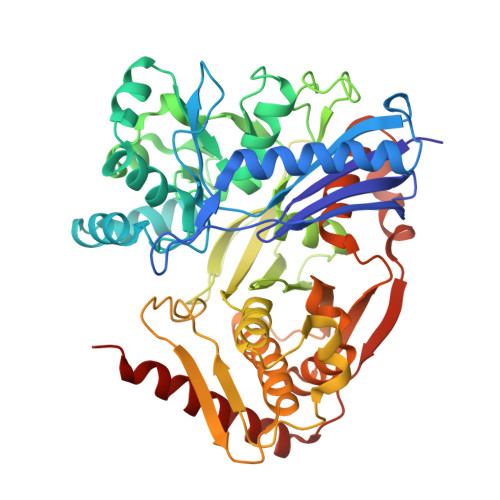

glycerol kinase	B	485	Entamoeba histolytica	Mutation(s): 0  Gene Names: CL6EHI_164850 EC: 2.7.1.30
UniProt
Find proteins for A0A5K1V6Z1 (Entamoeba histolytica) Explore A0A5K1V6Z1  Go to UniProtKB:  A0A5K1V6Z1

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
MES (Subject of Investigation/LOI)	C [auth A], E [auth B]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C6 H13 N O4 S SXGZJKUKBWWHRA-UHFFFAOYSA-N
EDO (Subject of Investigation/LOI)	D [auth A], F [auth B]	1,2-ETHANEDIOL C2 H6 O2 LYCAIKOWRPUZTN-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:  0.239 (Depositor), 0.243 (DCC)
• R-Value Work:  0.182 (Depositor), 0.192 (DCC)
• R-Value Observed: 0.185 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 57.915	α = 90
b = 82.915	β = 90
c = 205.91	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
XDS	data scaling
MOLREP	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-02-25
Deposition Author(s): Balogun, E.O., Jeelani, G., Hane, E., Kondo, H., Hasegawa, Y., Kojima, C., Chishima, T., Harada, S., Kishikawa, J., Nozaki, T., Shiba, T.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-02-25
  Type: Initial release
