9LX4 | pdb_00009lx4

Crystal structure of the de novo designed protein ZZ4

PDB DOI: https://doi.org/10.2210/pdb9LX4/pdb

Classification: DE NOVO PROTEIN
Organism(s): Escherichia coli
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-02-17 Released: 2025-06-04
Deposition Author(s): Zhao, Z., Hattori, M.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.03 Å
R-Value Free:
0.290 (Depositor), 0.287 (DCC)
R-Value Work:
0.223 (Depositor), 0.223 (DCC)
R-Value Observed:
0.226 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9LX4

This is version 1.1 of the entry. See complete history.

Literature

Bioinformatics classification of the MgtE Mg2+ channel and de novo protein design for the stabilization of its novel subclass

Zhao, Z., Omae, K., Iwasaki, W., Zhang, Z., Pan, F., Lee, E., Ito, K., Hattori, M.

(2026) Acta Biochim Biophys Sin (Shanghai)

DOI: https://doi.org/10.3724/abbs.2025224

Macromolecule Content

Total Structure Weight: 38.43 kDa
Atom Count: 2,708
Modeled Residue Count: 350
Deposited Residue Count: 354
Unique protein chains: 1

Macromolecules

Find similar proteins by:

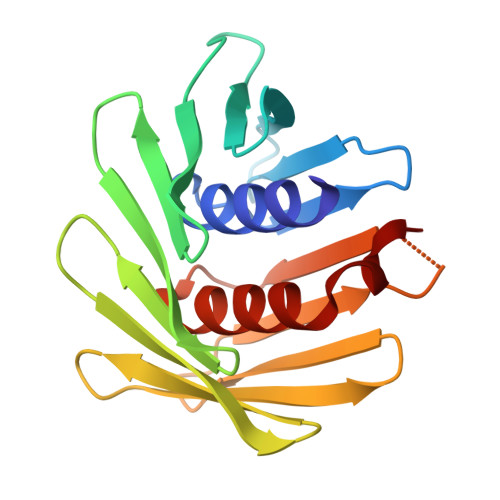

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
ZZ4	A, B	177	Escherichia coli	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
EPE Query on EPE Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID C₈ H₁₈ N₂ O₄ S JKMHFZQWWAIEOD-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.03 Å
R-Value Free: 0.290 (Depositor), 0.287 (DCC)
R-Value Work: 0.223 (Depositor), 0.223 (DCC)
R-Value Observed: 0.226 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 57.35	α = 90
b = 58.295	β = 112.08
c = 67.318	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PARROT	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-06-04

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-06-04
Type: Initial release
Version 1.1: 2026-05-06
Changes: Database references
