9LGW | pdb_00009lgw

Cryo-EM structure of SiAgo-Aga1 complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9LGW

This is version 1.0 of the entry. See complete history

Literature

Structural and mechanistic insights into the activation of a short prokaryotic argonaute system from archaeon Sulfolobus islandicus.

Dai, Z.Chen, Y.Guan, Z.Chen, X.Tan, K.Yang, K.Yan, X.Liu, Y.Gong, Z.Han, W.Zou, T.

(2025) Nucleic Acids Res 53

  • DOI: https://doi.org/10.1093/nar/gkaf059
  • Primary Citation Related Structures:
    8ZNJ, 9LGW

  • PubMed Abstract:

    Prokaryotic Argonaute proteins (pAgos) defend the host against invading nucleic acids, including plasmids and viruses. Short pAgo systems confer immunity by inducing cell death upon detecting invading nucleic acids. However, the activation mechanism of the SiAgo system, comprising a short pAgo from the archaeon Sulfolobus islandicus and its associated proteins SiAga1 and SiAga2, remains largely unknown. Here, we determined the cryo-electron microscopy structures of the SiAgo-Aga1 apo complex and the RNA-DNA-bound SiAgo-Aga1 complex at resolutions of 2.7 and 3.0 Å, respectively. Our results revealed that a positively charged pocket is generated from the interaction between SiAgo and SiAga1, exhibiting an architecture similar to APAZ-pAgo of short pAgo systems and accommodating the nucleic acids. Further investigation elucidated the conserved mechanism of nucleic acid recognition by SiAgo-Aga1. Both the SiAgo-Aga1 interaction and nucleic acid recognition by the complex are essential for antiviral defense. Biochemical and structural analyses demonstrated that SiAgo-Aga1 undergoes extensive conformational changes upon binding to the RNA-DNA duplex, thereby licensing its interaction with the effector SiAga2 to trigger the immune response. Overall, our findings highlight the evolutionary conservation of Agos across phylogenetic clades and provide structural insights into the activation mechanism of the SiAgo system.


  • Organizational Affiliation
    • National Key Laboratory of Agricultural Microbiology, Hubei Hongshan Laboratory, Huazhong Agricultural University, 430070 Wuhan, Hubei, China.

Macromolecule Content

  • Total Structure Weight: 81.88 kDa
  • Atom Count: 4,960
  • Modeled Residue Count: 603
  • Deposited Residue Count: 702
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

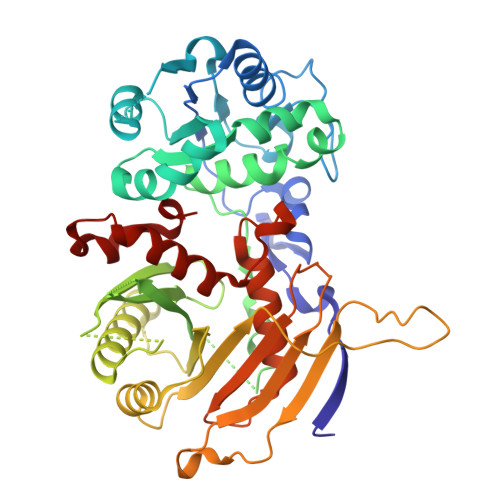

Piwi domain-containing protein459Saccharolobus islandicus M.16.4Mutation(s): 0
Gene Names: M164_1614
UniProt
Find proteins for C4KI01 (Saccharolobus islandicus (strain M.16.4 / Kamchatka #3))
Explore C4KI01
Go to UniProtKB:  C4KI01
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4KI01
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

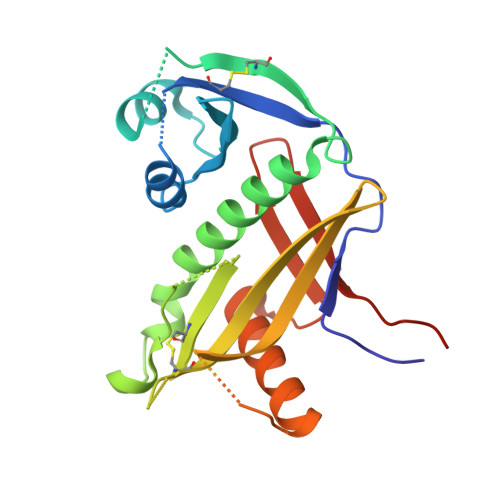

SiAgo-associated protein1, SiAga1243Saccharolobus islandicus M.16.4Mutation(s): 0
Gene Names: M164_1613
UniProt
Find proteins for C4KI00 (Saccharolobus islandicus (strain M.16.4 / Kamchatka #3))
Explore C4KI00
Go to UniProtKB:  C4KI00
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4KI00
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-19
    Type: Initial release
