9KVI | pdb_00009kvi

A Cryo_EM structure of 5_HT1A complex with DMT


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.54 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9KVI

This is version 1.1 of the entry. See complete history

Literature

Structural Pharmacology of Bufotenine Derivatives in Activating the 5-HT 1A Receptor for Therapeutic Potential in Depression and Anxiety.

Li, S.J.Yuan, Q.N.Wu, W.Y.Chen, Z.H.Chen, D.Shan, H.Chu, Q.Y.Hu, W.Wu, K.Liu, T.Zhu, Y.Y.Hou, L.Zhou, J.Duan, J.Duan, J.A.Xu, H.E.Ma, H.Y.

(2025) Research (Wash D C) 8: 0987-0987

  • DOI: https://doi.org/10.34133/research.0987
  • Primary Citation Related Structures:
    9KVG, 9KVH, 9KVI

  • PubMed Abstract:

    The 5-HT 1A receptor is a critical target in the treatment of depression and anxiety. Bufotenine derivatives, such as 5-methoxy- N , N -dimethyltryptamine (5-MeO-DMT), 5-hydroxy- N , N -dimethyltryptamine (5-OH-DMT), and 5-hydroxy- N , N , N -dimethyltryptamine-derived from traditional Chinese medicine-have shown antidepressant potential. However, the structural basis of their interaction with 5-HT 1A and their pharmacological profiles remain incompletely understood. This study investigated bufotenine derivatives acting on multiple serotonin receptors, highlighting 5-HT 1A as a key mediator of antidepressant effects while recognizing 5-HT 2A as primarily responsible for hallucinogenic outcomes, to identify candidates with therapeutic efficacy but reduced hallucinogenic liability. We determined the cryo-electron microscopy structures of 5-HT 1A bound to selected bufotenine derivatives. Functional assays in mice, including behavioral tests and receptor activation studies, were used to evaluate the antidepressant of each compound. Structural analysis revealed that all bufotenine derivatives engage conserved motifs within the 5-HT 1A binding pocket, with 5-OH-DMT displaying a distinct interaction pattern. Behavioral assays showed that 5-OH-DMT and 5-MeO-DMT retained strong antidepressant and anxiolytic effects. These pharmacological differences correlate with their unique receptor binding conformation. This study delineated the structural pharmacology of bufotenine derivatives at the 5-HT 1A receptor, identifying 5-OH-DMT and 5-MeO-DMT as promising antidepressant and anxiolytic candidates. The findings establish a molecular framework for the development of next-generation nonhallucinogenic therapeutics aimed at 5-HT 1A .


  • Organizational Affiliation
    • Jiangsu Collaborative Innovation Center of Chinese Medicinal Resources Industrialization and Jiangsu Key Laboratory for High Technology Research of TCM Formulae, College of Pharmacy, Nanjing University of Chinese Medicine, Nanjing 210023, China.

Macromolecule Content

  • Total Structure Weight: 158.03 kDa
  • Atom Count: 8,917
  • Modeled Residue Count: 1,125
  • Deposited Residue Count: 1,414
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

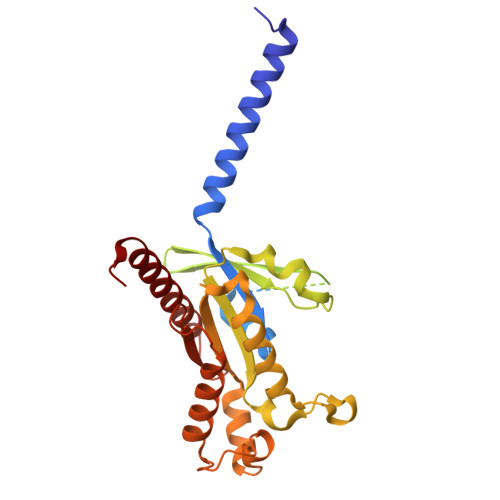

Guanine nucleotide-binding protein G(i) subunit alpha-1354Homo sapiensMutation(s): 0
Gene Names: GNAI1
EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63096 (Homo sapiens)
Explore P63096
Go to UniProtKB:  P63096
PHAROS:  P63096
GTEx:  ENSG00000127955
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63096
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

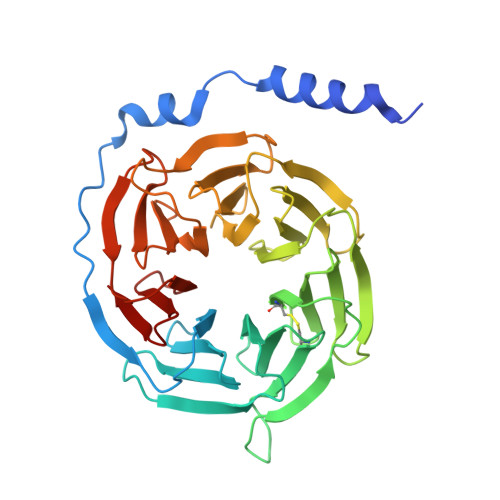

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1344Homo sapiensMutation(s): 0
Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens)
Explore P62873
Go to UniProtKB:  P62873
PHAROS:  P62873
GTEx:  ENSG00000078369
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62873
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
SCFV16C [auth E]247Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

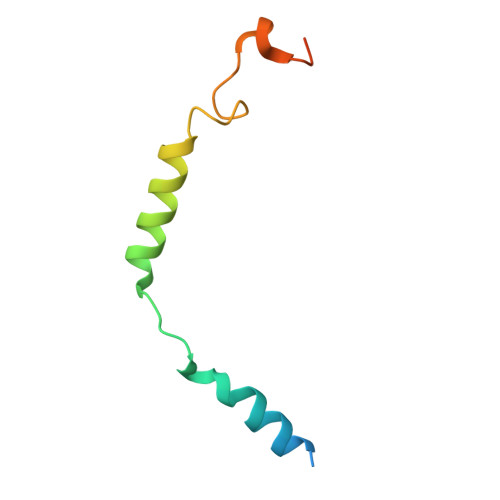

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2D [auth G]71Homo sapiensMutation(s): 0
Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens)
Explore P59768
Go to UniProtKB:  P59768
PHAROS:  P59768
GTEx:  ENSG00000186469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59768
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

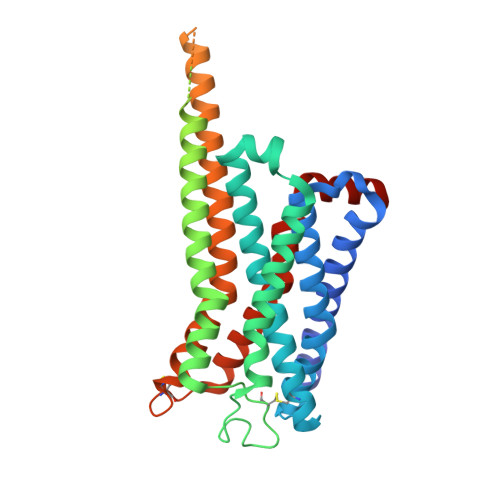

5-hydroxytryptamine receptor 1AE [auth R]398Homo sapiensMutation(s): 0
Gene Names: HTR1AADRB2RL1ADRBRL1
UniProt & NIH Common Fund Data Resources
Find proteins for P08908 (Homo sapiens)
Explore P08908
Go to UniProtKB:  P08908
PHAROS:  P08908
GTEx:  ENSG00000178394
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08908
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
J40

Query on J40



Download:Ideal Coordinates CCD File
I [auth R][(2R)-1-[oxidanyl-[(2R,3R,5S,6R)-2,3,5,6-tetrakis(oxidanyl)-4-phosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-3-tetradecanoyloxy-propan-2-yl] (5E,8E)-hexadeca-5,8,11,14-tetraenoate
C39 H68 O16 P2
KFDYJTVTHSTWNE-UDQXHECVSA-N
CHO

Query on CHO



Download:Ideal Coordinates CCD File
G [auth R]GLYCOCHENODEOXYCHOLIC ACID
C26 H43 N O5
GHCZAUBVMUEKKP-GYPHWSFCSA-N
CLR

Query on CLR



Download:Ideal Coordinates CCD File
H [auth R]CHOLESTEROL
C27 H46 O
HVYWMOMLDIMFJA-DPAQBDIFSA-N
A1EG8
(Subject of Investigation/LOI)

Query on A1EG8



Download:Ideal Coordinates CCD File
F [auth R]Bufotenin
C12 H16 N2 O
VTTONGPRPXSUTJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.54 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-03
    Type: Initial release
  • Version 1.1: 2026-06-17
    Changes: Data collection, Database references
