9KQY | pdb_00009kqy

The co-crystal structure of DYRK2 with TSL2109

PDB DOI: https://doi.org/10.2210/pdb9KQY/pdb

Classification: CELL CYCLE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-11-27 Released: 2025-12-03
Deposition Author(s): Tong, C.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.20 Å
R-Value Free:
0.276 (Depositor), 0.273 (DCC)
R-Value Work:
0.228 (Depositor), 0.226 (DCC)
R-Value Observed:
0.233 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 9KQY

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

The co-crystal structure of DYRK2 with TSL2109

Tong, C.

To be published.

Macromolecule Content

Total Structure Weight: 94.31 kDa
Atom Count: 6,301
Modeled Residue Count: 774
Deposited Residue Count: 814
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

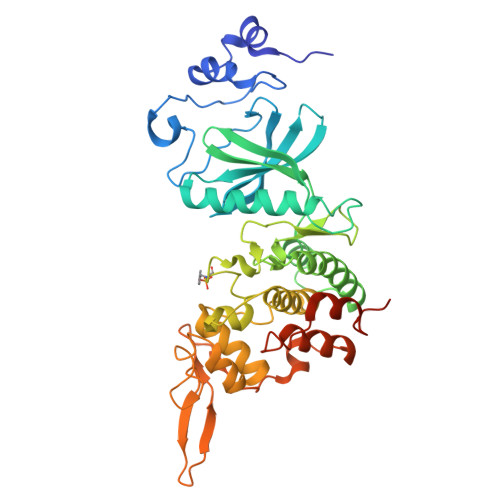

Dual specificity tyrosine-phosphorylation-regulated kinase 2	A [auth B], B [auth A]	407	Homo sapiens	Mutation(s): 0 Gene Names: DYRK2 EC: 2.7.12.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q92630 (Homo sapiens) Explore Q92630 Go to UniProtKB: Q92630
PHAROS: Q92630 GTEx: ENSG00000127334
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q92630
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1L6I (Subject of Investigation/LOI) Query on A1L6I Download:Ideal Coordinates CCD File SDF format, chain C [auth B] MOL2 format, chain C [auth B] mmCIF format, chain C [auth B]	C [auth B]	[6-[[4-[2-(diethylamino)-1,3-benzothiazol-6-yl]-5-fluoranyl-pyrimidin-2-yl]amino]pyridin-3-yl]-(4-propan-2-ylpiperazin-1-yl)methanone C₂₈ H₃₃ F N₈ O S QXLHPZGOJNRMDZ-UHFFFAOYSA-N		Interactions Focus chain C [auth B] Interactions & Density Focus chain C [auth B]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
PTR Query on PTR	A [auth B], B [auth A]	L-PEPTIDE LINKING	C₉ H₁₂ N O₆ P		TYR

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.20 Å
R-Value Free: 0.276 (Depositor), 0.273 (DCC)
R-Value Work: 0.228 (Depositor), 0.226 (DCC)
R-Value Observed: 0.233 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 223.166	α = 90
b = 71.961	β = 99.14
c = 70.229	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-03

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	82304293

Revision History (Full details and data files)

Version 1.0: 2025-12-03
Type: Initial release
Version 1.1: 2025-12-17
Changes: Database references, Structure summary
