9KQ0 | pdb_00009kq0

Structure of TolQRA complex at pH 8.0 from E.coli

• PDB DOI: https://doi.org/10.2210/pdb9KQ0/pdb
• EM Map EMD-62493: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Escherichia coli K-12, Saccharomyces cerevisiae S288C
• Expression System: Escherichia coli BL21
• Mutation(s): No


• Deposited: 2024-11-24 Released: 2026-03-04
• Deposition Author(s): Dong, C., Zhang, Z.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of TolQRA complex at pH 8.0 from E.coli

Dong, C., Zhang, Z.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 12-mer - A5B4C2D1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 12-mer - A6B5C1

Local Symmetry: Cyclic - C5  (Explore in 3D)
Local Stoichiometry: Homo 5-mer - A5 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - C2

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 452.16 kDa
• Atom Count: 10,048
• Modeled Residue Count: 1,289
• Deposited Residue Count: 4,229
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

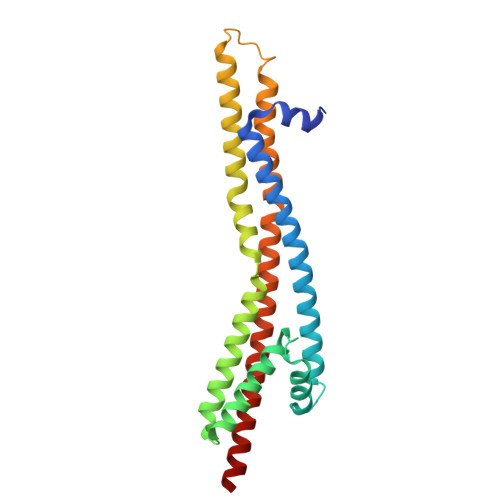

Tol-Pal system protein TolQ	A, B, C, D, E	232	Escherichia coli K-12	Mutation(s): 0  Gene Names: tolQ, fii, b0737, JW0727
UniProt
Find proteins for P0ABU9 (Escherichia coli (strain K12)) Explore P0ABU9  Go to UniProtKB:  P0ABU9

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

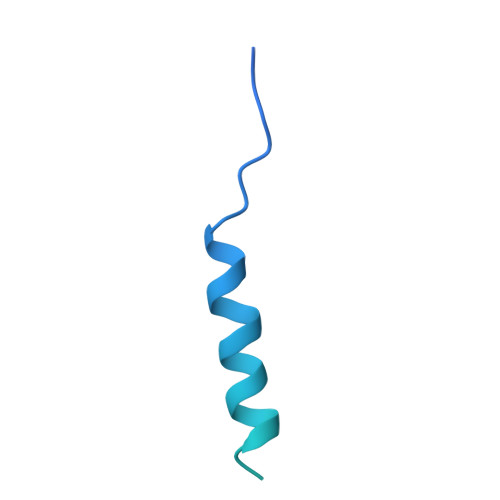

Tol-Pal system protein TolR	F, G	142	Escherichia coli K-12	Mutation(s): 0  Gene Names: tolR, b0738, JW0728
UniProt
Find proteins for P0ABV6 (Escherichia coli (strain K12)) Explore P0ABV6  Go to UniProtKB:  P0ABV6

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Ubiquitin-like protein SMT3,Tol-Pal system protein TolA	H, I, J, K, L	557	Saccharomyces cerevisiae S288C, Escherichia coli K-12 This entity is chimeric	Mutation(s): 0  Gene Names: SMT3, YDR510W, D9719.15, tolA, cim, excC, lky, b0739, JW0729
UniProt
Find proteins for P19934 (Escherichia coli (strain K12)) Explore P19934  Go to UniProtKB:  P19934
Find proteins for Q12306 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q12306  Go to UniProtKB:  Q12306
UniProt Groups	P19934Q12306

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.60 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-03-04
Deposition Author(s): Dong, C., Zhang, Z.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2026-03-04
  Type: Initial release
