9K6Y | pdb_00009k6y

Cryo-EM structure of SARS-CoV-2 prototype spike protein in complex with H4 Fab (local refinement)

PDB DOI: https://doi.org/10.2210/pdb9K6Y/pdb
EM Map EMD-62140: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): Homo sapiens, Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-10-22 Released: 2025-10-29
Deposition Author(s): Zhang, G., Li, L.J., Wu, Y., Gao, G.F.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.67 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9K6Y

This is version 1.0 of the entry. See complete history.

Literature

Structural basis of SARS-CoV-2 prototype spike protein binding to H4 Fab

Zhang, G., Li, L.J., Wu, Y., Gao, G.F.

To be published.

Macromolecule Content

Total Structure Weight: 52.04 kDa
Atom Count: 3,394
Modeled Residue Count: 429
Deposited Residue Count: 462
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

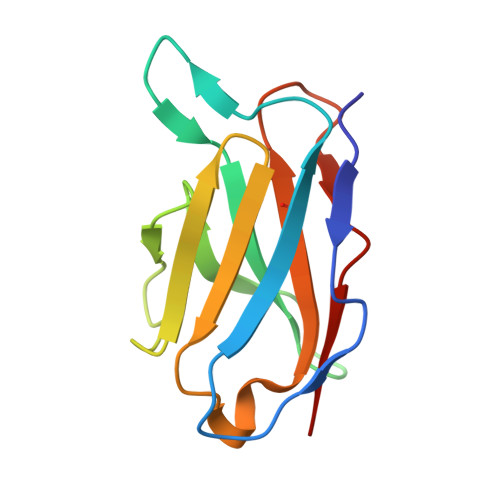

Light chain of H4	A [auth L]	113	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

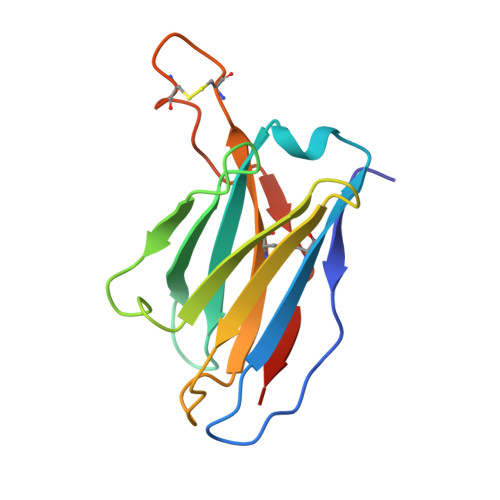

Heavy chain of H4	B [auth H]	126	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

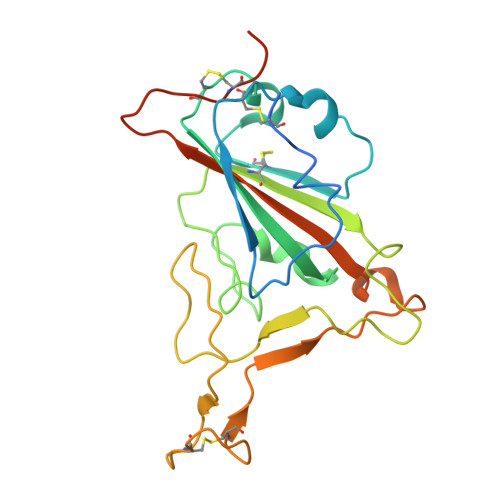

Spike protein S1	C [auth R]	223	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain C [auth R]	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D [auth A]	2		N-Glycosylation	Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.67 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
