9JPH | pdb_00009jph

crRNA-guided surveillance (Csy) complex

PDB DOI: https://doi.org/10.2210/pdb9JPH/pdb
NAKB: 9JPH
EM Map EMD-61700: EMDB EMDataResource

Classification: RNA BINDING PROTEIN/RNA
Organism(s): Pseudomonas aeruginosa UCBPP-PA14
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2024-09-26 Released: 2026-04-01
Deposition Author(s): Wang, W.H., Guan, L.L., Du, X.Y., Feng, Y.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.11 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9JPH

This is version 1.0 of the entry. See complete history.

Literature

crRNA-guided surveillance (Csy) complex

Wang, W.H., Guan, L.L., Du, X.Y., Feng, Y.

To be published.

Macromolecule Content

Total Structure Weight: 334.32 kDa
Atom Count: 21,469
Modeled Residue Count: 2,706
Deposited Residue Count: 2,912
Unique protein chains: 3
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

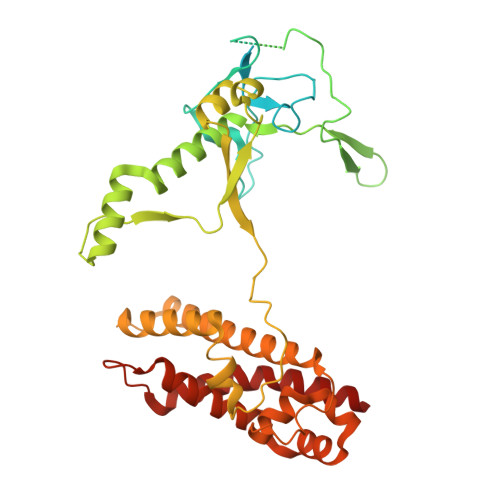

Type I-F CRISPR-associated protein Csy1	A	473	Pseudomonas aeruginosa UCBPP-PA14	Mutation(s): 0 Gene Names: csy1, F7O97_17165
UniProt
Find proteins for A0A643IV20 (Pseudomonas aeruginosa) Explore A0A643IV20 Go to UniProtKB: A0A643IV20
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A643IV20
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

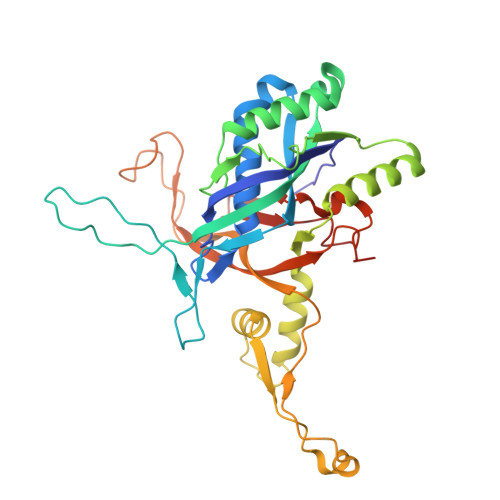

Type I-F CRISPR-associated protein Csy2	B	327	Pseudomonas aeruginosa UCBPP-PA14	Mutation(s): 0 Gene Names: csy2, F7O97_17160
UniProt
Find proteins for A0A643IWA1 (Pseudomonas aeruginosa) Explore A0A643IWA1 Go to UniProtKB: A0A643IWA1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A643IWA1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

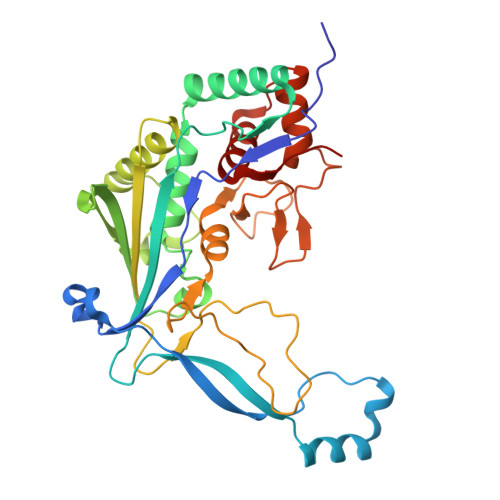

Type I-F CRISPR-associated protein Csy3	C, D, E, F, G C, D, E, F, G, H	342	Pseudomonas aeruginosa UCBPP-PA14	Mutation(s): 0 Gene Names: csy3, F7O97_17155
UniProt
Find proteins for A0A643IYA9 (Pseudomonas aeruginosa) Explore A0A643IYA9 Go to UniProtKB: A0A643IYA9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A643IYA9
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 4

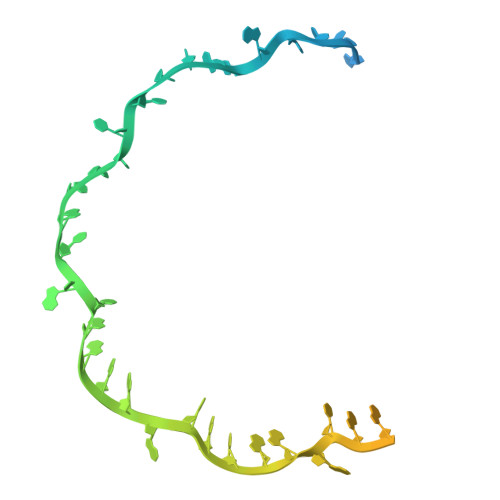

RNA (60-MER)	I [auth J]	60	Pseudomonas aeruginosa UCBPP-PA14
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.11 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32000901

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
