9IUJ | pdb_00009iuj

Integrin alpha-v beta-3 in complex with rhodostomin

PDB DOI: https://doi.org/10.2210/pdb9IUJ/pdb
EM Map EMD-60907: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens, Calloselasma rhodostoma
Expression System: Cricetulus griseus, Komagataella pastoris
Mutation(s): No

Deposited: 2024-07-22 Released: 2025-07-30
Deposition Author(s): Wang, Y.T., Chuang, W.J.
Funding Organization(s): National Science Council (NSC, Taiwan)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.78 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Integrin alpha-v beta-3 in complex with rhodostomin

Wang, Y.T., Chuang, W.J.

To be published.

Macromolecule Content

Total Structure Weight: 245.63 kDa
Atom Count: 10,072
Modeled Residue Count: 1,268
Deposited Residue Count: 2,171
Unique protein chains: 3

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

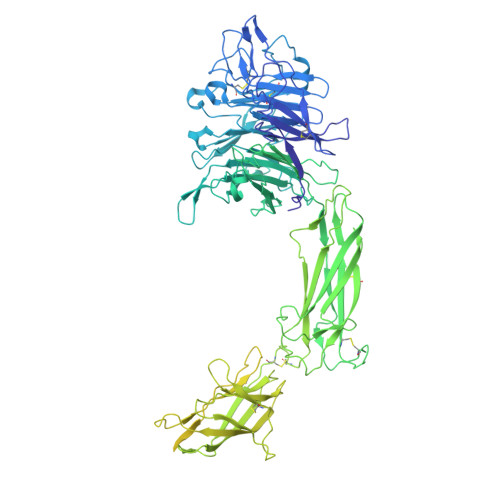

Integrin alpha-V,Integrin alpha-V,Uncharacterized protein DKFZp686C11235	A	1,184	Homo sapiens	Mutation(s): 0 Gene Names: ITGAV, MSK8, VNRA, VTNR, DKFZp686C11235
UniProt & NIH Common Fund Data Resources
Find proteins for P06756 (Homo sapiens) Explore P06756 Go to UniProtKB: P06756
PHAROS: P06756 GTEx: ENSG00000138448
Find proteins for Q6MZV7 (Homo sapiens) Explore Q6MZV7 Go to UniProtKB: Q6MZV7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P06756 Q6MZV7
Glycosylation
Glycosylation Sites: 6	Glycosylation Focus chain A	Go to GlyGen: P06756-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

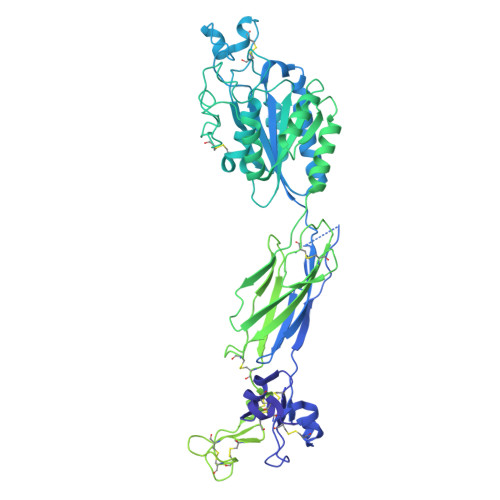

Integrin beta-3,Integrin beta-3,Uncharacterized protein DKFZp686C11235	B	919	Homo sapiens	Mutation(s): 0 Gene Names: ITGB3, GP3A, DKFZp686C11235
UniProt & NIH Common Fund Data Resources
Find proteins for P05106 (Homo sapiens) Explore P05106 Go to UniProtKB: P05106
PHAROS: P05106 GTEx: ENSG00000259207
Find proteins for Q6MZV7 (Homo sapiens) Explore Q6MZV7 Go to UniProtKB: Q6MZV7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P05106 Q6MZV7
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain B	Go to GlyGen: P05106-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

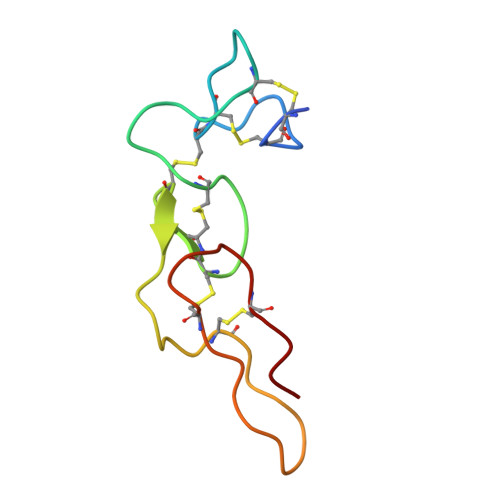

Disintegrin rhodostomin	C	68	Calloselasma rhodostoma	Mutation(s): 0
UniProt
Find proteins for P30403 (Calloselasma rhodostoma) Explore P30403 Go to UniProtKB: P30403
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P30403
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, G	3		N-Glycosylation	Interactions Focus chain D Focus chain G Interactions & Density Focus chain D Focus chain G
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E, H, I [auth J], J [auth K]	2		N-Glycosylation	Interactions Focus chain E Focus chain H Focus chain I [auth J] Focus chain J [auth K] Interactions & Density Focus chain E Focus chain H Focus chain I [auth J] Focus chain J [auth K]
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-4)-beta-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	F	6		N-Glycosylation	Interactions Focus chain F Interactions & Density Focus chain F
Glycosylation Resources
GlyTouCan: G93290PO GlyCosmos: G93290PO GlyGen: G93290PO

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain T [auth B] MOL2 format, chain P [auth A] MOL2 format, chain T [auth B] mmCIF format, chain P [auth A] mmCIF format, chain T [auth B]	P [auth A], T [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain P [auth A] Focus chain T [auth B] Interactions & Density Focus chain P [auth A] Focus chain T [auth B]
CA (Subject of Investigation/LOI) Query on CA Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain R [auth B] SDF format, chain S [auth B] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain R [auth B] MOL2 format, chain S [auth B] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain R [auth B] mmCIF format, chain S [auth B]	K [auth A] L [auth A] M [auth A] N [auth A] O [auth A] K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], R [auth B], S [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain R [auth B] Focus chain S [auth B] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain R [auth B] Focus chain S [auth B]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain Q [auth B] MOL2 format, chain Q [auth B] mmCIF format, chain Q [auth B]	Q [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain Q [auth B] Interactions & Density Focus chain Q [auth B]
