9IGS | pdb_00009igs

Mouse teneurin-3 A1B1 isoform; microphthalmia-associated R2579W mutant; compact dimer conformation

PDB DOI: https://doi.org/10.2210/pdb9IGS/pdb
EM Map EMD-52854: EMDB EMDataResource

Classification: CELL ADHESION
Organism(s): Mus musculus
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-02-20 Released: 2026-09-02
Deposition Author(s): Gogou, C., Meijer, D.H.
Funding Organization(s): Netherlands Organisation for Scientific Research (NWO)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9IGS

This is version 1.0 of the entry. See complete history.

Literature

A teneurin-3 microphthalmia mutation isoform-specifically disrupts trans adhesion via cis stabilization

Gogou, C., Meijer, D.H.

To be published.

Macromolecule Content

Total Structure Weight: 544.44 kDa
Atom Count: 29,504
Modeled Residue Count: 3,776
Deposited Residue Count: 4,814
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

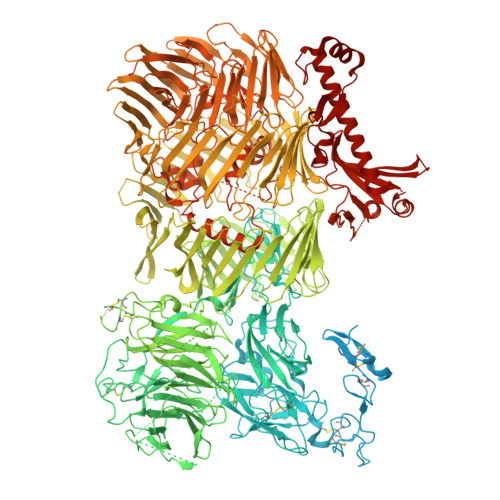

Isoform A1B1 of Teneurin-3	A, B	2,407	Mus musculus	Mutation(s): 1 Gene Names: Tenm3, Kiaa1455, Odz3, Tnm3
UniProt
Find proteins for Q9WTS6 (Mus musculus) Explore Q9WTS6 Go to UniProtKB: Q9WTS6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9WTS6
Glycosylation
Glycosylation Sites: 11	Glycosylation Focus chain A Focus chain B	Go to GlyGen: Q9WTS6-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C, D, E, F, G C, D, E, F, G, H, I, J	2		N-Glycosylation	Interactions Focus chain C Focus chain D Focus chain E Focus chain F Focus chain G Focus chain H Focus chain I Focus chain J Interactions & Density Focus chain C Focus chain D Focus chain E Focus chain F Focus chain G Focus chain H Focus chain I Focus chain J

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain R [auth A] SDF format, chain S [auth B] SDF format, chain W [auth B] SDF format, chain X [auth B] SDF format, chain Y [auth B] SDF format, chain Z [auth B] SDF format, chain V [auth B] SDF format, chain U [auth B] SDF format, chain T [auth B] SDF format, chain Q [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain R [auth A] MOL2 format, chain S [auth B] MOL2 format, chain W [auth B] MOL2 format, chain X [auth B] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] MOL2 format, chain V [auth B] MOL2 format, chain U [auth B] MOL2 format, chain T [auth B] MOL2 format, chain Q [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain R [auth A] mmCIF format, chain S [auth B] mmCIF format, chain W [auth B] mmCIF format, chain X [auth B] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B] mmCIF format, chain V [auth B] mmCIF format, chain U [auth B] mmCIF format, chain T [auth B] mmCIF format, chain Q [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A]	K [auth A] L [auth A] M [auth A] N [auth A] O [auth A] K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A], S [auth B], T [auth B], U [auth B], V [auth B], W [auth B], X [auth B], Y [auth B], Z [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B] Interactions & Density Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth B] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.00 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
Netherlands Organisation for Scientific Research (NWO)	Netherlands	722.016.004

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
