9HJC | pdb_00009hjc

Cryo-EM structure of thiamine-bound human TPK1

PDB DOI: https://doi.org/10.2210/pdb9HJC/pdb
EM Map EMD-52212: EMDB EMDataResource

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-11-28 Released: 2025-03-12
Deposition Author(s): Gabriel, F., Loew, C.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.10 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9HJC

This is version 1.1 of the entry. See complete history.

Literature

Structural Basis of Membrane Transport and Pyrophosphorylation of Thiamine in Humans

(2024) Thesis

Macromolecule Content

Total Structure Weight: 62.76 kDa
Atom Count: 3,868
Modeled Residue Count: 486
Deposited Residue Count: 554
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

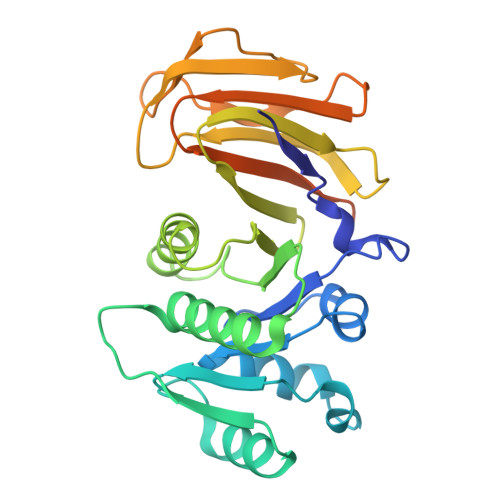

Thiamine pyrophosphokinase 1	A, B	277	Homo sapiens	Mutation(s): 0 Gene Names: TPK1 EC: 2.7.6
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H3S4 (Homo sapiens) Explore Q9H3S4 Go to UniProtKB: Q9H3S4
PHAROS: Q9H3S4 GTEx: ENSG00000196511
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9H3S4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
VIB (Subject of Investigation/LOI) Query on VIB Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain C [auth A] MOL2 format, chain E [auth B] MOL2 format, chain C [auth A] mmCIF format, chain E [auth B] mmCIF format, chain C [auth A]	C [auth A], E [auth B]	3-(4-AMINO-2-METHYL-PYRIMIDIN-5-YLMETHYL)-5-(2-HYDROXY-ETHYL)-4-METHYL-THIAZOL-3-IUM C₁₂ H₁₇ N₄ O S JZRWCGZRTZMZEH-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth B]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain F [auth B] SDF format, chain D [auth A] MOL2 format, chain F [auth B] MOL2 format, chain D [auth A] mmCIF format, chain F [auth B] mmCIF format, chain D [auth A]	D [auth A], F [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain F [auth B] Interactions & Density Focus chain D [auth A] Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.10 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-03-12

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-03-12
Type: Initial release
Version 1.1: 2025-07-09
Changes: Data collection
