9GY2 | pdb_00009gy2

Non-Hemolytic Phospholipase C (PLC N)

PDB DOI: https://doi.org/10.2210/pdb9GY2/pdb

Classification: HYDROLASE
Organism(s): Pseudomonas aeruginosa UCBPP-PA14
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-10-01 Released: 2025-10-15
Deposition Author(s): Sabharwal, N.S., Labahn, J.L.
Funding Organization(s): Helmholtz Association

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.57 Å
R-Value Free:
0.175 (Depositor), 0.153 (DCC)
R-Value Work:
0.152 (Depositor), 0.154 (DCC)
R-Value Observed:
0.153 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9GY2

This is version 1.0 of the entry. See complete history.

Literature

Non-Hemolytic Phospholipase C (PLC N)

Sabharwal, N.S., Labahn, J.L.

To be published.

Macromolecule Content

Total Structure Weight: 157.93 kDa
Atom Count: 11,410
Modeled Residue Count: 1,290
Deposited Residue Count: 1,412
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

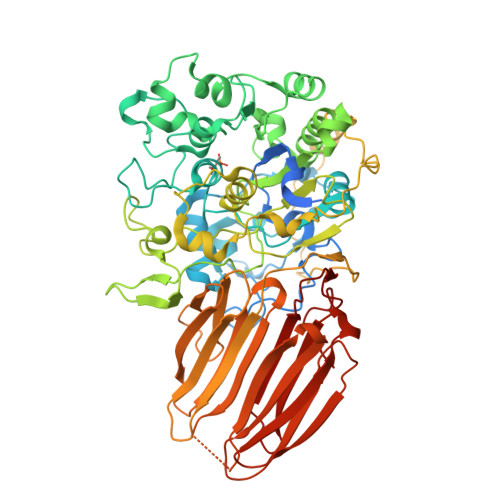

Molecule	Chains	Sequence Length	Organism	Details	Image
phospholipase C	A, B	706	Pseudomonas aeruginosa UCBPP-PA14	Mutation(s): 0 Gene Names: plcN, PA14_21110 EC: 3.1.4.3
UniProt
Find proteins for P15713 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore P15713 Go to UniProtKB: P15713
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P15713
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CA (Subject of Investigation/LOI) Query on CA Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth B] SDF format, chain F [auth B] SDF format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth B] MOL2 format, chain F [auth B] MOL2 format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth B] mmCIF format, chain F [auth B] mmCIF format, chain C [auth A]	C [auth A], D [auth A], E [auth B], F [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
TPO Query on TPO	A, B	L-PEPTIDE LINKING	C₄ H₁₀ N O₆ P		THR

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.57 Å
R-Value Free: 0.175 (Depositor), 0.153 (DCC)
R-Value Work: 0.152 (Depositor), 0.154 (DCC)
R-Value Observed: 0.153 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 61.27	α = 90
b = 110.432	β = 101.03
c = 98.619	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-15

Deposition Author(s):

Sabharwal, N.S.

Funding Organization	Location	Grant Number
Helmholtz Association	Germany	--

Revision History (Full details and data files)

Version 1.0: 2025-10-15
Type: Initial release
