9G2I | pdb_00009g2i

25-phosphosteroid lyase + phosphate

PDB DOI: https://doi.org/10.2210/pdb9G2I/pdb

Classification: LYASE
Organism(s): Sterolibacterium denitrificans
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2024-07-11 Released: 2026-01-21
Deposition Author(s): Ermler, U., Boll, M., Demmer, U., Jacoby, C.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.282 (Depositor), 0.237 (DCC)
R-Value Work:
0.237 (Depositor), 0.239 (DCC)
R-Value Observed:
0.238 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of 25-phosphosteroid lyase

Jacoby, C., Demmer, U., Ermler, U., Boll, M.

To be published.

Macromolecule Content

Total Structure Weight: 167.73 kDa
Atom Count: 12,265
Modeled Residue Count: 1,445
Deposited Residue Count: 1,448
Unique protein chains: 1

Macromolecules

Find similar proteins by:

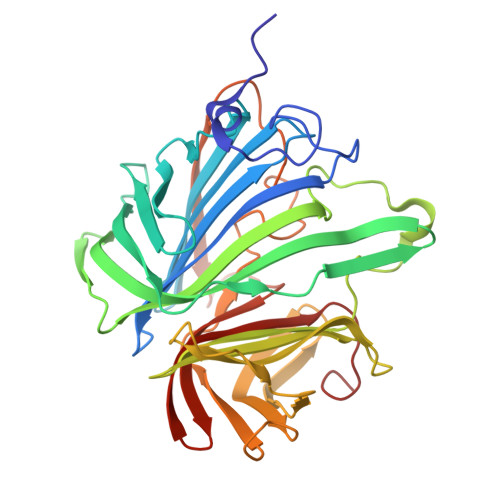

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
25-phosphosteroid lyase (25-PSL)	A, B, C, D	362	Sterolibacterium denitrificans	Mutation(s): 0 Gene Names: SDENCHOL_21320
UniProt
Find proteins for A0A7Z7MWD0 (Sterolibacterium denitrificans) Explore A0A7Z7MWD0 Go to UniProtKB: A0A7Z7MWD0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A7Z7MWD0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MPD Query on MPD Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain U [auth D] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain U [auth D] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain U [auth D]	G [auth A], H [auth A], U [auth D]	(4S)-2-METHYL-2,4-PENTANEDIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-YFKPBYRVSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain U [auth D] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain U [auth D]
PO4 Query on PO4 Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain O [auth C] SDF format, chain P [auth C] SDF format, chain S [auth D] SDF format, chain T [auth D] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain O [auth C] MOL2 format, chain P [auth C] MOL2 format, chain S [auth D] MOL2 format, chain T [auth D] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain O [auth C] mmCIF format, chain P [auth C] mmCIF format, chain S [auth D] mmCIF format, chain T [auth D]	E [auth A] F [auth A] L [auth B] M [auth B] O [auth C] E [auth A], F [auth A], L [auth B], M [auth B], O [auth C], P [auth C], S [auth D], T [auth D]	PHOSPHATE ION O₄ P NBIIXXVUZAFLBC-UHFFFAOYSA-K		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain O [auth C] Focus chain P [auth C] Focus chain S [auth D] Focus chain T [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain O [auth C] Focus chain P [auth C] Focus chain S [auth D] Focus chain T [auth D]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain N [auth B] SDF format, chain R [auth C] MOL2 format, chain K [auth A] MOL2 format, chain N [auth B] MOL2 format, chain R [auth C] mmCIF format, chain K [auth A] mmCIF format, chain N [auth B] mmCIF format, chain R [auth C]	K [auth A], N [auth B], R [auth C]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain N [auth B] Focus chain R [auth C] Interactions & Density Focus chain K [auth A] Focus chain N [auth B] Focus chain R [auth C]
IMD (Subject of Investigation/LOI) Query on IMD Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain Q [auth C] SDF format, chain V [auth D] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain Q [auth C] MOL2 format, chain V [auth D] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain Q [auth C] mmCIF format, chain V [auth D]	I [auth A], J [auth A], Q [auth C], V [auth D]	IMIDAZOLE C₃ H₅ N₂ RAXXELZNTBOGNW-UHFFFAOYSA-O		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain Q [auth C] Focus chain V [auth D] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain Q [auth C] Focus chain V [auth D]
