9FWZ | pdb_00009fwz

Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn, FimAn-1 and FimAn-2)

PDB DOI: https://doi.org/10.2210/pdb9FWZ/pdb
EM Map EMD-50838: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Escherichia coli
Expression System: Escherichia coli, Escherichia coli BL21(DE3)
Mutation(s): No
Membrane Protein: Yes MemProtMD

Deposited: 2024-07-01 Released: 2025-06-04
Deposition Author(s): Bachmann, P., Afanasyev, P., Boehringer, D., Glockshuber, R.
Funding Organization(s): Swiss National Science Foundation

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9FWZ

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn, FimAn-1 and FimAn-2)

Bachmann, P., Afanasyev, P., Boehringer, D., Glockshuber, R.

To be published.

Macromolecule Content

Total Structure Weight: 163.88 kDa
Atom Count: 9,987
Modeled Residue Count: 1,331
Deposited Residue Count: 1,533
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Outer membrane usher protein FimD	A [auth D]	847	Escherichia coli	Mutation(s): 0 Gene Names: fimD, b4317, JW5780 Membrane Entity: Yes
UniProt
Find proteins for P30130 (Escherichia coli (strain K12)) Explore P30130 Go to UniProtKB: P30130
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P30130
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

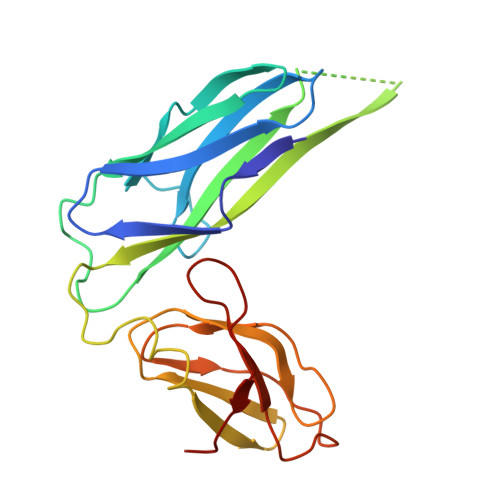

Chaperone protein FimC	B [auth C]	206	Escherichia coli	Mutation(s): 0 Gene Names: fimC, b4316, JW4279 Membrane Entity: Yes
UniProt
Find proteins for P31697 (Escherichia coli (strain K12)) Explore P31697 Go to UniProtKB: P31697
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P31697
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

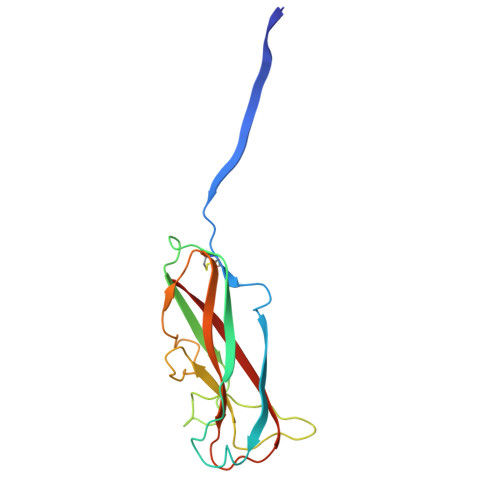

Type-1 fimbrial protein, A chain	C [auth B], D [auth A], E	160	Escherichia coli	Mutation(s): 0 Gene Names: fimA, pilA, b4314, JW4277 Membrane Entity: Yes
UniProt
Find proteins for P04128 (Escherichia coli (strain K12)) Explore P04128 Go to UniProtKB: P04128
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P04128
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-06-04

Deposition Author(s):

Glockshuber, R.

Funding Organization	Location	Grant Number
Swiss National Science Foundation	Switzerland	310030_201234

Revision History (Full details and data files)

Version 1.0: 2025-06-04
Type: Initial release
