9D8H | pdb_00009d8h

JN.1 SARS-COV-2 Spike 3-down conformation

PDB DOI: https://doi.org/10.2210/pdb9D8H/pdb
EM Map EMD-46637: EMDB EMDataResource

Classification: VIRUS
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-08-19 Released: 2025-10-29
Deposition Author(s): Windsor, I.W., Wu, H.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9D8H

This is version 1.0 of the entry. See complete history.

Literature

SARS-CoV-2 JN.1 and KP.2 spike characteristics and neutralization of JN.1-derived sublineages and T cell responses from mice immunized with monovalent JN.1- and KP.2-adapted BNT162b2 COVID-19 vaccines

Windsor, I.W., Wu, H.

To be published.

Macromolecule Content

Total Structure Weight: 447.25 kDa
Atom Count: 27,678
Modeled Residue Count: 3,336
Deposited Residue Count: 3,915
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

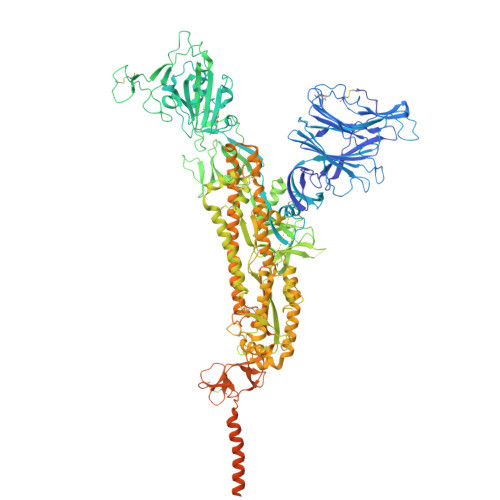

Spike glycoprotein	A, B, C	1,305	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 15	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, E, F, H, I D, E, F, H, I, J, K, M, N, O, P, R	2		N-Glycosylation	Interactions Focus chain D Focus chain E Focus chain F Focus chain H Focus chain I Focus chain J Focus chain K Focus chain M Focus chain N Focus chain O Focus chain P Focus chain R Interactions & Density Focus chain D Focus chain E Focus chain F Focus chain H Focus chain I Focus chain J Focus chain K Focus chain M Focus chain N Focus chain O Focus chain P Focus chain R
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	G, L, Q	3		N-Glycosylation	Interactions Focus chain G Focus chain L Focus chain Q Interactions & Density Focus chain G Focus chain L Focus chain Q
Glycosylation Resources
GlyTouCan: G21290RB GlyCosmos: G21290RB GlyGen: G21290RB

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain Z [auth A] SDF format, chain Y [auth A] SDF format, chain X [auth A] SDF format, chain W [auth A] SDF format, chain VA [auth C] SDF format, chain V [auth A] SDF format, chain UA [auth C] SDF format, chain U [auth A] SDF format, chain TA [auth C] SDF format, chain T [auth A] SDF format, chain SA [auth C] SDF format, chain S [auth A] SDF format, chain RA [auth C] SDF format, chain QA [auth C] SDF format, chain PA [auth C] SDF format, chain OA [auth C] SDF format, chain NA [auth C] SDF format, chain MA [auth C] SDF format, chain LA [auth B] SDF format, chain KA [auth B] SDF format, chain JA [auth B] SDF format, chain IA [auth B] SDF format, chain HA [auth B] SDF format, chain GA [auth B] SDF format, chain FA [auth B] SDF format, chain EA [auth B] SDF format, chain DA [auth B] SDF format, chain CA [auth B] SDF format, chain BA [auth A] SDF format, chain AA [auth A] MOL2 format, chain Z [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain X [auth A] MOL2 format, chain W [auth A] MOL2 format, chain VA [auth C] MOL2 format, chain V [auth A] MOL2 format, chain UA [auth C] MOL2 format, chain U [auth A] MOL2 format, chain TA [auth C] MOL2 format, chain T [auth A] MOL2 format, chain SA [auth C] MOL2 format, chain S [auth A] MOL2 format, chain RA [auth C] MOL2 format, chain QA [auth C] MOL2 format, chain PA [auth C] MOL2 format, chain OA [auth C] MOL2 format, chain NA [auth C] MOL2 format, chain MA [auth C] MOL2 format, chain LA [auth B] MOL2 format, chain KA [auth B] MOL2 format, chain JA [auth B] MOL2 format, chain IA [auth B] MOL2 format, chain HA [auth B] MOL2 format, chain GA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain DA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain BA [auth A] MOL2 format, chain AA [auth A] mmCIF format, chain Z [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain X [auth A] mmCIF format, chain W [auth A] mmCIF format, chain VA [auth C] mmCIF format, chain V [auth A] mmCIF format, chain UA [auth C] mmCIF format, chain U [auth A] mmCIF format, chain TA [auth C] mmCIF format, chain T [auth A] mmCIF format, chain SA [auth C] mmCIF format, chain S [auth A] mmCIF format, chain RA [auth C] mmCIF format, chain QA [auth C] mmCIF format, chain PA [auth C] mmCIF format, chain OA [auth C] mmCIF format, chain NA [auth C] mmCIF format, chain MA [auth C] mmCIF format, chain LA [auth B] mmCIF format, chain KA [auth B] mmCIF format, chain JA [auth B] mmCIF format, chain IA [auth B] mmCIF format, chain HA [auth B] mmCIF format, chain GA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain DA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain BA [auth A] mmCIF format, chain AA [auth A]	AA [auth A] BA [auth A] CA [auth B] DA [auth B] EA [auth B] AA [auth A], BA [auth A], CA [auth B], DA [auth B], EA [auth B], FA [auth B], GA [auth B], HA [auth B], IA [auth B], JA [auth B], KA [auth B], LA [auth B], MA [auth C], NA [auth C], OA [auth C], PA [auth C], QA [auth C], RA [auth C], S [auth A], SA [auth C], T [auth A], TA [auth C], U [auth A], UA [auth C], V [auth A], VA [auth C], W [auth A], X [auth A], Y [auth A], Z [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth C] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C] Focus chain QA [auth C] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth C] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C] Focus chain QA [auth C] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
