9D2J | pdb_00009d2j

FoxP3 multimers bridge two T4G repeat DNAs (model2)

PDB DOI: https://doi.org/10.2210/pdb9D2J/pdb
NAKB: 9D2J
EM Map EMD-46498: EMDB EMDataResource

Classification: TRANSCRIPTION/DNA
Organism(s): Mus musculus, synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-08-08 Released: 2025-10-29
Deposition Author(s): Leng, F., Hur, S.
Funding Organization(s): Howard Hughes Medical Institute (HHMI)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9D2J

This is version 1.0 of the entry. See complete history.

Literature

FoxP3 multimers bridge two T4G repeat DNAs (model2)

Leng, F., Hur, S.

To be published.

Macromolecule Content

Total Structure Weight: 310.72 kDa
Atom Count: 9,304
Modeled Residue Count: 881
Deposited Residue Count: 2,188
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Forkhead box protein P3	A [auth B] B [auth C] C [auth D] D [auth E] E [auth F] A [auth B], B [auth C], C [auth D], D [auth E], E [auth F], F [auth G], G [auth H], L [auth A]	236	Mus musculus	Mutation(s): 0 Gene Names: Foxp3
UniProt
Find proteins for Q99JB6 (Mus musculus) Explore Q99JB6 Go to UniProtKB: Q99JB6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q99JB6
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 2
DNA (47-MER)	H [auth a], J [auth c]	75	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 3

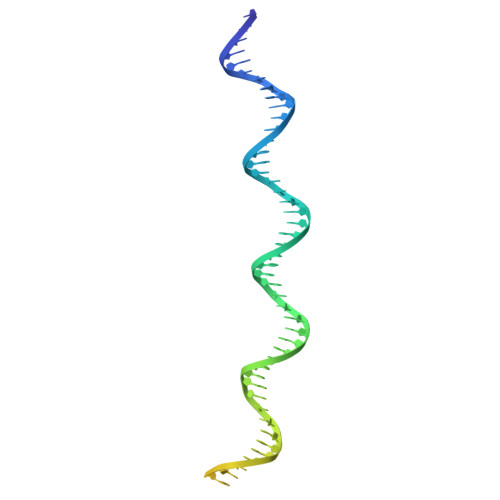

DNA (47-MER)	I [auth b], K [auth d]	75	synthetic construct
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-29

Deposition Author(s):

Funding Organization	Location	Grant Number
Howard Hughes Medical Institute (HHMI)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-10-29
Type: Initial release
