9CY6 | pdb_00009cy6

Crystal structure of IgG1 FC M252H at pH 7.5

PDB DOI: https://doi.org/10.2210/pdb9CY6/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2024-08-01 Released: 2026-03-18
Deposition Author(s): Reddem, E.R., Shapiro, L.
Funding Organization(s): Bill & Melinda Gates Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.06 Å
R-Value Free:
0.282 (Depositor), 0.283 (DCC)
R-Value Work:
0.234 (Depositor), 0.237 (DCC)
R-Value Observed:
0.236 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9CY6

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of IgG1 FC M252H at pH 7.5

Reddem, E.R., Shapiro, L.

To be published.

Macromolecule Content

Total Structure Weight: 55.19 kDa
Atom Count: 3,735
Modeled Residue Count: 414
Deposited Residue Count: 462
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

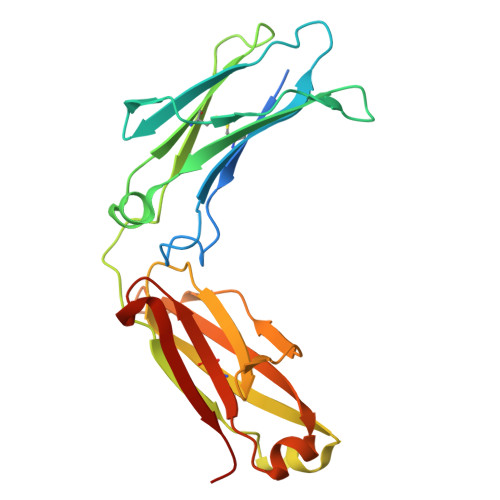

Immunoglobulin gamma-1 heavy chain Fc Fragment	A, B	231	Homo sapiens	Mutation(s): 1
UniProt
Find proteins for P0DOX5 (Homo sapiens) Explore P0DOX5 Go to UniProtKB: P0DOX5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DOX5
Glycosylation
Glycosylation Sites: 1	Glycosylation Focus chain A Focus chain B
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	C	9		N-Glycosylation	Interactions Focus chain C Interactions & Density Focus chain C
Glycosylation Resources
GlyTouCan: G27919IH GlyCosmos: G27919IH GlyGen: G27919IH

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	D	9		N-Glycosylation	Interactions Focus chain D Interactions & Density Focus chain D

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.06 Å
R-Value Free: 0.282 (Depositor), 0.283 (DCC)
R-Value Work: 0.234 (Depositor), 0.237 (DCC)
R-Value Observed: 0.236 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 49.61	α = 90
b = 79.055	β = 90
c = 139.398	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHENIX	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-016167

Revision History (Full details and data files)

Version 1.0: 2026-03-18
Type: Initial release
