9CTY | pdb_00009cty

Human Kv1.3-H451V with A0194009G09 nanobodies conformation 2

PDB DOI: https://doi.org/10.2210/pdb9CTY/pdb
EM Map EMD-45922: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Aequorea victoria, Lama glama
Expression System: Homo sapiens, Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-07-25 Released: 2026-01-28
Deposition Author(s): Selvakumar, P., Swartz, K.J.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9CTY

This is version 1.0 of the entry. See complete history.

Literature

Human Kv1.3-H451V with A0194009G09 nanobodies conformation 2

Selvakumar, P., Swartz, K.J.

To be published.

Macromolecule Content

Total Structure Weight: 435.47 kDa
Atom Count: 15,280
Modeled Residue Count: 1,908
Deposited Residue Count: 3,928
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

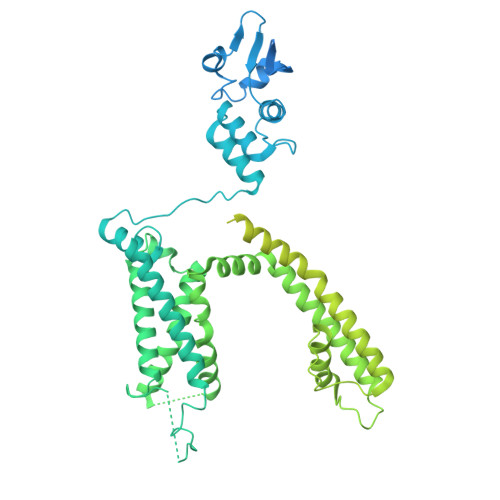

Potassium voltage-gated channel subfamily A member 3/mVenus fusion protein,Green fluorescent protein	A, F [auth B], G [auth C], H [auth D]	856	Homo sapiens, Aequorea victoria This entity is chimeric	Mutation(s): 12 Gene Names: KCNA3, HGK5, GFP
UniProt & NIH Common Fund Data Resources
Find proteins for P22001 (Homo sapiens) Explore P22001 Go to UniProtKB: P22001
PHAROS: P22001 GTEx: ENSG00000177272
Find proteins for P42212 (Aequorea victoria) Explore P42212 Go to UniProtKB: P42212
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P22001 P42212
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

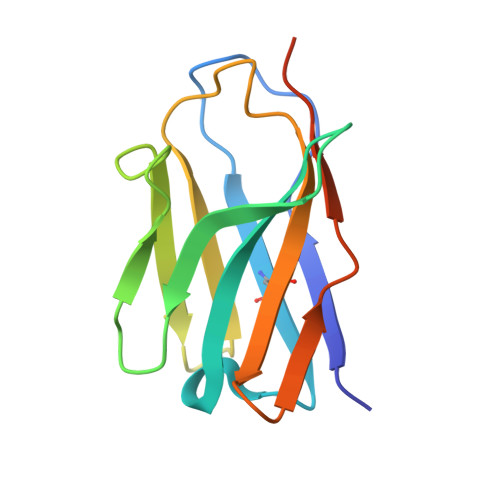

A0194009G09 nanobody	B [auth E], C [auth F], D [auth G], E [auth H]	126	Lama glama	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
K Query on K Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A]	I [auth A], J [auth A], K [auth A], L [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-28

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-01-28
Type: Initial release
