9C7X | pdb_00009c7x

Crystal structure of SARS-CoV-2 antibody 1H06 in complex with a HR2 peptide

PDB DOI: https://doi.org/10.2210/pdb9C7X/pdb

Classification: IMMUNE SYSTEM
Organism(s): Mus musculus, Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens, synthetic construct
Mutation(s): Yes

Deposited: 2024-06-11 Released: 2025-06-18
Deposition Author(s): Van Wazer, D.J., Zhou, T., Kwong, P.D.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.96 Å
R-Value Free:
0.215 (Depositor), 0.215 (DCC)
R-Value Work:
0.172 (Depositor), 0.172 (DCC)
R-Value Observed:
0.175 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9C7X

This is version 1.0 of the entry. See complete history.

Literature

SARS-CoV-2 Peptide Immunization in Mice Elicits Broadly Neutralizing Antibodies Targeting Cryptic S2 Helical-Stem Epitope

Sastry, M.

To be published.

Macromolecule Content

Total Structure Weight: 49.46 kDa
Atom Count: 3,819
Modeled Residue Count: 455
Deposited Residue Count: 455
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

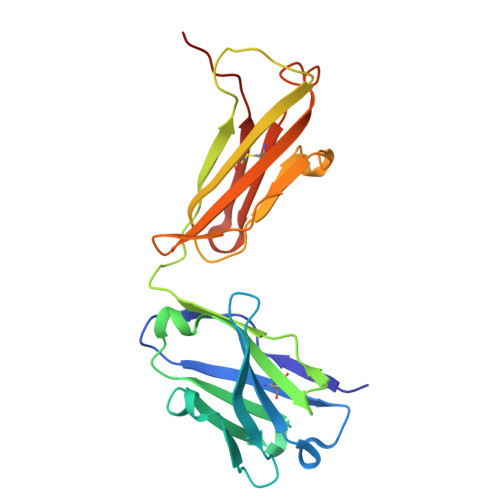

Heavy Chain of SARS-CoV-2 antibody 1H06	A	216	Mus musculus	Mutation(s): 0

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

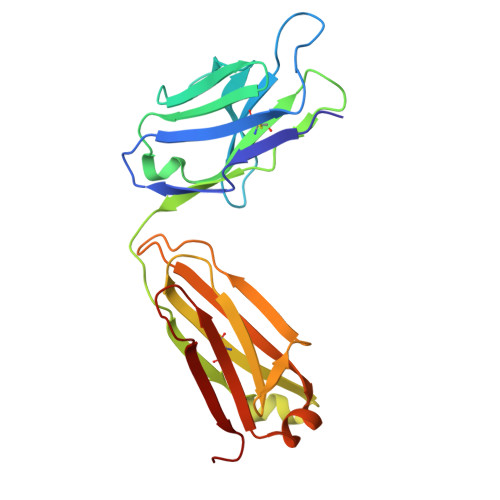

Light Chain of SARS-CoV-2 antibody 1H06	B	219	Mus musculus	Mutation(s): 0

Find similar proteins by: Sequence | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

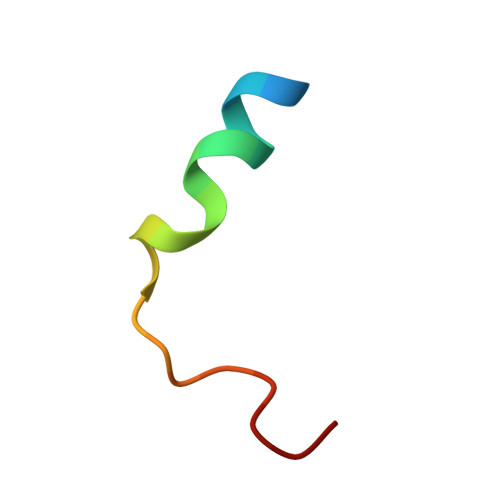

Spike protein S2'	C	20	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 1 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.96 Å
R-Value Free: 0.215 (Depositor), 0.215 (DCC)
R-Value Work: 0.172 (Depositor), 0.172 (DCC)
R-Value Observed: 0.175 (Depositor)

Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 59.983	α = 90
b = 142.498	β = 90
c = 54.262	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
PHENIX	phasing
HKL-2000	data reduction

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-06-18

Deposition Author(s):

Van Wazer, D.J.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-06-18
Type: Initial release
