9BJ8 | pdb_00009bj8

human CRL2-ZYG11B complex

• PDB DOI: https://doi.org/10.2210/pdb9BJ8/pdb
• EM Map EMD-44630: EMDB EMDataResource

• Classification: PEPTIDE BINDING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Escherichia coli, Spodoptera frugiperda
• Mutation(s): No


• Deposited: 2024-04-25 Released: 2026-03-18
• Deposition Author(s): Liu, X., Gross, J.D.
• Funding Organization(s): Other private

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.78 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

human CRL2-ZYG11B complex

Liu, X., Gross, J.D.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1

Biological assembly 1 assigned by authors and generated by (software)

Macromolecule Content

• Total Structure Weight: 207.91 kDa
• Atom Count: 14,069
• Modeled Residue Count: 1,746
• Deposited Residue Count: 1,814
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

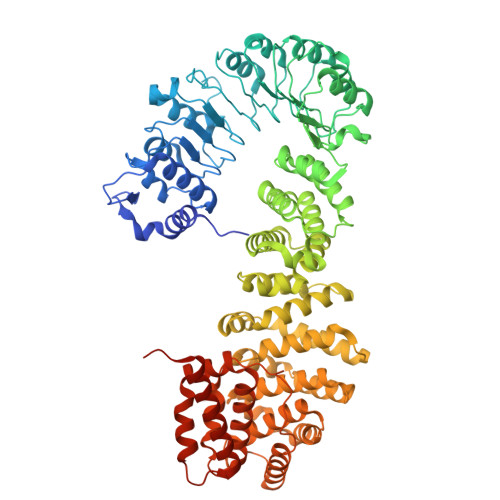

Protein zyg-11 homolog B	A	748	Homo sapiens	Mutation(s): 0  Gene Names: ZYG11B, KIAA1730
UniProt & NIH Common Fund Data Resources
Find proteins for Q9C0D3 (Homo sapiens) Explore Q9C0D3  Go to UniProtKB:  Q9C0D3
PHAROS:  Q9C0D3 GTEx:  ENSG00000162378

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

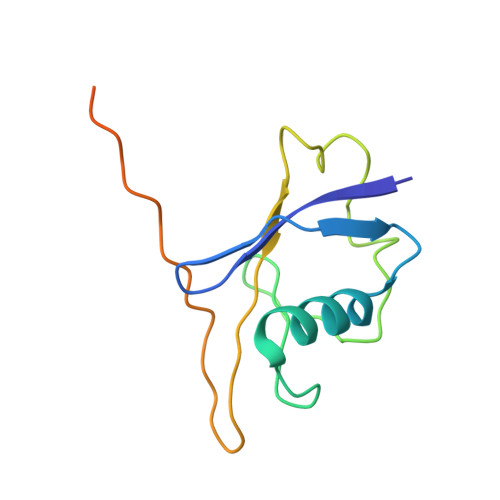

Elongin-B	B	118	Homo sapiens	Mutation(s): 0  Gene Names: ELOB, TCEB2
UniProt & NIH Common Fund Data Resources
Find proteins for Q15370 (Homo sapiens) Explore Q15370  Go to UniProtKB:  Q15370
PHAROS:  Q15370 GTEx:  ENSG00000103363

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

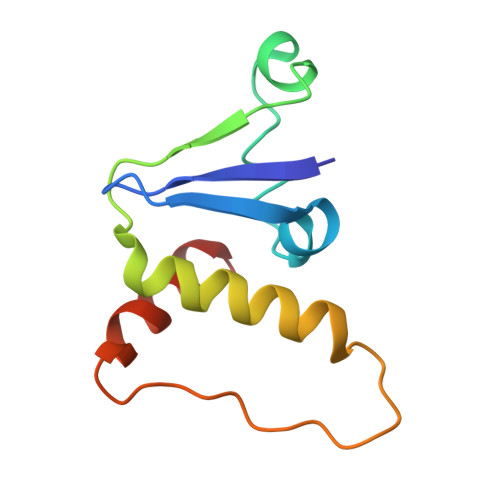

Elongin-C	C	96	Homo sapiens	Mutation(s): 0  Gene Names: ELOC, TCEB1
UniProt & NIH Common Fund Data Resources
Find proteins for Q15369 (Homo sapiens) Explore Q15369  Go to UniProtKB:  Q15369
PHAROS:  Q15369 GTEx:  ENSG00000154582

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

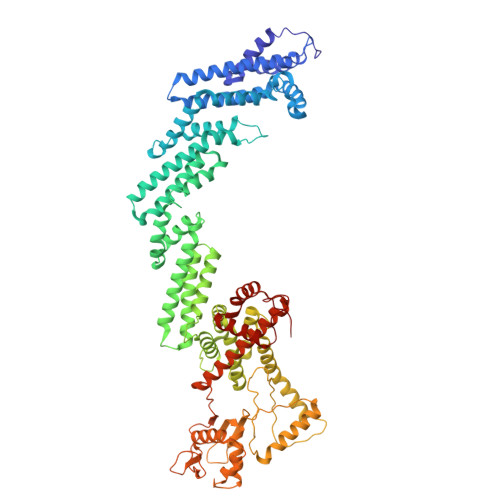

Cullin-2	D	744	Homo sapiens	Mutation(s): 0  Gene Names: CUL2
UniProt & NIH Common Fund Data Resources
Find proteins for Q13617 (Homo sapiens) Explore Q13617  Go to UniProtKB:  Q13617
PHAROS:  Q13617 GTEx:  ENSG00000108094

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
E3 ubiquitin-protein ligase RBX1	E [auth R]	108	Homo sapiens	Mutation(s): 0  Gene Names: RBX1, RNF75, ROC1 EC: 2.3.2.27 (PDB Primary Data), 2.3.2.32 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P62877 (Homo sapiens) Explore P62877  Go to UniProtKB:  P62877
PHAROS:  P62877 GTEx:  ENSG00000100387

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ZN (Subject of Investigation/LOI)	F [auth R], G [auth R], H [auth R]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.78 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.1_5286
RECONSTRUCTION	RELION	4

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-03-18
Deposition Author(s): Liu, X., Gross, J.D.

---

Funding Organization	Location	Grant Number
Other private	United States	--

Revision History

• Version 1.0: 2026-03-18
  Type: Initial release
