8W7M

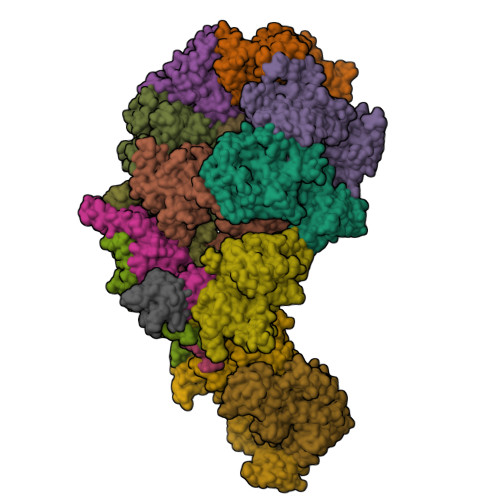

Yeast replisome in state V


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Synergism between CMG helicase and leading strand DNA polymerase at replication fork.

Xu, Z.Feng, J.Yu, D.Huo, Y.Ma, X.Lam, W.H.Liu, Z.Li, X.D.Ishibashi, T.Dang, S.Zhai, Y.

(2023) Nat Commun 14: 5849-5849

  • DOI: https://doi.org/10.1038/s41467-023-41506-0
  • Primary Citation of Related Structures:
    8KG6, 8KG8, 8KG9, 8W7M, 8W7S

  • PubMed Abstract:

    The replisome that replicates the eukaryotic genome consists of at least three engines: the Cdc45-MCM-GINS (CMG) helicase that separates duplex DNA at the replication fork and two DNA polymerases, one on each strand, that replicate the unwound DNA. Here, we determined a series of cryo-electron microscopy structures of a yeast replisome comprising CMG, leading-strand polymerase Polε and three accessory factors on a forked DNA. In these structures, Polε engages or disengages with the motor domains of the CMG by occupying two alternative positions, which closely correlate with the rotational movement of the single-stranded DNA around the MCM pore. During this process, the polymerase remains stably coupled to the helicase using Psf1 as a hinge. This synergism is modulated by a concerted rearrangement of ATPase sites to drive DNA translocation. The Polε-MCM coupling is not only required for CMG formation to initiate DNA replication but also facilitates the leading-strand DNA synthesis mediated by Polε. Our study elucidates a mechanism intrinsic to the replisome that coordinates the activities of CMG and Polε to negotiate any roadblocks, DNA damage, and epigenetic marks encountered during translocation along replication forks.


  • Organizational Affiliation

    School of Biological Sciences, The University of Hong Kong, Hong Kong, China.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM2A [auth 2]868Saccharomyces cerevisiaeMutation(s): 0
Gene Names: MCM2
EC: 3.6.4.12
UniProt
Find proteins for P29469 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P29469
Go to UniProtKB:  P29469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29469
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM3B [auth 3]971Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM3
EC: 3.6.4.12
UniProt
Find proteins for P24279 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P24279
Go to UniProtKB:  P24279
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP24279
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM4C [auth 4]933Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM4
EC: 3.6.4.12
UniProt
Find proteins for P30665 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30665
Go to UniProtKB:  P30665
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30665
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Minichromosome maintenance protein 5D [auth 5]775Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM5
EC: 3.6.4.12
UniProt
Find proteins for P29496 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P29496
Go to UniProtKB:  P29496
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP29496
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM6E [auth 6]1,017Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: MCM6
EC: 3.6.4.12
UniProt
Find proteins for P53091 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53091
Go to UniProtKB:  P53091
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53091
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication licensing factor MCM7F [auth 7]845Saccharomyces cerevisiaeMutation(s): 0
Gene Names: MCM7
EC: 3.6.4.12
UniProt
Find proteins for P38132 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38132
Go to UniProtKB:  P38132
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38132
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication complex GINS protein PSF1G [auth A]208Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: PSF1
UniProt
Find proteins for Q12488 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q12488
Go to UniProtKB:  Q12488
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12488
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication complex GINS protein PSF2H [auth B]213Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: PSF2
UniProt
Find proteins for P40359 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40359
Go to UniProtKB:  P40359
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40359
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication complex GINS protein PSF3I [auth C]194Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: PSF3
UniProt
Find proteins for Q12146 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q12146
Go to UniProtKB:  Q12146
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12146
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
DNA replication complex GINS protein SLD5J [auth D]294Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: SLD5
UniProt
Find proteins for Q03406 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q03406
Go to UniProtKB:  Q03406
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ03406
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
Cell division control protein 45K [auth E]650Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: CDC45
UniProt
Find proteins for Q08032 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q08032
Go to UniProtKB:  Q08032
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ08032
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
DNA polymerase alpha-binding proteinL [auth F],
M [auth G],
N [auth H]
927Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: CTF4
UniProt
Find proteins for Q01454 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q01454
Go to UniProtKB:  Q01454
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ01454
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage
DNA polymerase epsilon subunit BP [auth N]689Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: DPB2
UniProt
Find proteins for P24482 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P24482
Go to UniProtKB:  P24482
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP24482
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains LengthOrganismImage
DNA (71-mer)O [auth I]71Saccharomyces cerevisiae
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
AGS (Subject of Investigation/LOI)
Query on AGS

Download Ideal Coordinates CCD File
BA [auth 7],
V [auth 4]
PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
C10 H16 N5 O12 P3 S
NLTUCYMLOPLUHL-KQYNXXCUSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
Q [auth 2],
T [auth 3]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
ZN (Subject of Investigation/LOI)
Query on ZN

Download Ideal Coordinates CCD File
CA [auth 7],
S [auth 2],
X [auth 4],
Y [auth 5],
Z [auth 6]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
AA [auth 7],
R [auth 2],
U [auth 3],
W [auth 4]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
MODEL REFINEMENTCoot
RECONSTRUCTIONcryoSPARCv3.0.1
RECONSTRUCTIONcryoSPARCv2.15.0

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
The University Grants Committee, Research Grants Council (RGC)Hong KongGRF16104617
The University Grants Committee, Research Grants Council (RGC)Hong KongGRF16103918
The University Grants Committee, Research Grants Council (RGC)Hong KongGRF17112119
The University Grants Committee, Research Grants Council (RGC)Hong KongGRF17101720
The University Grants Committee, Research Grants Council (RGC)Hong KongC7028-19GF
The University Grants Committee, Research Grants Council (RGC)Hong KongC7009-20GF
The University Grants Committee, Research Grants Council (RGC)Hong KongECS26101919
The University Grants Committee, Research Grants Council (RGC)Hong KongGRF16103321

Revision History  (Full details and data files)

  • Version 1.0: 2023-12-06
    Type: Initial release
