8Z6W | pdb_00008z6w

Structure of EG.5.1 S trimer with 3 down-RBDs complex with antibody CYFN1006-2.

PDB DOI: https://doi.org/10.2210/pdb8Z6W/pdb
EM Map EMD-39806: EMDB EMDataResource

Classification: VIRAL PROTEIN/IMMUNE SYSTEM
Organism(s): Severe acute respiratory syndrome coronavirus 2, Tequatrovirus T4, synthetic construct, Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2024-04-19 Released: 2025-02-12
Deposition Author(s): Wang, Y.J., Sun, L.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.04 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8Z6W

This is version 1.1 of the entry. See complete history.

Literature

Structure of EG.5.1 S trimer with 3 down-RBDs complex with antibody CYFN1006-2.

Wang, Y.J., Sun, L.

To be published.

Macromolecule Content

Total Structure Weight: 567.63 kDa
Atom Count: 34,950
Modeled Residue Count: 4,524
Deposited Residue Count: 5,184
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

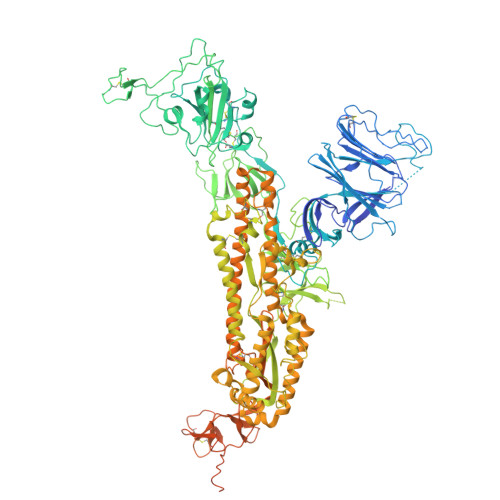

Spike glycoprotein,Fibritin,Expression Tag	A [auth B], B [auth A], I [auth C]	1,295	Severe acute respiratory syndrome coronavirus 2, Tequatrovirus T4, synthetic construct This entity is chimeric	Mutation(s): 40 Gene Names: S, 2, wac
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Find proteins for P10104 (Enterobacteria phage T4) Explore P10104 Go to UniProtKB: P10104
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P0DTC2 P10104
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

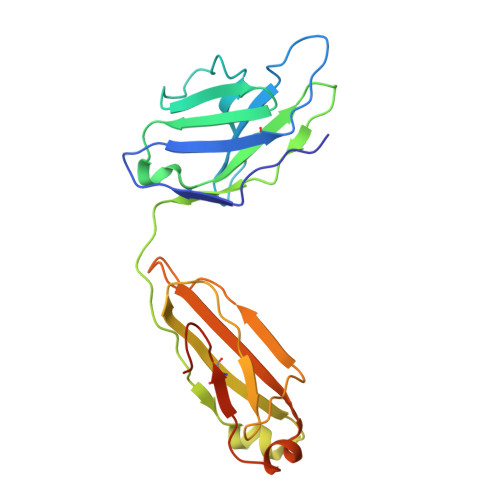

CYFN1006-2 light chain	C [auth J], E [auth K], G [auth L]	215	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

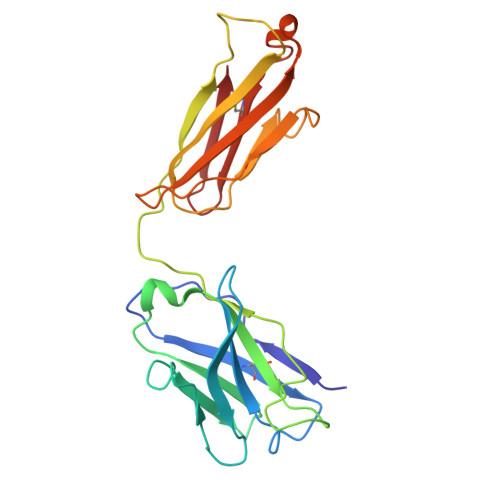

CYFN1006-2 heavy chain	D [auth G], F [auth H], H [auth I]	218	Homo sapiens	Mutation(s): 0

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.04 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-02-12

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-02-12
Type: Initial release
Version 1.1: 2025-07-16
Changes: Data collection
