8Z60 | pdb_00008z60

Cryo-EM structure of the polar flagellar motor-hook complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.22 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8Z60

This is version 2.1 of the entry. See complete history

Literature

Molecular basis of high-torque transmission of the Vibrio polar flagellar motor.

Zhang, L.Tan, J.Duan, X.Wang, X.Wang, T.Yuan, K.Homma, M.Kojima, S.Zhou, Y.Zhu, Y.

(2026) Protein Cell

  • DOI: https://doi.org/10.1093/procel/pwag025
  • Primary Citation Related Structures:
    8Z5N, 8Z5S, 8Z5U, 8Z5V, 8Z5W, 8Z5X, 8Z5Y, 8Z5Z, 8Z60

  • PubMed Abstract:

    The bacterial flagellar motor is a protein nanomachine that rotates the flagellum to facilitate bacterial motility. These motors exhibit structural diversity among species, enabling the transmission of varying torques to flagellar filaments to grant bacteria diverse swimming capabilities. Compared to peritrichous flagellar motors, polar flagellar motors are faster machines that transmit higher torque to drive high-speed motility in liquids and empower swimming in viscous environments. However, structural basis of high-torque transmission of the polar flagellar motors is still unclear. Here we present a cryo-electron microscopy structure of the polar flagellar motor in complex with the hook from Vibrio alginolyticus, comprising 295 subunits from 18 proteins. Compared to the peritrichous flagellar rod, this structure reveals an increased number of inter-subunit interactions in the rod of the polar flagellar motor. Nine phospholipid molecules insert into the interface between the export apparatus and the proximal rod. The LP ring contains more electrostatic charges on the inner surface and has fewer physical contacts with the rod, while the HT ring tightly binds to the outer surface of the LP ring. FlrP, a protein of previously unknown function, is identified as a new component of the polar flagellar motor, and extensively participates in the interactions of 15 FliF peptides of the MS ring with the rod. In contrast to that in the peritrichous flagellum, the hook in the polar flagellum has two different conformational states, L- and R-types. These findings provide unprecedented insights into structural adaptations of the bacterial polar flagellar motors for high-torque transmission.


  • Organizational Affiliation
    • School of Public Health, Life Sciences Institute, and Department of Infectious Diseases of the Second Affiliated Hospital, School of Medicine, Zhejiang University, Hangzhou, 310058, China.

Macromolecule Content

  • Total Structure Weight: 12,724.29 kDa
  • Atom Count: 555,596
  • Modeled Residue Count: 72,074
  • Deposited Residue Count: 115,790
  • Unique protein chains: 21

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

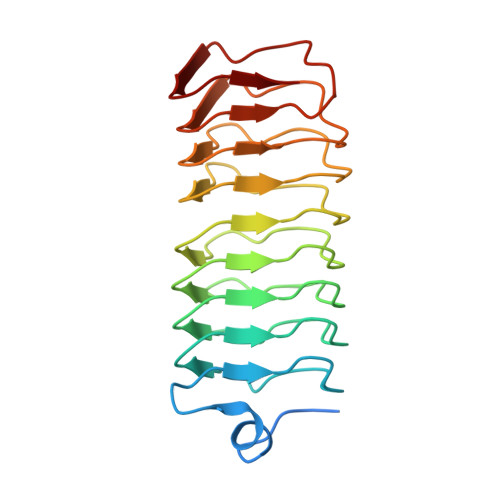

LRRA [auth 0],
J [auth 9]
199Vibrio alginolyticusMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

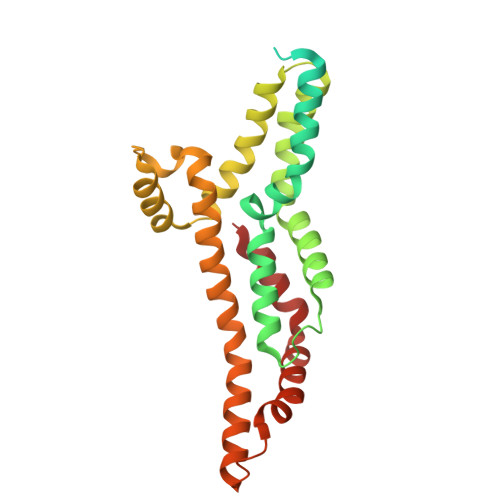

Flagellar biosynthetic protein FliPB [auth 1],
C [auth 2],
D [auth 3],
LD [auth y],
MD [auth z]
289Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A1W6TTE6 (Vibrio alginolyticus)
Explore A0A1W6TTE6
Go to UniProtKB:  A0A1W6TTE6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A1W6TTE6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar biosynthetic protein FliQE [auth 4],
F [auth 5],
G [auth 6],
H [auth 7]
89Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0YAF4 (Vibrio alginolyticus)
Explore A0A0H0YAF4
Go to UniProtKB:  A0A0H0YAF4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0YAF4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

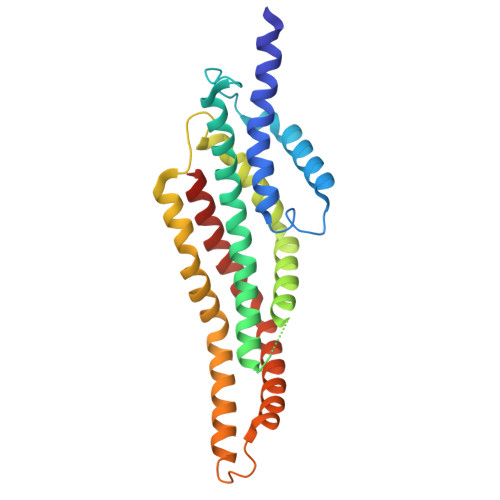

Flagellar biosynthetic protein FliRI [auth 8]260Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0YFV7 (Vibrio alginolyticus)
Explore A0A0H0YFV7
Go to UniProtKB:  A0A0H0YFV7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0YFV7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar basal-body rod protein FlgG262Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0YB44 (Vibrio alginolyticus)
Explore A0A0H0YB44
Go to UniProtKB:  A0A0H0YB44
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0YB44
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar hook protein FlgE437Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0YA78 (Vibrio alginolyticus)
Explore A0A0H0YA78
Go to UniProtKB:  A0A0H0YA78
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0YA78
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar M-ring protein580Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for Q75N27 (Vibrio alginolyticus)
Explore Q75N27
Go to UniProtKB:  Q75N27
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ75N27
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

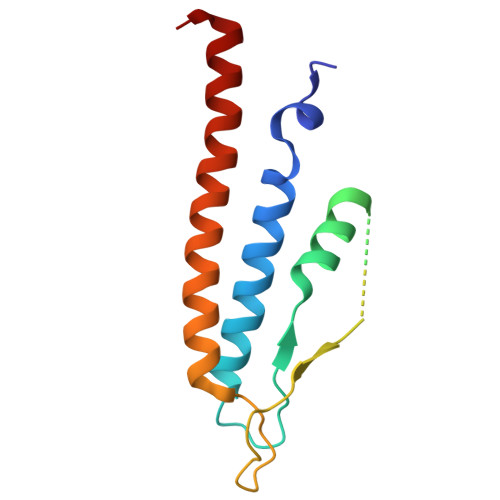

Flagellar basal body rod protein FlgBOC [auth b],
PC [auth c],
QC [auth d],
RC [auth e],
SC [auth f]
131Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0G9LZG6 (Vibrio alginolyticus)
Explore A0A0G9LZG6
Go to UniProtKB:  A0A0G9LZG6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0G9LZG6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar basal-body rod protein FlgC137Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0G9LZH2 (Vibrio alginolyticus)
Explore A0A0G9LZH2
Go to UniProtKB:  A0A0G9LZH2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0G9LZH2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar basal-body rod protein FlgFAD [auth n],
BD [auth o],
CD [auth p],
DD [auth q],
ZC [auth m]
249Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0G9M4M9 (Vibrio alginolyticus)
Explore A0A0G9M4M9
Go to UniProtKB:  A0A0G9M4M9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0G9M4M9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

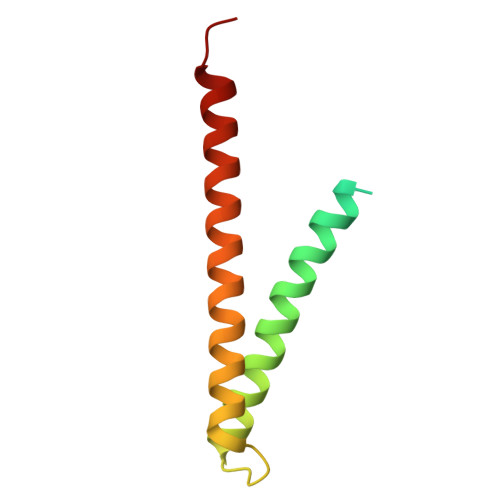

Flagellar hook-basal body complex protein FliE103Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0Y9C1 (Vibrio alginolyticus)
Explore A0A0H0Y9C1
Go to UniProtKB:  A0A0H0Y9C1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0Y9C1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

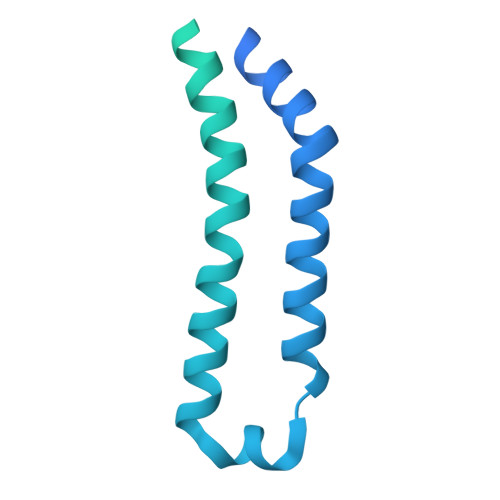

Flagellar biosynthetic protein FlhBKD [auth x]376Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0YB55 (Vibrio alginolyticus)
Explore A0A0H0YB55
Go to UniProtKB:  A0A0H0YB55
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0YB55
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagella basal-body protein377Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for D9N551 (Vibrio alginolyticus)
Explore D9N551
Go to UniProtKB:  D9N551
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupD9N551
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage
Flagellar assembly lipoprotein FlgP143Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for A0A0H0Y943 (Vibrio alginolyticus)
Explore A0A0H0Y943
Go to UniProtKB:  A0A0H0Y943
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0H0Y943
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Find similar proteins by:|  3D Structure
Find similar proteins by:|  3D Structure
Entity ID: 18
MoleculeChains  Sequence LengthOrganismDetailsImage
Component of sodium-driven polar flagellar motor293Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for P74944 (Vibrio alginolyticus)
Explore P74944
Go to UniProtKB:  P74944
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP74944
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage
Sodium-type flagellar motor component211Vibrio alginolyticusMutation(s): 0
UniProt
Find proteins for Q93R25 (Vibrio alginolyticus)
Explore Q93R25
Go to UniProtKB:  Q93R25
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ93R25
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage
FlgB-DcTK [auth D6],
UK [auth D7],
VK [auth D8],
WK [auth D9]
13Vibrio alginolyticusMutation(s): 0
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 21
MoleculeChains  Sequence LengthOrganismDetailsImage
FliE-helix 117Vibrio alginolyticusMutation(s): 0

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PGT
(Subject of Investigation/LOI)

Query on PGT



Download:Ideal Coordinates CCD File
DN [auth 2],
FN [auth e],
IN [auth t],
LN [auth v]
(1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE
C40 H79 O10 P
KBPVYRBBONZJHF-AMAPPZPBSA-N
XKP
(Subject of Investigation/LOI)

Query on XKP



Download:Ideal Coordinates CCD File
EN [auth e],
GN [auth s],
HN [auth t],
JN [auth u],
KN [auth v]
(11R,14S)-17-amino-14-hydroxy-8,14-dioxo-9,13,15-trioxa-14lambda~5~-phosphaheptadecan-11-yl decanoate
C23 H46 N O8 P
VYUSSAVVRCGYLY-OAQYLSRUSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.22 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China81925024
National Natural Science Foundation of China (NSFC)ChinaU23A20163
Ministry of Science and Technology (MoST, China)China2017YFA0503900

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-22
    Type: Initial release
  • Version 2.0: 2026-03-11
    Type: Coordinate replacement
    Reason: Model completeness
    Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Database references, Derived calculations, Non-polymer description, Structure summary
  • Version 2.1: 2026-05-13
    Changes: Data collection, Database references
