8YYS | pdb_00008yys

Cryo-EM structure of the complex IR with two insulin

PDB DOI: https://doi.org/10.2210/pdb8YYS/pdb
EM Map EMD-39677: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-04-04 Released: 2025-05-21
Deposition Author(s): Xi, Z.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.14 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8YYS

This is version 1.1 of the entry. See complete history.

Literature

Cryo-EM structure of the complex IR with two insulin

Xi, Z.

To be published.

Macromolecule Content

Total Structure Weight: 334.64 kDa
Atom Count: 13,710
Modeled Residue Count: 1,702
Deposited Residue Count: 2,960
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

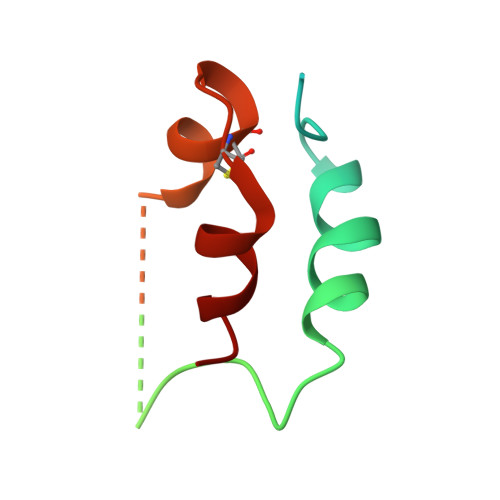

Insulin	A [auth C], B [auth D]	110	Homo sapiens	Mutation(s): 0 Gene Names: INS
UniProt & NIH Common Fund Data Resources
Find proteins for P01308 (Homo sapiens) Explore P01308 Go to UniProtKB: P01308
PHAROS: P01308 GTEx: ENSG00000254647
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P01308
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

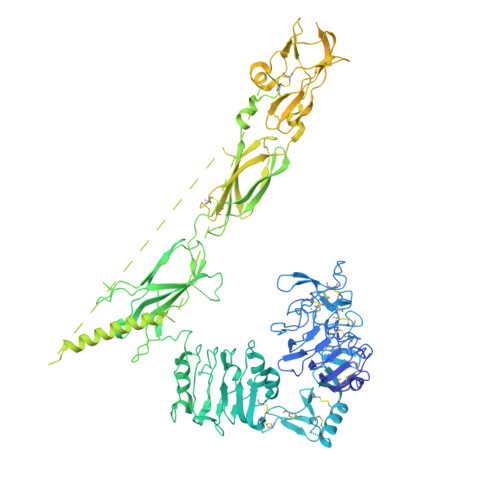

Isoform Short of Insulin receptor	C [auth B], D [auth A]	1,370	Homo sapiens	Mutation(s): 0 Gene Names: INSR EC: 2.7.10.1
UniProt & NIH Common Fund Data Resources
Find proteins for P06213 (Homo sapiens) Explore P06213 Go to UniProtKB: P06213
PHAROS: P06213 GTEx: ENSG00000171105
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P06213
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.14 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-05-21

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-05-21
Type: Initial release
Version 1.1: 2026-02-04
Changes: Data collection, Structure summary
