8UGZ | pdb_00008ugz

Crystal structure of Shewanella benthica Group 1 truncated hemoglobin C51S C71S variant


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.176 (DCC)
  • R-Value Observed:
    0.178 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 8UGZ

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

Heme d formation in a Shewanella benthica hemoglobin.

Martinez Grundman, J.E.Schultz, T.D.Schlessman, J.L.Liu, K.Johnson, E.A.Lecomte, J.T.J.

(2024) J Inorg Biochem 259: 112654-112654

  • DOI: https://doi.org/10.1016/j.jinorgbio.2024.112654
  • Primary Citation Related Structures:
    8UGZ, 8VSH, 8W3A

  • PubMed Abstract:

    In our continued investigations of microbial globins, we solved the structure of a truncated hemoglobin from Shewanella benthica, an obligate psychropiezophilic bacterium. The distal side of the heme active site is lined mostly with hydrophobic residues, with the exception of a tyrosine, Tyr34 (CD1) and a histidine, His24 (B13). We found that purified SbHbN, when crystallized in the ferric form with polyethylene glycol as precipitant, turned into a green color over weeks. The electron density obtained from the green crystals accommodated a trans heme d, a chlorin-type derivative featuring a γ-spirolactone and a vicinal hydroxyl group on a pyrroline ring. In solution, exposure of the protein to one equivalent of hydrogen peroxide resulted in a similar green color change, but caused by the formation of multiple products. These were oxidation species released on protein denaturation, likely including heme d, and a species with heme covalently attached to the polypeptide. The Tyr34Phe replacement prevented the formation of both heme d and the covalent linkage. The ready modification of heme b by SbHbN expands the range of chemistries supported by the globin fold and offers a route to a novel heme cofactor.


  • Organizational Affiliation
    • T.C. Jenkins Department of Biophysics, Johns Hopkins University, Baltimore, MD 21218, USA.

Macromolecule Content

  • Total Structure Weight: 53.92 kDa
  • Atom Count: 4,381
  • Modeled Residue Count: 464
  • Deposited Residue Count: 464
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

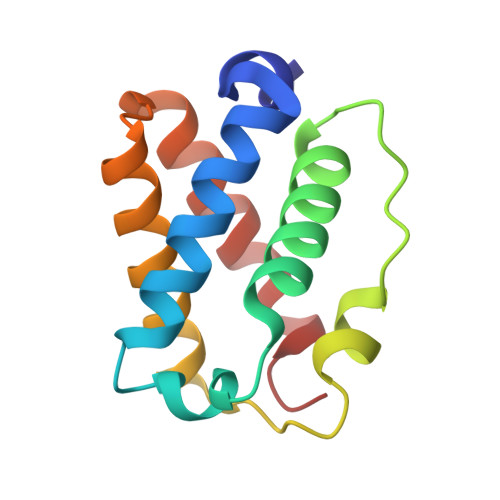

Group 1 truncated hemoglobin
A, B, C, D
116Shewanella benthica KT99Mutation(s): 2
Gene Names: KT99_16901
UniProt
Find proteins for A9DF82 (Shewanella benthica KT99)
Explore A9DF82
Go to UniProtKB:  A9DF82
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA9DF82
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HEM

Query on HEM



Download:Ideal Coordinates CCD File
E [auth A],
G [auth B],
I [auth C],
K [auth D]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
CYN

Query on CYN



Download:Ideal Coordinates CCD File
F [auth A],
H [auth B],
J [auth C],
L [auth D]
CYANIDE ION
C N
XFXPMWWXUTWYJX-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.210 (Depositor), 0.212 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.176 (DCC)
  • R-Value Observed: 0.178 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 27.486α = 90
b = 105.058β = 90
c = 151.118γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
CrysalisProdata scaling
PHASERphasing
CrysalisProdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Science Foundation (NSF, United States)United StatesMCB-1330488
National Science Foundation (NSF, United States)United StatesCHE-2003950
National Science Foundation (NSF, United States)United StatesGRFP-1746891

Revision History  (Full details and data files)

  • Version 1.0: 2024-04-03
    Type: Initial release
  • Version 1.1: 2024-07-17
    Changes: Database references
